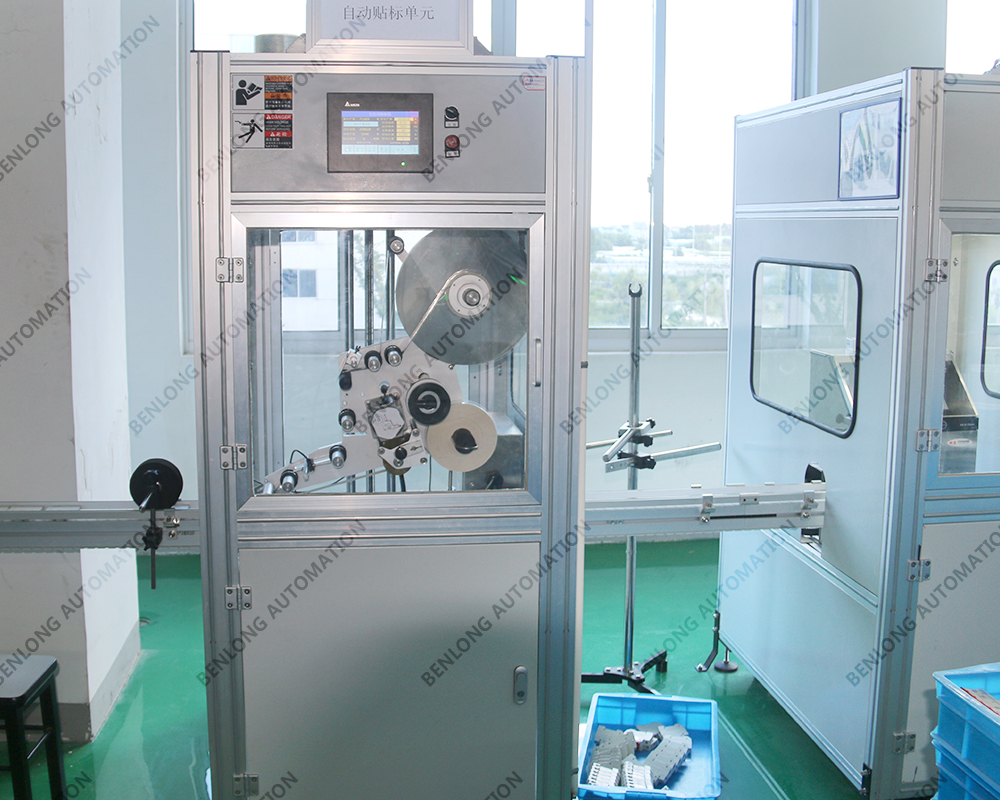

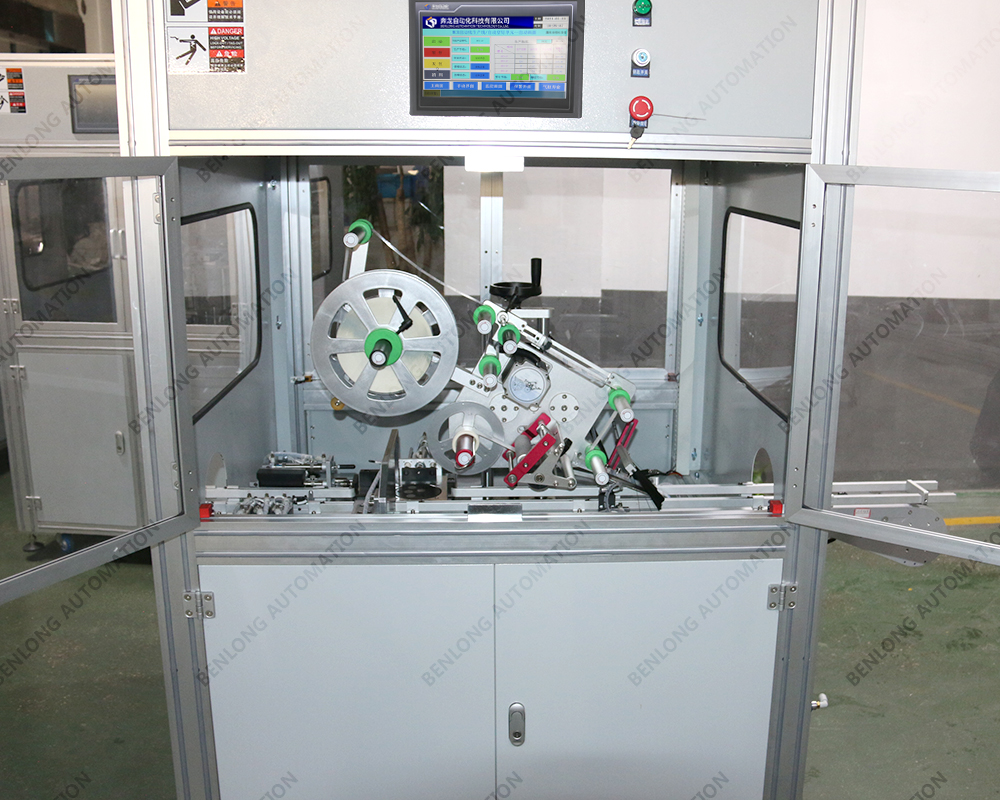

MCB automatic labeling equipment

Short Description:

Automatic positioning: The device can accurately position the miniature circuit breaker, ensuring the precise fitting position of the label. It can detect the position of the miniature circuit breaker through sensors or visual systems, and automatically adjust the position of the label fitting.
Automatic labeling: The device can automatically attach the label to the shell of the miniature circuit breaker by attaching the label to the component. It can use glue, hot melt adhesive, or other suitable adhesives to ensure that the label is firmly attached to the miniature circuit breaker.
High speed machining: The equipment has the ability to perform high-speed machining and can complete a large number of labeling tasks in a short period of time. It can improve work efficiency and production speed through automated labeling mechanisms and control systems.
Label recognition: The device can recognize and detect labels through sensors or visual systems. It can detect the quality, positional accuracy, and fit of labels, and issue timely warnings or prompts to ensure the quality and accuracy of labels.
Data management and traceability: Equipment can record and store data for each labeling operation, including labeling time, quantity, and quality information. These data can be used for production management and traceability, helping enterprises achieve quality management and efficiency improvement.

Send email to us

Photograph

Parameters

Video

Previous: Dual electric automatic transfer switch automatic voltage withstand testing equipment

Next: MCB automatic labeling and sealing equipment

1. Equipment input voltage 220V/380V ± 10%, 50Hz; ± 1Hz;
2. Device compatible poles: 1P, 2P, 3P, 4P, 5P
3. Equipment production rhythm: 1 second per pole, 1.2 seconds per pole, 1.5 seconds per pole, 2 seconds per pole, and 3 seconds per pole; Five different specifications of equipment.
4. For the same shell frame product, different pole numbers can be switched with one click or scanned; Different shell frame products require manual replacement of molds or fixtures.
5. The equipment fixtures can be customized according to the product model.
6. The label is in the roll material state, and the labeling content can be changed at will.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
10. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
11. Having independent and independent intellectual property rights.
