MCB Automatic Circulating Cooling Equipment

Short Description:

Automatic temperature control: the equipment is equipped with the function of automatic temperature control and adjustment to ensure that the miniature circuit breaker works within the appropriate temperature range. Temperature sensors and thermostats can be used for monitoring and control.

Circulation cooling: The equipment is able to circulate the cooling medium (e.g. water or fan) to the vicinity of the miniature circuit breakers through circulation pumps or other means to cool them. The flow and speed of the cooling medium can be adjusted as needed to ensure effective heat dissipation.

Automatic monitoring: the equipment can automatically monitor the temperature and cooling effect of the miniature circuit breaker and provide real-time feedback to the control system. If excessive temperature conditions are found, the equipment can automatically alarm or take appropriate measures to protect the equipment and prevent failure.

Safety protection: the equipment is equipped with safety protection functions, such as overheating protection, current protection, etc., in order to avoid accidents and damages.

Automatic adjustment: the equipment can automatically adjust the cooling effect according to different working conditions and requirements, so as to ensure that the miniature circuit breaker can maintain a stable temperature under various working environments.


See More>>

Photograph

Parameters

Video

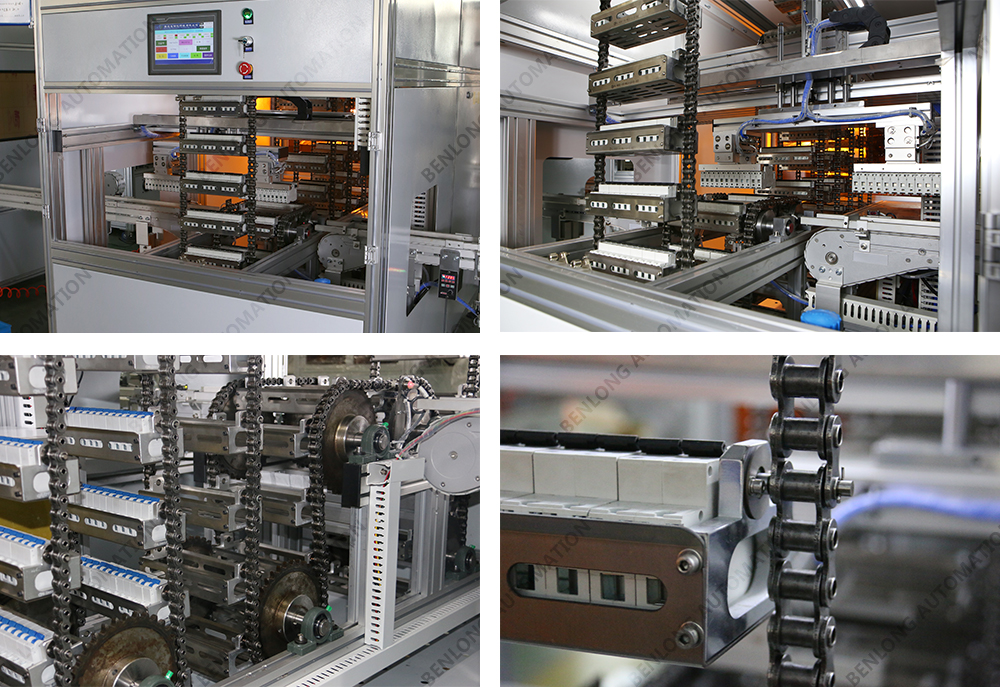

A (1)

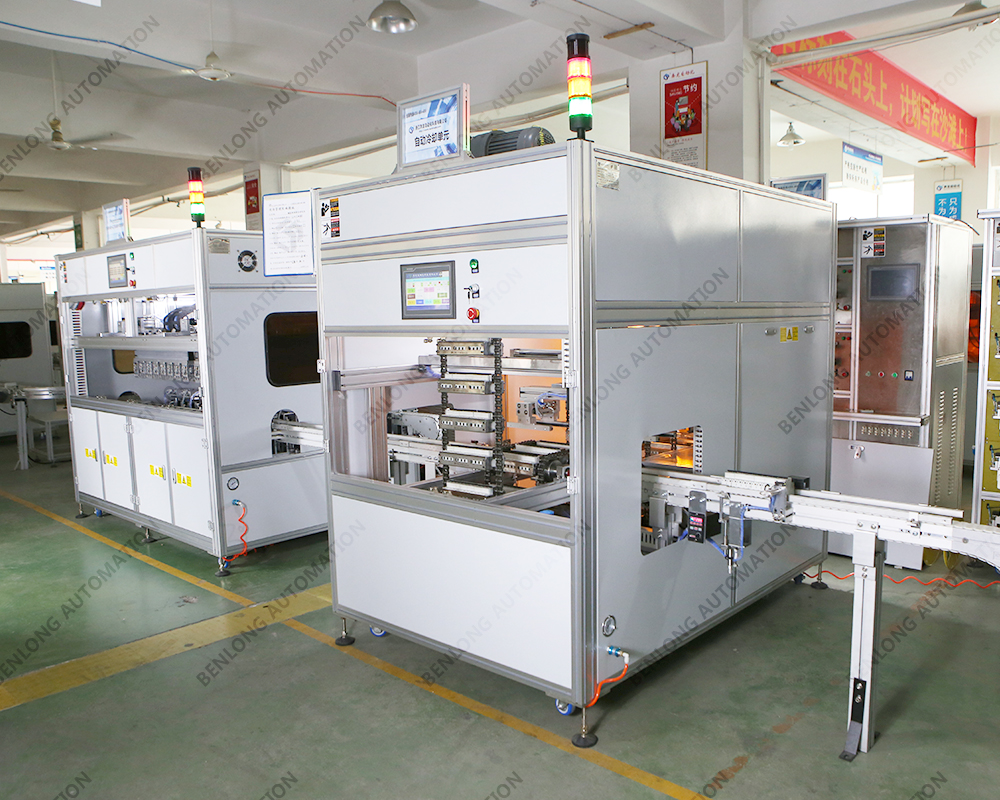

A (2)

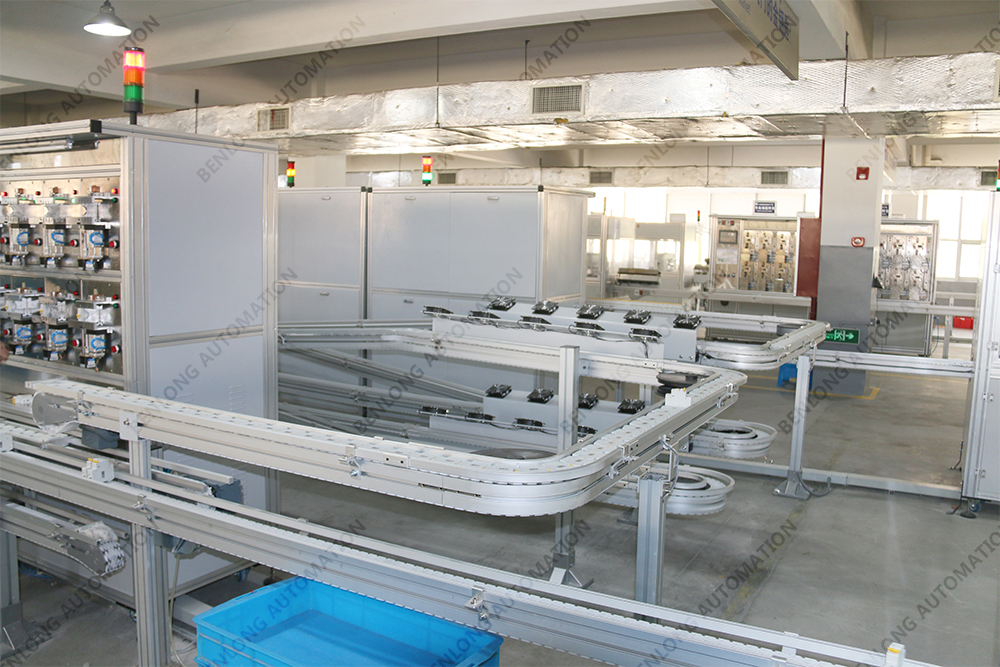

B (1)

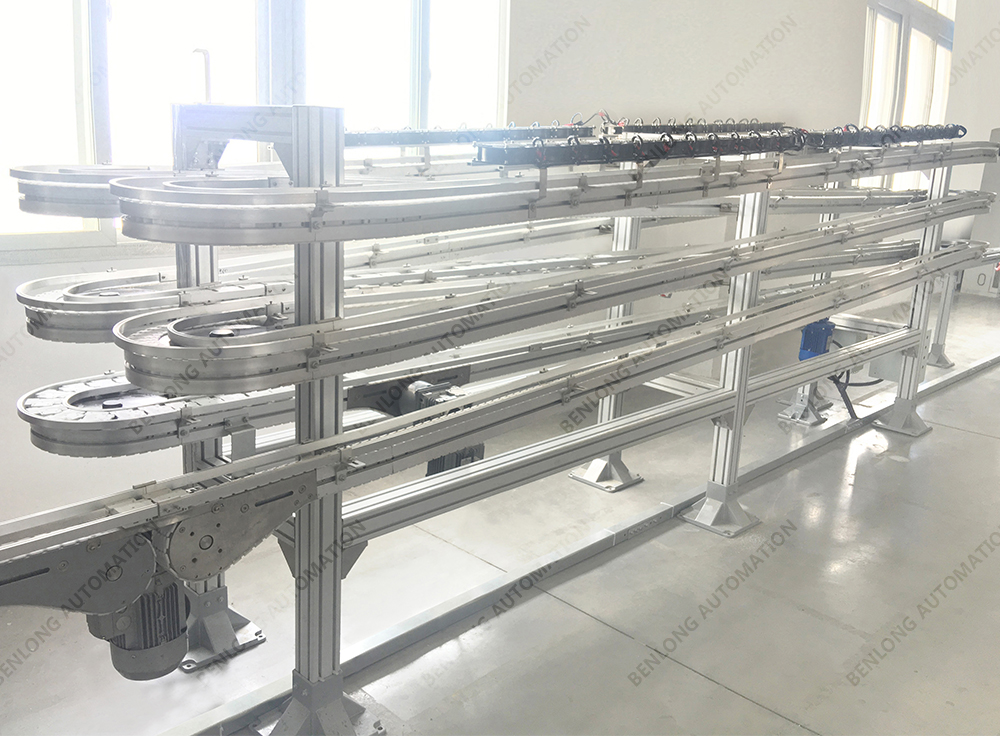

B (2)

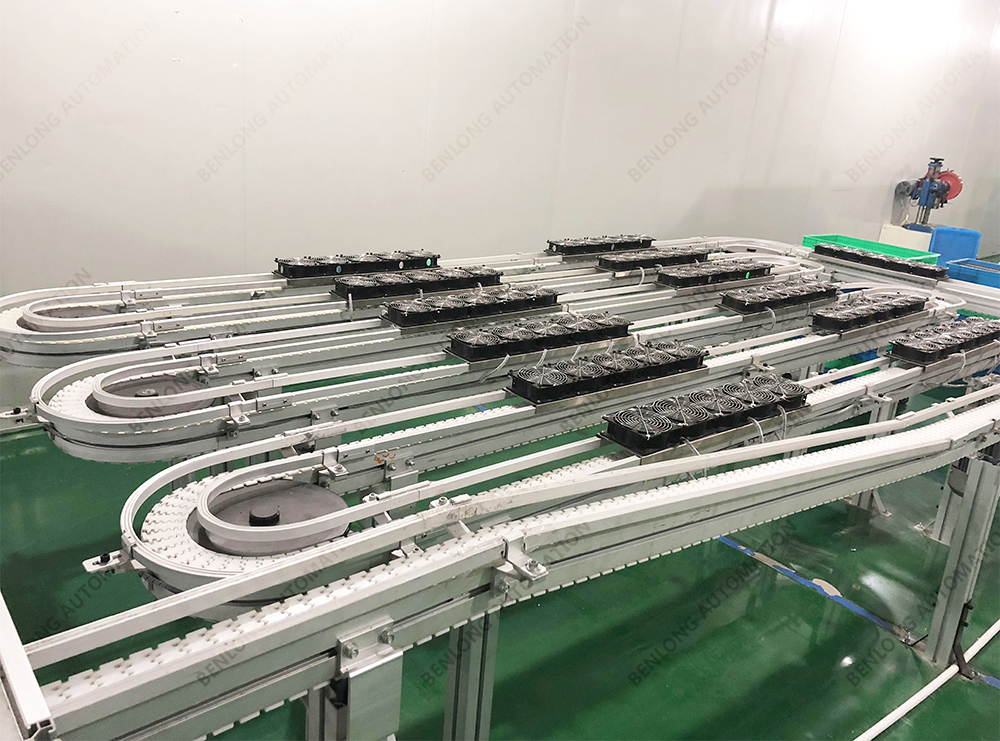

C (1)


  • Previous:
  • Next:

  • 1, equipment input voltage 220V ± 10%, 50Hz; ± 1Hz;
    2, equipment compatible poles: 1P, 2P, 3P, 4P, 1P + module, 2P + module, 3P + module, 4P + module.
    3, equipment production beat: 1 second / pole, 1.2 seconds / pole, 1.5 seconds / pole, 2 seconds / pole, 3 seconds / pole; five different specifications of equipment.
    4, the same shell frame products, different poles can be switched by one key or sweep code switching; different shell frame products need to manually replace the mold or fixture.
    5, cooling mode: natural air cooling, DC fan, compressed air, air conditioning blowing four optional.
    6, equipment design for the spiral circulation cooling and three-dimensional storage space type circulation cooling two optional.
    7, equipment fixture can be customized according to the product model.
    8、Equipment with fault alarm, pressure monitoring and other alarm display function.
    9, Chinese and English version of the two operating systems.
    10、All core parts are imported from Italy, Sweden, Germany, Japan, the United States, Taiwan and other countries and regions.
    11, the equipment can be optional “intelligent energy analysis and energy saving management system” and “intelligent equipment service big data cloud platform” and other functions.
    12、Independent independent intellectual property rights
