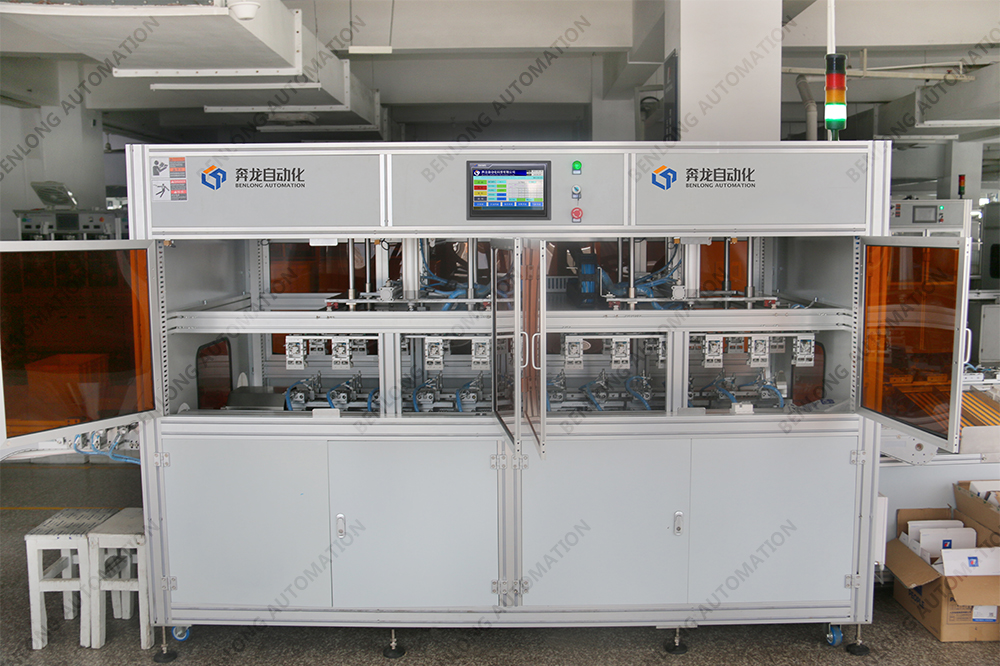

RCBO Leakage circuit breaker automatic leakage detection equipment

Short Description:

Automatic detection: The equipment is capable of automatic leakage detection, detecting the presence of leakage in the circuit by means of sensors, current transmitters or other detection devices. The current value can be monitored in real time, once the leakage problem is detected, the device can respond immediately.

Leakage alarm: the device has a leakage alarm function, when the leakage phenomenon is detected in the circuit, an alarm signal will be issued to remind the operator or relevant personnel to pay attention to the leakage situation and take appropriate safety measures. Alarm mode can be sound alarm, light infrared alarm or text prompts.

Leakage recording and storage: The device can automatically record leakage information, including leakage current value, leakage time, leakage circuit and other related information. Through the recording and storage function, it can provide historical data of leakage, which is convenient for subsequent analysis and processing.

Remote monitoring and control: The device can be networked with other systems or devices to realize remote monitoring and control. Operators can monitor the leakage situation, start and stop the equipment, set parameters and other operations through the remote control interface to realize remote management and control.

Data analysis and report generation: the device can analyze and count the leakage data and generate leakage analysis report. Leakage trends can be displayed through charts, statistics, leakage frequency and other data to help users understand the leakage situation and take timely measures to repair or maintenance.

Safety Protection Function: The device is equipped with safety protection functions, such as over-current protection, overload protection, over-voltage protection and so on. When an abnormal situation occurs in the circuit, the equipment can automatically cut off the power or cut off the power supply to ensure the safety of personnel and equipment.

Send email to us

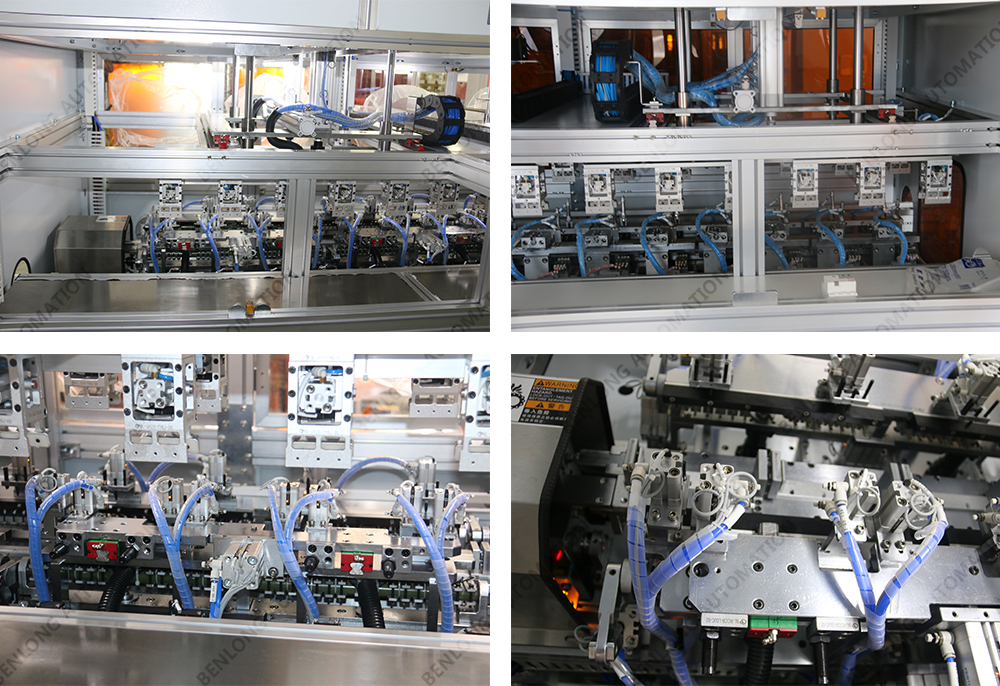

Photograph

Parameters

Video

Previous: RCBO Leakage circuit breaker automatic pad printing equipment

Next: RCBO Leakage circuit breaker automatic assembly equipment

1. Equipment input voltage: 380V ± 10%, 50Hz; ± 1Hz;
2. Device compatible poles: 1P, 2P, 3P, 4P, 1P+module, 2P+module, 3P+module, 4P+module
3. Equipment production rhythm: 1 second per pole, 1.2 seconds per pole, 1.5 seconds per pole, 2 seconds per pole, and 3 seconds per pole; Five different specifications of equipment.
4. The same shelf product can be switched between different poles with one click or scan code switching; Different shell frame products require manual replacement of molds or fixtures.
5. Leakage output range: 0-5000V; The leakage current is 10mA, 20mA, 100mA, and 200mA, which can be selected in different levels.
6. Detection of high-voltage insulation time: The parameters can be set arbitrarily from 1 to 999S.
7. Detection frequency: 1-99 times. The parameter can be set arbitrarily.
8. High voltage detection part: When the product is in a closed state, detect the voltage resistance between phases; When the product is in a closed state, detect the voltage resistance between the phase and the bottom plate; When the product is in a closed state, detect the voltage resistance between the phase and the handle; When the product is in an open state, detect the voltage resistance between the incoming and outgoing lines.
9. Optional for testing when the product is in a horizontal state or when the product is in a vertical state.
10. The equipment has alarm display functions such as fault alarm and pressure monitoring.
11. There are two operating systems available: Chinese and English.
12. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
13. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
14. Having independent and independent intellectual property rights.
