RCBO Leakage circuit breaker automated production line

Short Description:

Automated assembly: the flexible production line is equipped with automated assembly function, which can automatically complete the assembly of earth leakage circuit breakers according to the set program. According to different specifications and models of earth leakage circuit breakers, suitable parts are automatically selected and assembled, realizing efficient and accurate assembly process.

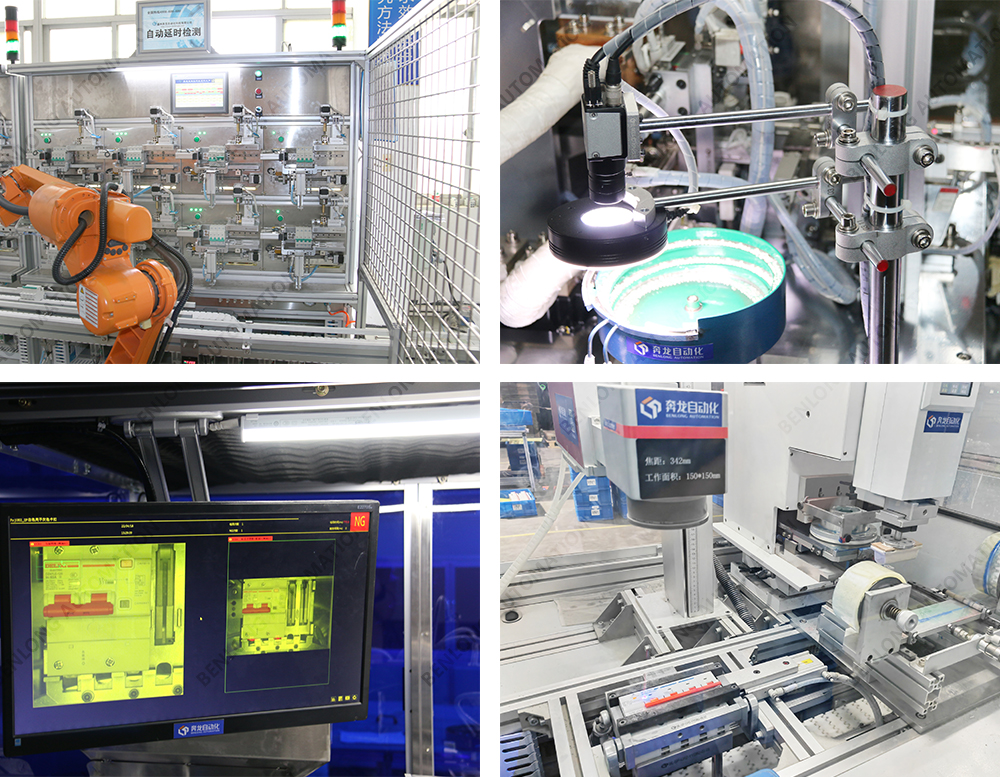

Detection and judgment: The flexible production line is equipped with detection instruments and sensors, which can carry out real-time detection of each link in the assembly process. Detecting and judging the assembly quality, such as checking whether the size, material and connection of the parts are in accordance with the standard specification, ensuring the reliability and safety of the assembly.

Flexible Adjustment: The flexible production line is equipped with automatic adjustment function, which can realize the flexible adjustment of the production line according to the requirements of demand change or product variants. For example, according to different specifications of leakage circuit breakers, the assembly process and parameters are automatically adjusted to meet the production requirements of different products.

Troubleshooting: The flexible production line is equipped with self-diagnosis and troubleshooting function. When an assembly fault occurs, the system can automatically detect and give fault diagnosis tips to assist the operator to carry out troubleshooting and repair, shorten the fault recovery time and improve production efficiency.

Data recording and management: The flexible production line is equipped with data recording and management functions, which can record key parameters and data information in the production process, including assembly time, production quantity, quality indexes and so on. Through data analysis and management, it can realize the optimization and traceability of the production process and provide the basis for production decision-making and quality control.

Send email to us

Photograph

Parameters

Video

Previous: RCBO Leakage circuit breaker automatic assembly equipment

Next: MCCB automatic pad printing, laser marking and inspection equipment

1. Equipment input voltage: 380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility: 1P+N, 2P, 3P+N, 4P, A type, AC type, B type, 18 module or 27 module.
3. Equipment production rhythm: 5 seconds per unit and 10 seconds per unit can be optionally matched.
4. The same shelf product can be switched between different poles with one click or scan code switching; Switching between different shell shelf products requires manual replacement of molds or fixtures.
5. Assembly method: manual assembly and automatic assembly can be selected at will.
6. The equipment fixtures can be customized according to the product model.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
10. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
11. Having independent and independent intellectual property rights.
