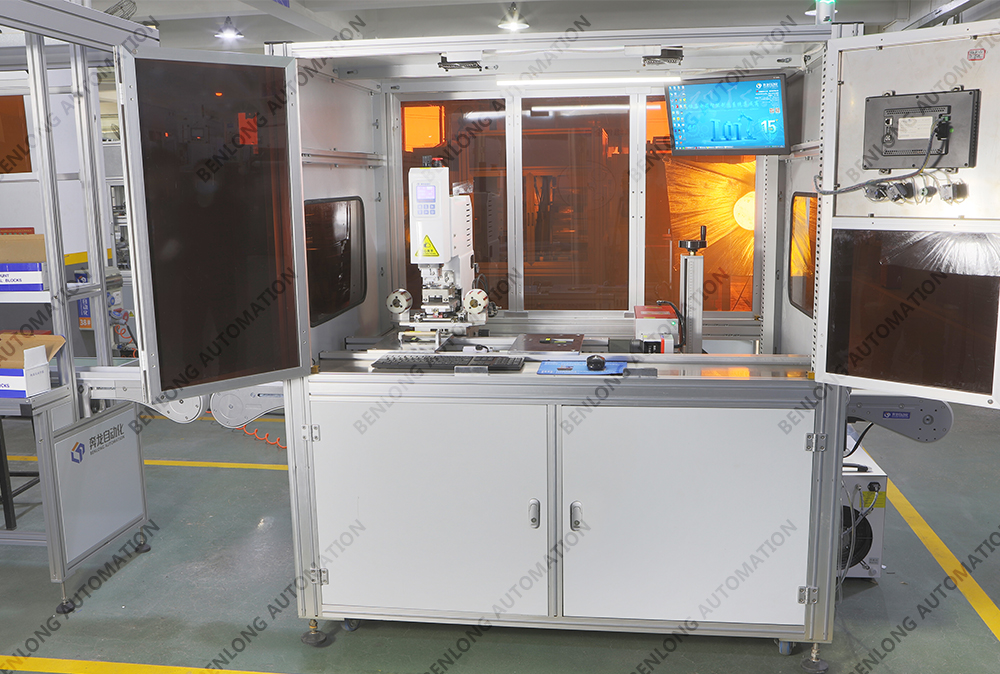

Isolation switch automatic transfer printing and laser marking unit

Short Description:

Automatic transfer printing function: The device can automatically transfer identification information to the isolation switch. By automating the pad printing process, production efficiency can be improved and the clarity and accuracy of markings can be ensured.

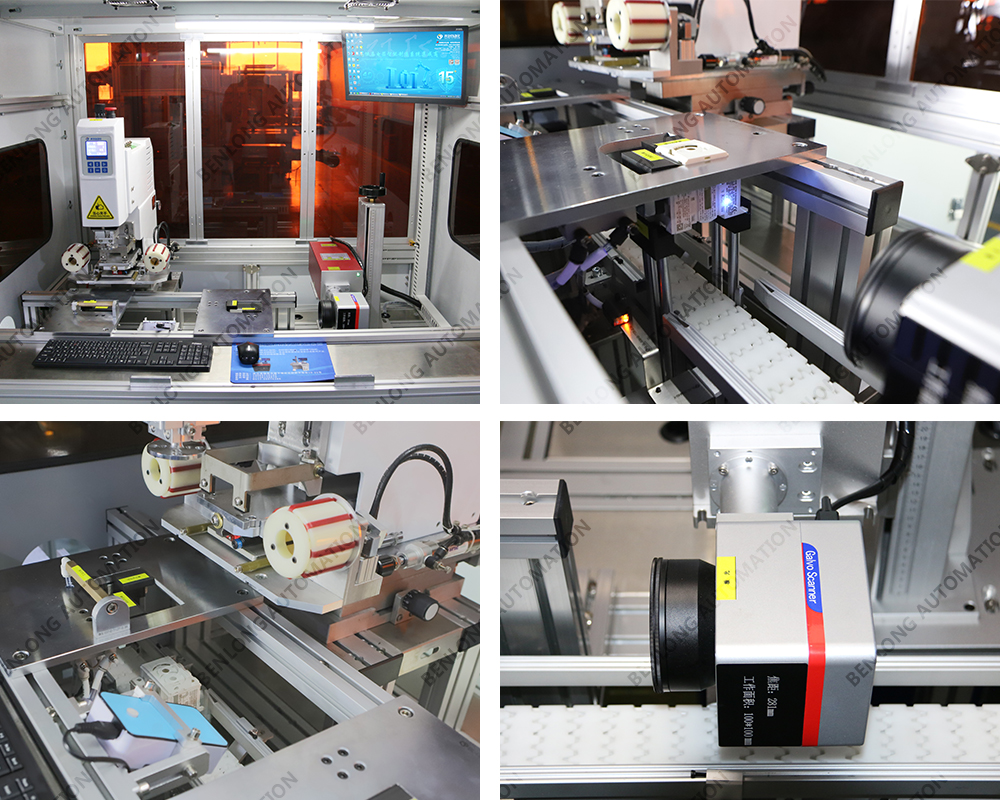

Laser marking function: The equipment is equipped with a laser marking head, which can use laser technology to permanently print identification information onto the isolation switch. Laser marking has the advantages of fast speed, clear identification, and strong durability.
Programmable control: The device has programmable control function and can customize identification information as needed. Users can set and adjust through the device interface or software to achieve personalized identification needs.
Multifunctional operation: The device can perform various operations, such as automatic calibration, automatic alignment, automatic recognition, etc. These functions help improve the accuracy and efficiency of operations.
Image recognition and quality detection: The equipment is equipped with an image recognition system, which can monitor and detect the results of transfer printing and marking in real-time. This helps to ensure the quality and accuracy of the identification.
Data management and recording: The device can manage and record all transfer printing and marking operations, including identification information, time, operator, etc. This helps to track and trace the source, and provides data support related to the production process.

Send email to us

Photograph

Parameters

Video

Previous: 5、MCCB standard long delay detection equipment

Next: UV laser marking equipment

1. Equipment input voltage: 380V ± 10%, 50Hz; ± 1Hz;
2. Equipment automation types: “Semi automatic equipment” and “Fully automatic equipment”.
3. Equipment production rhythm: 3-15 seconds per unit, or customized according to customer production capacity.
4. Device compatibility: Within the same series of products, different specifications of 2-pole, 3-pole, and 4-pole can be switched with one click or scan code.
5. Laser marking parameters: automatic scanning switching parameters.
6. On/off detection: The number and time of detections can be set arbitrarily.
7. High voltage output range: 0-5000V; The leakage current is 10mA, 20mA, 100mA, and 200mA, which can be selected in different levels.
8. Detection of high-voltage insulation time: The parameters can be set arbitrarily from 1 to 999S.
9. High voltage detection part: When the product is in the open state, the voltage resistance between the detection phase and the bottom plate is tested; When the product is in an open state, detect the voltage resistance between the incoming and outgoing lines; When the product is in a closed state, detect the voltage resistance between phases.
10. Optional for testing when the product is in a horizontal state or when the product is in a vertical state.
11. The equipment has alarm display functions such as fault alarm and pressure monitoring.
12. There are two operating systems available: Chinese and English.
13. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
14. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
15. Having independent and independent intellectual property rights
