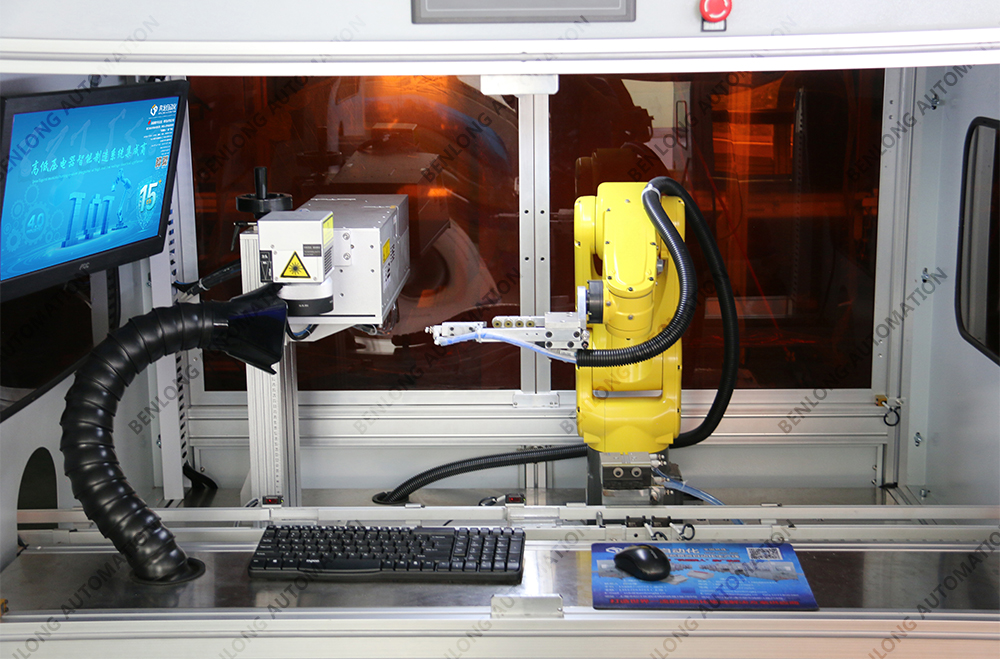

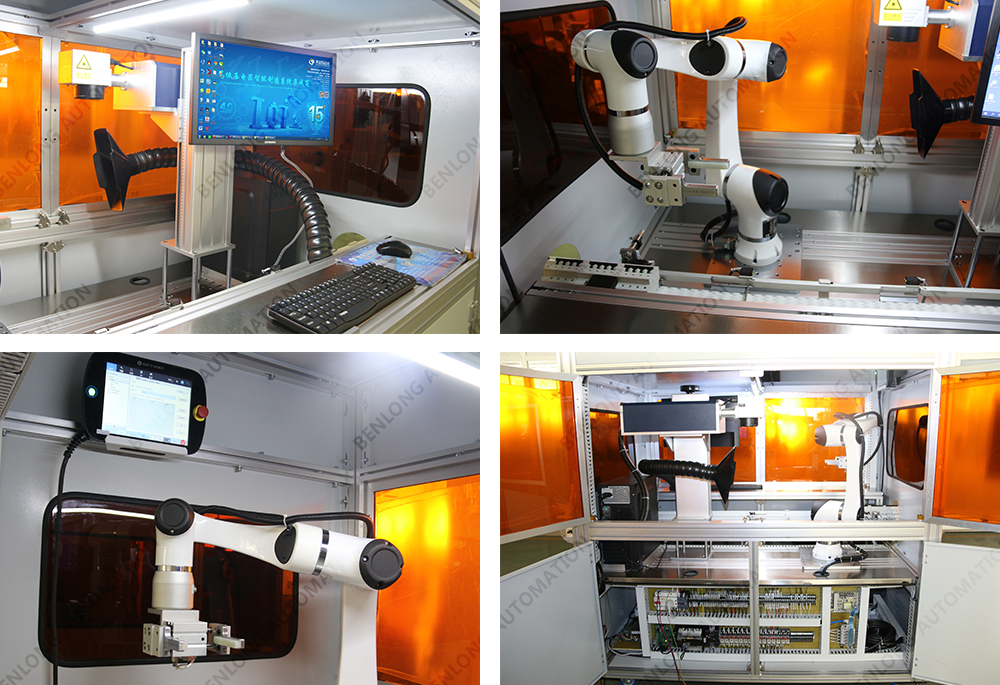

IoT Intelligent Miniature Circuit Breaker Robot + Automatic Laser Marking Equipment

Short Description:

AUTOMATIC POSITIONING: The robot is able to accurately position the miniature circuit breaker to ensure the accuracy and precision of laser marking.

Automatic recognition: the robot has the ability to recognize the miniature circuit breaker and can judge the position and way to be marked.

Automatic laser marking: the robot is equipped with automatic laser marking equipment, capable of marking the required logo or information directly on the miniature circuit breaker, realizing efficient and accurate marking.

Multi-functional marking: laser marking equipment can realize a variety of marking methods, such as text, patterns, serial numbers, etc., to meet different needs.

Automatic switching and adjustment: the robot can automatically switch between different marking modes according to the needs, and also automatically adjust the marking position and depth according to the size and shape of the miniature circuit breaker.

Data recording and statistics: the equipment can record the time, quantity and other relevant data of each miniature circuit breaker marking, and carry out statistics and analysis, which is convenient for the traceability and analysis of production data.

Remote monitoring and management: the robot and marking equipment can be connected through the Internet of Things for remote monitoring and management, the user can monitor the marking process at any time and anywhere, and remote operation and debugging, to improve the convenience and efficiency of production management.

Send email to us

Photograph

Parameters

Video

Previous: IOT intelligent miniature circuit breaker automatic labeling equipment

Next: Internet of Things intelligent miniature circuit breaker automatic pad printing, laser marking equipment

1. Equipment input voltage: 380V ± 10%, 50Hz; ± 1Hz;
2. Device compatible poles: 1P+module, 2P+module, 3P+module, 4P+module.
3. Equipment production rhythm: ≤ 10 seconds per pole.
4. The same shelf product can be switched between different poles with one click or scan code switching; Different shell frame products require manual replacement of molds or fixtures.
5. The detection method for defective products is CCD visual inspection.
6. Laser parameters can be pre stored in the control system for automatic retrieval and marking; The marking content can be edited at will.
7. The equipment is pneumatic finger automatic loading and unloading, and the fixture can be customized according to the product model.
8. The equipment has alarm display functions such as fault alarm and pressure monitoring.
9. There are two operating systems available: Chinese and English.
10. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
11. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
12. Having independent and independent intellectual property rights.
