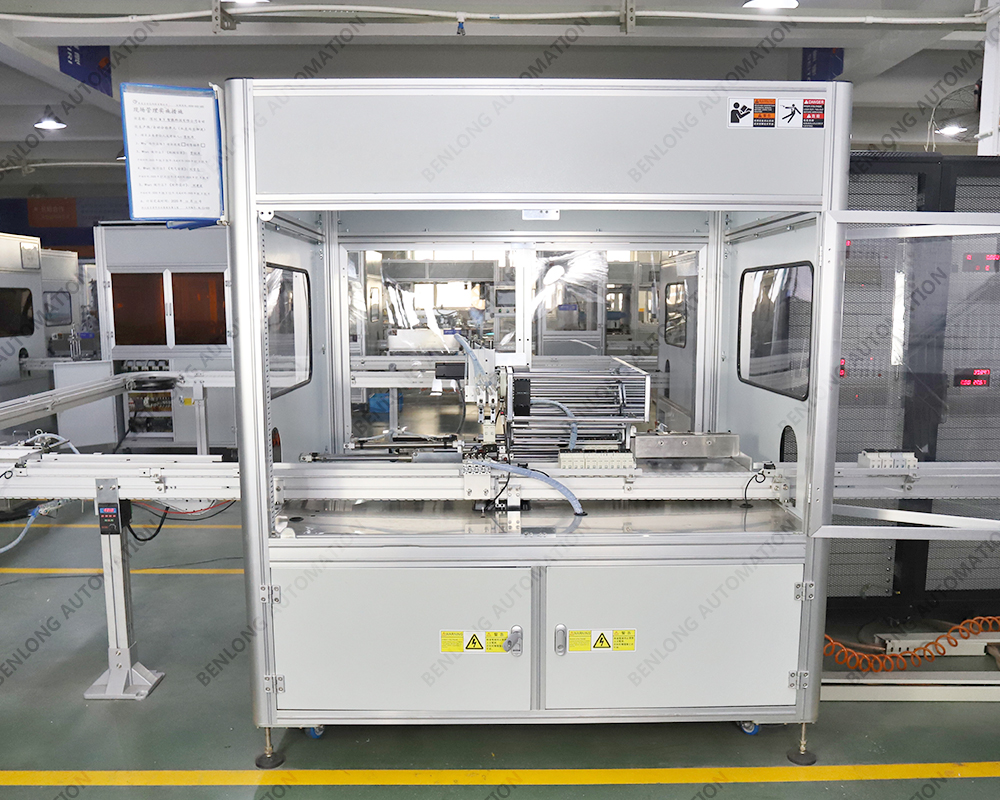

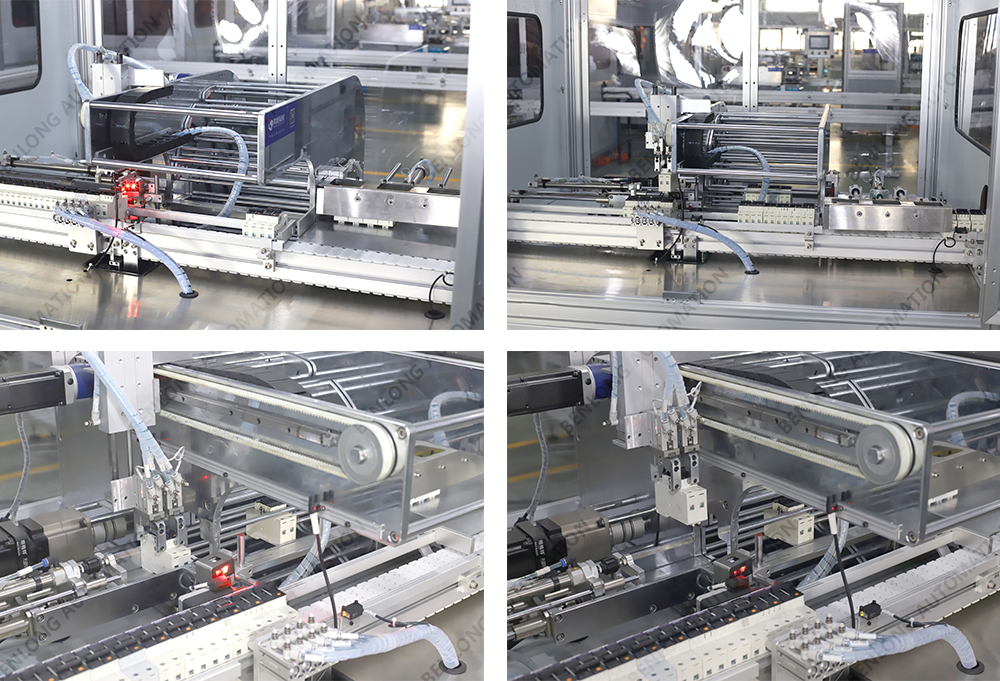

IoT intelligent miniature circuit breaker automatic sorting and storage equipment

Short Description:

Automatic sorting: the equipment can automatically classify, sort and group miniature circuit breakers according to preset rules and requirements, realizing fast and efficient sorting process.

Warehouse management: the equipment can carry out warehouse management for the sorted miniature circuit breakers, including warehousing, warehousing, inventory management, inventory and so on. Through intelligent warehouse management, it can improve the utilization rate of the warehouse and reduce the time and error of manual operation.

Automatic identification and discrimination: The equipment is equipped with an identification and discrimination system, which can automatically identify the characteristics and attributes of miniature circuit breakers and determine their categories, models and specifications. This helps accurate sorting and warehouse management.

Data Acquisition and Analysis: The equipment is capable of real-time acquisition of data in the process of sorting and warehousing management, as well as analysis and statistics. Through data collection and analysis, you can monitor the operating status of the equipment, sorting efficiency, inventory, etc., and identify problems and optimize them in time.

Networking and remote control: the equipment is equipped with networking and remote control functions, and can be remotely monitored and controlled through the Internet. This can realize round-the-clock monitoring and management, and improve the utilization rate and response speed of the equipment.

Fault Alarm and Maintenance: The equipment is equipped with fault alarm and maintenance functions, which can automatically detect faults in the sorting and warehouse management process and provide corresponding alarm information and maintenance guidance. This helps reduce equipment downtime and maintenance costs.

Send email to us

Photograph

Parameters

Video

Previous: Energy Meter External Low Voltage Circuit Breaker Production Line

Next: Internet of Things intelligent miniature circuit breaker automatic aging testing equipment

1. Equipment input voltage: 220V ± 10%, 50Hz; ± 1Hz;
2. Device compatible poles: 1P, 2P, 3P, 4P, 1P+module, 2P+module, 3P+module, 4P+module.
3. Equipment production rhythm: ≤ 10 seconds per pole.
4. The same shelf product can be switched between different poles with one click or scan code switching; Different shell frame products require manual replacement of molds or fixtures.
5. Compatible with product types A, B, C, D, 132 specifications for AC circuit breaker A leakage characteristics, 132 specifications for AC circuit breaker AC leakage characteristics, 132 specifications for AC circuit breaker without leakage characteristics, and 132 specifications for DC circuit breaker without leakage characteristics. A total of ≥ 528 specifications can be selected.
6. The loading and unloading methods of this device include two options: robot or pneumatic finger.
7. The equipment design methods include circular circulation storage and three-dimensional storage location storage, which can be optionally matched.
8. The equipment fixtures can be customized according to the product model.
9. The equipment has alarm display functions such as fault alarm and pressure monitoring.
10. There are two operating systems available: Chinese and English.
11. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
12. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
13. Having independent and independent intellectual property rights.
