IoT Intelligent Miniature Circuit Breaker Automatic Side Pad Printing Equipment

Short Description:

IoT connection: the device is equipped with IoT connection function, which can communicate with other devices or systems through the network to achieve data transmission and interaction.

Miniature Circuit Breaker Management: It can monitor and control the status of miniature circuit breakers in real time, including current, voltage, temperature and other parameters, and transmit the data to the cloud for analysis and management through IoT connection.

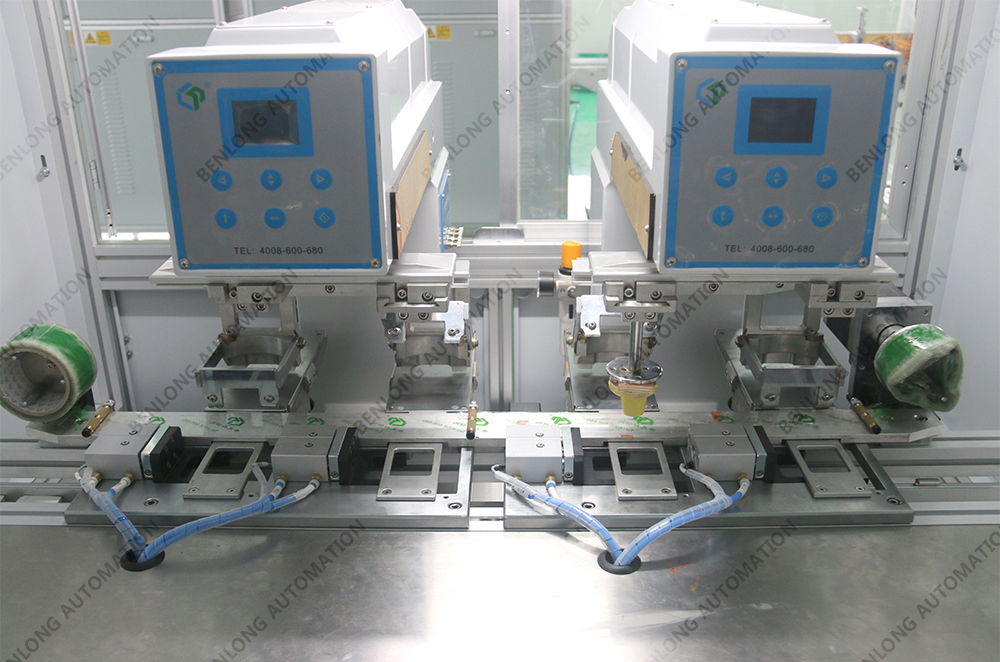

Automatic Side Pad Printing: The device is equipped with a side pad printing function, which can automatically pad print the printed logo or mark onto the side of the miniature circuit breaker through the mechanical structure, realising accurate and efficient printing of the marking information.

Intelligent management and tracking: By connecting with the Internet of Things, it can monitor the working status and production data of the equipment in real time, and provide intelligent management functions, including tracking the production progress, statistics of production data, etc., so as to improve the production efficiency and management level.

Remote control and alarm: the equipment supports remote control function, which can be operated remotely through mobile phone app or other terminals. At the same time, when abnormalities occur, alarms and notifications can be made through IoT connection to deal with the problems in time.

Send email to us

Photograph

Parameters

Video

Previous: IoT Intelligent Miniature Circuit Breaker Automatic Rollover Equipment

Next: IOT intelligent miniature circuit breaker automatic riveting equipment

1. Equipment input voltage; 380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility poles: 1P, 2P, 3P, 4P, 1P+module, 2P+module, 3P+module, 4P+module.
3. Equipment production rhythm: ≤ 10 seconds per pole.
4. The same shelf product can be switched between different poles with just one click or by scanning the code; Different shell products require manual replacement of molds or fixtures.
5. The method of detecting defective products is CCD visual inspection.
6. The transfer machine is an environmentally friendly transfer machine that comes with a cleaning system and X, Y, and Z adjustment mechanisms.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
10. The equipment can be optionally equipped with functions such as the Smart Energy Analysis and Energy Conservation Management System and the Smart Equipment Service Big Data Cloud Platform.
11. Having independent independent intellectual property rights.
