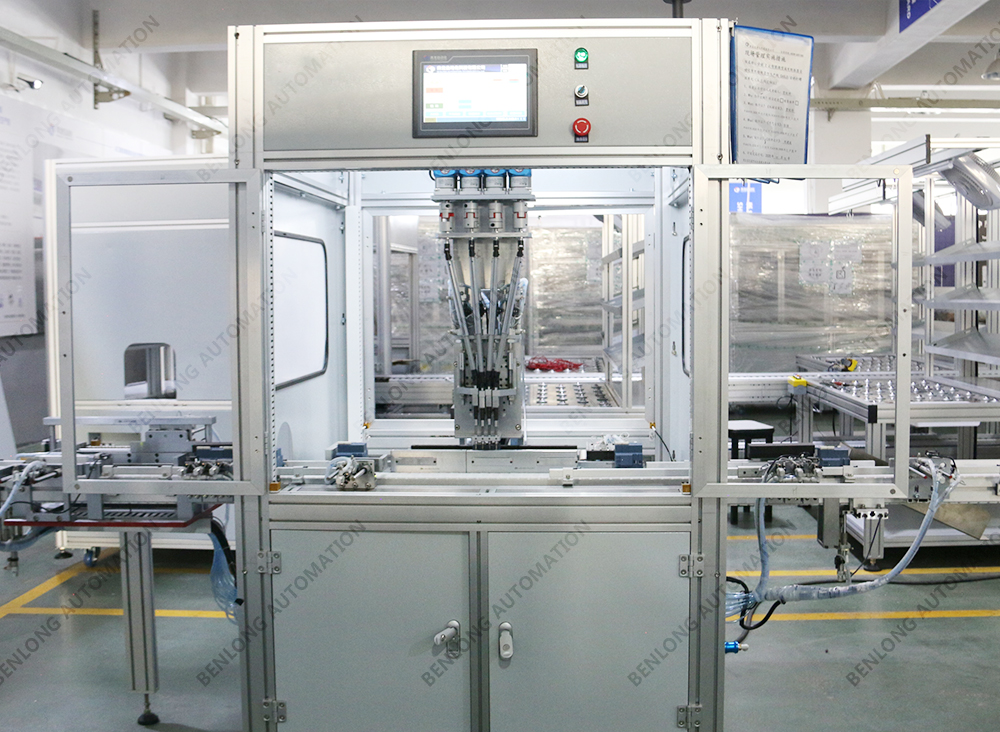

IOT intelligent miniature circuit breaker automatic screw torque testing equipment

Short Description:

Automatic torque detection: The equipment can monitor the installation screw torque of the miniature circuit breaker in real time, and accurately measure the torque amount by means of technology such as sensors or dynamometers.

Torque alarm and calibration: When the detected screw torque exceeds the set range, the equipment can issue an alarm to prompt the operator to make adjustments. At the same time, the equipment can provide torque calibration function to ensure that each screw is installed according to the correct torque.

Data recording and traceability: The device can record the installation torque data of each breaker and connect with the IoT platform to upload the data to the cloud. Through the app, operators can view and trace the installation history and torque data of each breaker at any time.

Remote monitoring and control: With IoT technology, operators can monitor and control equipment through remote devices such as mobile phones or computers. For example, equipment operating parameters can be adjusted remotely, real-time torque data can be viewed, or alarms can be handled.

Failure diagnosis and early warning: The equipment can analyse the torque data to determine whether there is any abnormal situation, and send failure warning through the IoT platform to remind the operator to carry out maintenance or replacement in a timely manner.

Send email to us

Photograph

Parameters

Video

Previous: Internet of Things intelligent miniature circuit breaker automatic delay detection equipment

Next: Internet of Things intelligent miniature circuit breaker automatic withstand voltage testing equipment

1. Equipment input voltage: 220V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility poles: 1P, 2P, 3P, 4P, 1P+module, 2P+module, 3P+module, 4P+module.
3. Equipment production rhythm: ≤ 10 seconds per pole.
4. The same shelf product can be switched between different poles with just one click or by scanning the code; Different shell products require manual replacement of molds or fixtures.
5. Torque method: servo motor and torque electric screwdriver can be optionally matched.
6. The equipment fixtures can be customized according to the product model.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
10. The equipment can be optionally equipped with functions such as the Smart Energy Analysis and Energy Conservation Management System and the Smart Equipment Service Big Data Cloud Platform.
11. Having independent independent intellectual property rights.
