IOT intelligent miniature circuit breaker automatic riveting equipment

Short Description:

Automated riveting: the equipment can automatically complete the riveting process of miniature circuit breakers, including positioning, bayonet, riveting and other actions to improve production efficiency and accuracy.

IoT connectivity: the equipment is equipped with IoT connectivity, which allows it to communicate with other equipment or systems over the network to achieve data transmission and coordination.

Production data monitoring and analysis: the equipment can monitor key parameters in the riveting process in real time, such as pressure, time, temperature, etc., and transmit the data to the cloud for analysis and monitoring to optimise the production process and quality control.

Remote operation and monitoring: Through the IoT connection, the equipment can be operated and monitored remotely, including starting and stopping, parameter adjustment, etc., to improve work flexibility and convenience.

Intelligent Diagnosis and Maintenance: With built-in intelligent algorithms and sensors, the equipment can monitor the operating conditions of the equipment in real time, predict and diagnose potential failures, and provide maintenance and repair suggestions to improve equipment reliability and service life.

Quality traceability and management: Through the IoT connection, the riveting process and parameters of each miniature circuit breaker can be tracked and recorded to achieve quality traceability and quality management, and improve product quality and safety.

Send email to us

Photograph

Parameters

Video

Previous: IoT Intelligent Miniature Circuit Breaker Automatic Side Pad Printing Equipment

Next: Internet of Things intelligent miniature circuit breaker automatic piercing and riveting equipment

1. Equipment input voltage; 220V/380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility poles: 1P, 2P, 3P, 4P, 1P+module, 2P+module, 3P+module, 4P+module.
3. Equipment production rhythm: ≤ 10 seconds per pole.
4. The same shelf product can be switched between different poles with just one click or by scanning the code; Different shell products require manual replacement of molds or fixtures.

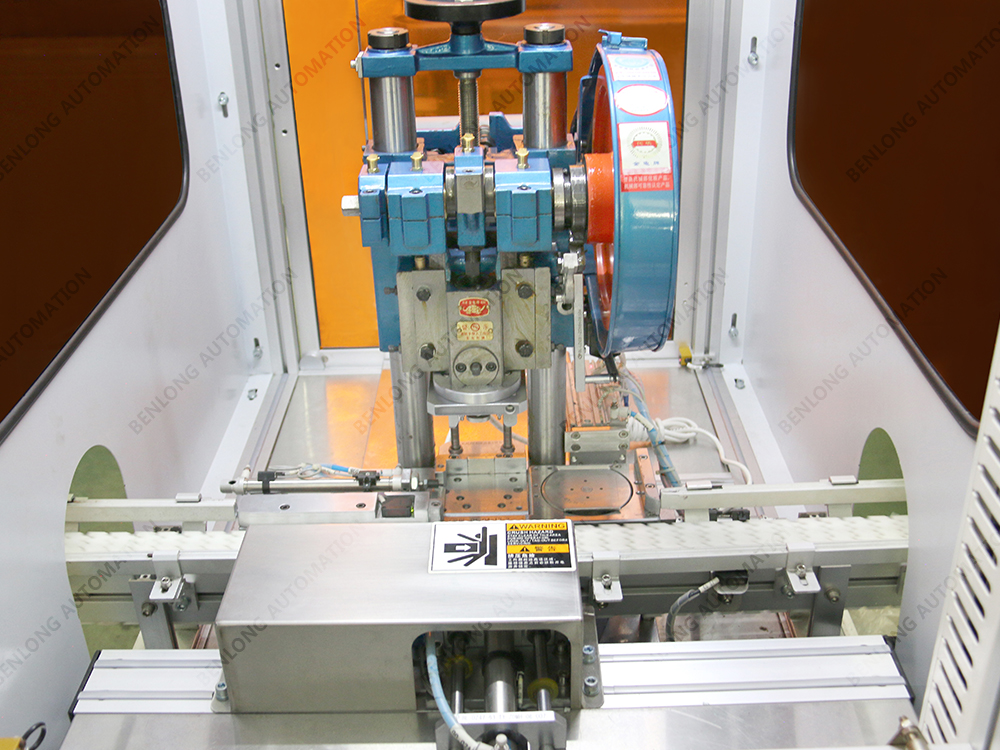

5. There are two optional riveting forms: cam riveting and servo riveting.
6. The riveting speed parameters can be set arbitrarily; The number of rivets and molds can be customized according to the product model.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
10. The equipment can be optionally equipped with functions such as the Smart Energy Analysis and Energy Conservation Management System and the Smart Equipment Service Big Data Cloud Platform.
11. Having independent independent intellectual property rights.
