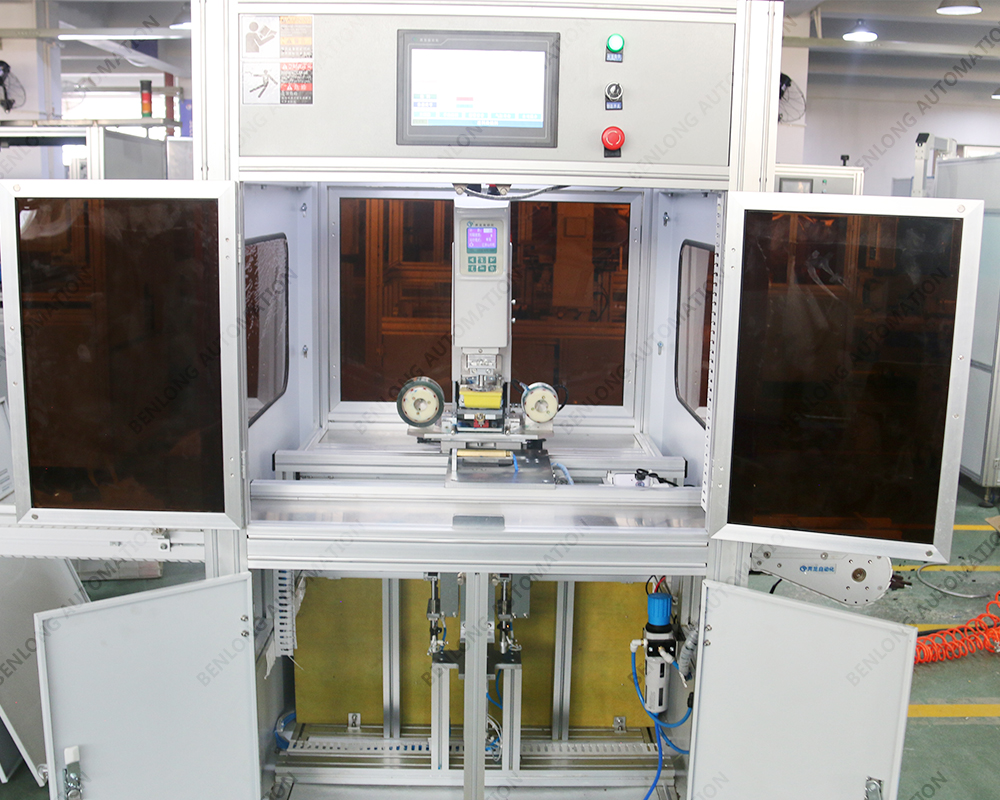

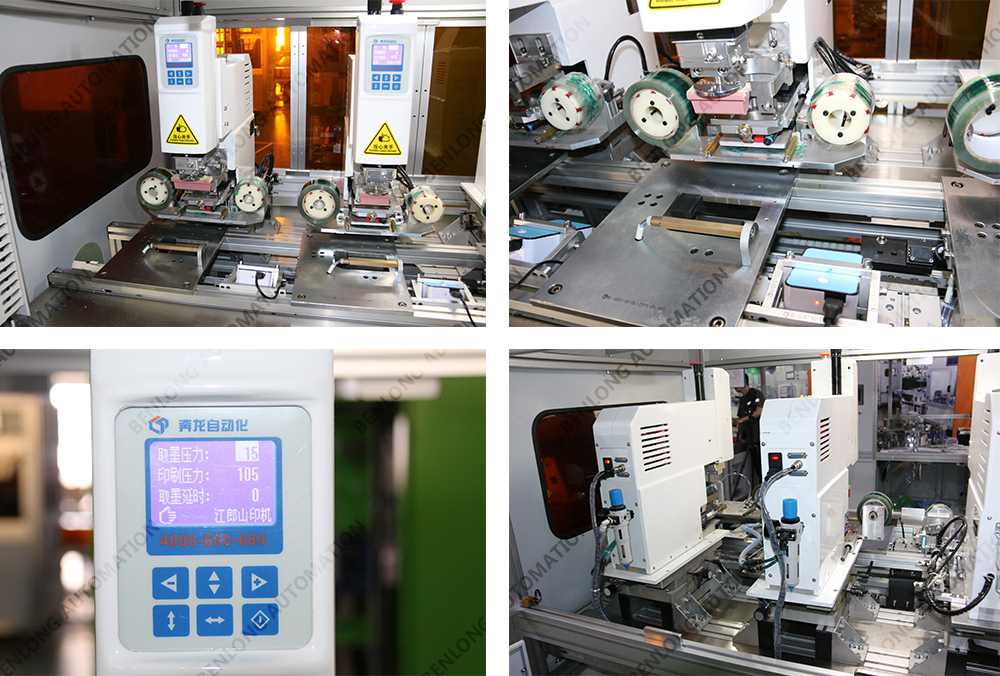

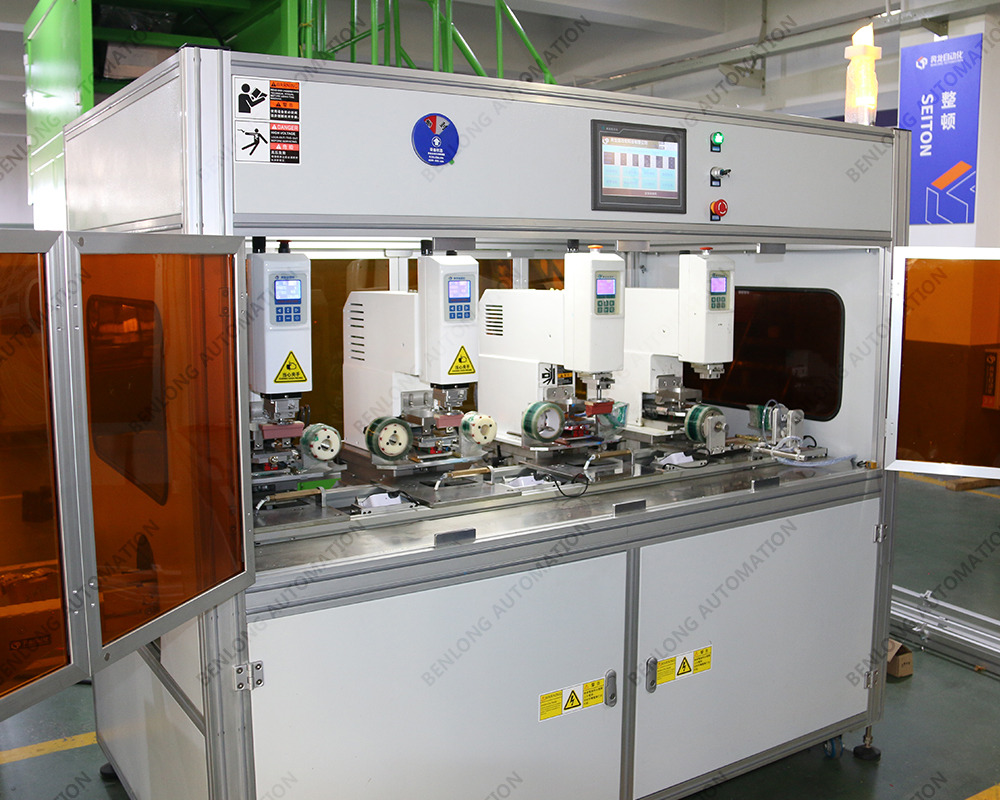

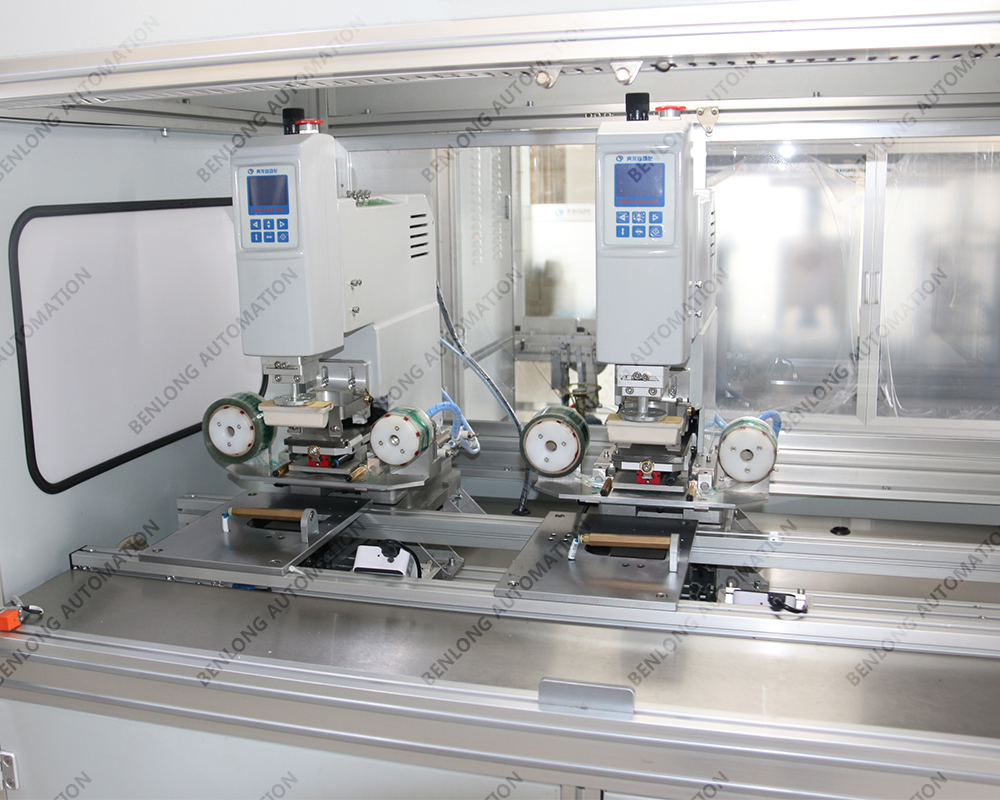

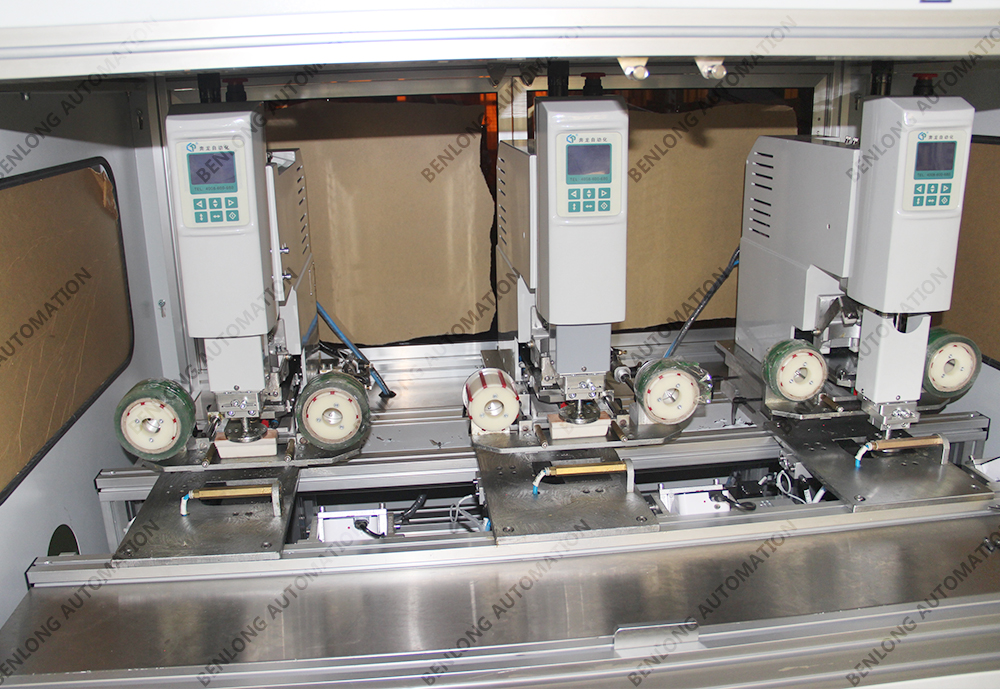

IOT intelligent miniature circuit breaker automatic pad printing equipment

Short Description:

Automatic Identification and Positioning: the equipment can automatically identify the position and direction of the miniature circuit breaker and position it accurately to ensure the accuracy and precision of pad printing.

Pad Printing Function: The equipment is equipped with automatic pad printing function, which can pad print patterns, logos or texts onto the surface of miniature circuit breakers, realizing fast and high-quality pad printing operation.

Color and ink management: the device automatically adjusts the color and consistency of the ink on demand to ensure consistent and quality pad printing results.

Automatic Adjustment and Adaptability: The device can automatically adjust the pad printing position, angle, and strength according to the size and shape of the miniature circuit breaker to adapt to different types of miniature circuit breakers.

Easy operation: the equipment adopts user-friendly interface and control system, which is easy and convenient to operate without excessive technical operation and human intervention.

Diversified pad printing: the equipment can realize a variety of pad printing methods, such as printing, inkjet, spraying, etc., in order to adapt to the different needs of pad printing requirements.

Data recording and statistics: the equipment can record the pad printing time, quantity and other related information of each miniature circuit breaker, and carry out data statistics and analysis, which is convenient for the traceability and analysis of production data.

Remote monitoring and management: The equipment can be remotely monitored and managed through IoT connection, so that the operator can monitor the running status of the equipment, carry out remote debugging and troubleshooting anytime and anywhere.

Send email to us

Photograph

Parameters

Video

Previous: Internet of Things intelligent miniature circuit breaker automatic pad printing, laser marking equipment

Next: Internet of Things intelligent miniature circuit breaker automatic assembly stopper equipment

1. Equipment input voltage: 380V ± 10%, 50Hz; ± 1Hz;
2. Device compatible poles: 1P+module, 2P+module, 3P+module, 4P+module.
3. Equipment production rhythm: ≤ 10 seconds per pole.
4. The same shelf product can be switched between different poles with one click or scan code switching; Different shell frame products require manual replacement of molds or fixtures.
5. The detection method for defective products is CCD visual inspection.
6. The transfer printing machine is an environmentally friendly transfer printing machine that comes with a cleaning system and X, Y, and Z adjustment mechanisms.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
10. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
11. Having independent and independent intellectual property rights.
