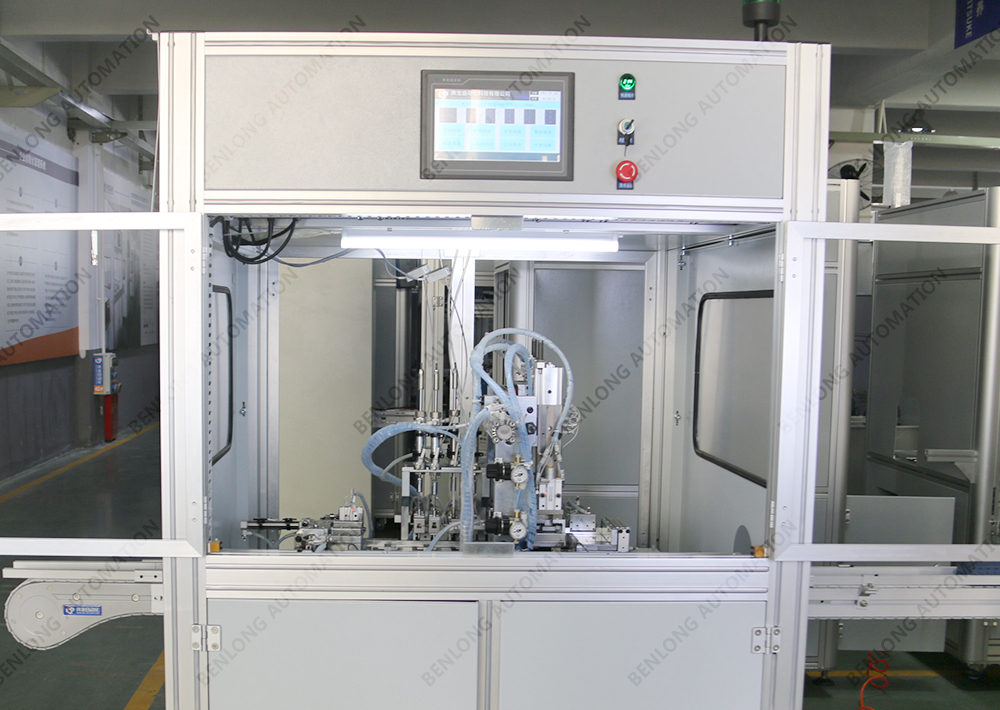

IOT intelligent miniature circuit breaker automatic multi-pole assembling equipment

Short Description:

Automatic identification and sorting: the equipment is able to automatically identify the types and specifications of miniature circuit breakers through image recognition technology, and carry out accurate classification and sorting.

Automatic assembly: the equipment is equipped with automatic assembly function, capable of accurately matching and combining different poles of multiple circuit breakers according to preset rules and sequences.

Automatic fixing: the equipment can automatically carry out the fixing operation of circuit breakers to ensure that the circuit breakers are firmly and reliably installed to avoid loosening or falling off.

Automatic acceptance: the equipment can automatically accept the assembled circuit breakers, including function test, electrical characteristics test, etc., to ensure that the assembled quality meets the standard requirements.

Data Acquisition and Recording: The equipment can collect and record various data in the assembling process, including assembling time, product parameters, operators, etc., providing reference for quality tracing and quality management.

Remote monitoring and control: The equipment is connected through the Internet of Things to realise remote monitoring and control, and operators can remotely check the status of the equipment, adjust the parameters and carry out operations at any time.

Troubleshooting and Alarm: The equipment is equipped with troubleshooting function, once the equipment is found to be faulty or abnormal, it will alarm and provide corresponding troubleshooting information in time, which is convenient for timely processing.

Production data analysis: the equipment is able to analyse and count the data in the assembly process, such as output, yield rate, etc., which provides decision-making basis for production management and optimization.

System integration and interface support: the equipment has the ability of system integration, and can be interfaced with other production equipment or enterprise information systems to achieve the integration of production automation and information technology.

Send email to us

Photograph

Parameters

Video

Previous: IOT intelligent miniature circuit breaker automatic laser marking equipment

Next: IOT intelligent miniature circuit breaker automatic assembly equipment

1. Equipment input voltage; 220V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility poles: 1P, 2P, 3P, 4P, 1P+module, 2P+module, 3P+module, 4P+module.
3. Equipment production rhythm: ≤ 10 seconds per pole.
4. The same shelf product can be switched between different poles with just one click or by scanning the code; Different shell products require manual replacement of molds or fixtures.
5. The detection method for defective products is optional with CCD visual inspection or fiber optic sensor detection.
6. The material supply method for assembled components is vibration disc feeding; Noise ≤ 80 decibels.
7. The equipment fixtures can be customized according to the product model.
8. The equipment has alarm display functions such as fault alarm and pressure monitoring.
9. There are two operating systems available: Chinese and English.
10. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
11. The equipment can be optionally equipped with functions such as the Smart Energy Analysis and Energy Conservation Management System and the Smart Equipment Service Big Data Cloud Platform.
12. Having independent independent intellectual property rights.
