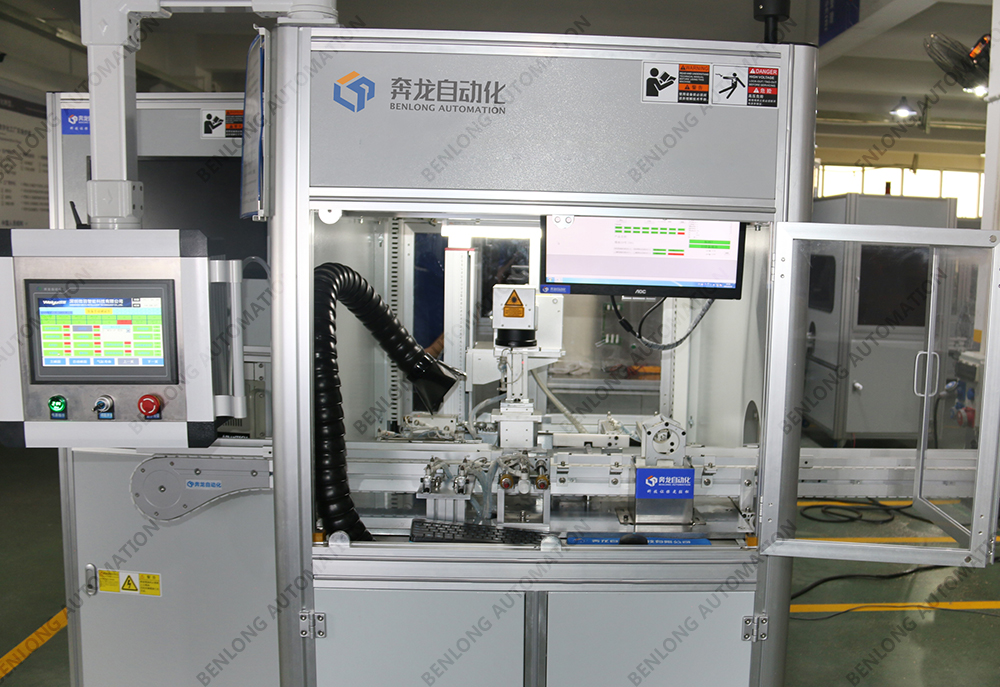

IOT intelligent miniature circuit breaker automatic laser marking equipment

Short Description:

Automatic identification and positioning: the equipment can automatically identify the type and location of miniature circuit breakers and accurately position them through image recognition technology.

Automatic laser marking: the equipment can automatically carry out laser marking operation according to the preset parameters and rules, and apply the required information, identifier number or barcode and other coding methods on the miniature circuit breaker.

Diversified coding methods: the equipment supports a variety of coding methods, including text, numbers, barcode, 2D code, etc., which can be flexibly selected according to requirements.

Customisation of coding content: the equipment can customise the coding content according to the user’s needs, such as product number, batch number, production date, etc., to meet the personalised coding requirements.

Coding quality inspection: the equipment can detect the coding quality after laser marking, including clarity, contrast and other indicators, to ensure that the coding quality meets the standard requirements.

Data collection and management: the equipment can collect and manage data during the laser marking process, including coding time, operator, production batch, etc., to provide support for subsequent traceability and quality management.

Remote monitoring and control: The equipment is connected through the Internet of Things to realise remote monitoring and control, and operators can remotely check the status of the equipment, adjust parameters and carry out operations at any time.

Troubleshooting and Alarm: The equipment is equipped with troubleshooting function, once the equipment is found to be faulty or abnormal, it will alarm and provide corresponding troubleshooting information in time, which is convenient for timely processing.

Send email to us

Photograph

Parameters

Video

Previous: Internet of Things intelligent miniature circuit breaker automatic laser, coding equipment

Next: IOT intelligent miniature circuit breaker automatic multi-pole assembling equipment

1. Equipment input voltage; 220V/380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility poles: 1P, 2P, 3P, 4P, 1P+module, 2P+module, 3P+module, 4P+module.
3. Equipment production rhythm: ≤ 10 seconds per pole.
4. The same shell frame product can be switched with one click for different pole numbers; Different shell products require manual replacement of molds or fixtures.
5. The equipment fixtures can be customized according to the product model.
6. Laser parameters can be pre stored in the control system and automatically retrieved for marking; The QR code parameters for marking can be set arbitrarily, generally ≤ 24 bits.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
10. The equipment can be optionally equipped with functions such as the Smart Energy Analysis and Energy Conservation Management System and the Smart Equipment Service Big Data Cloud Platform.
11. Having independent independent intellectual property rights.
