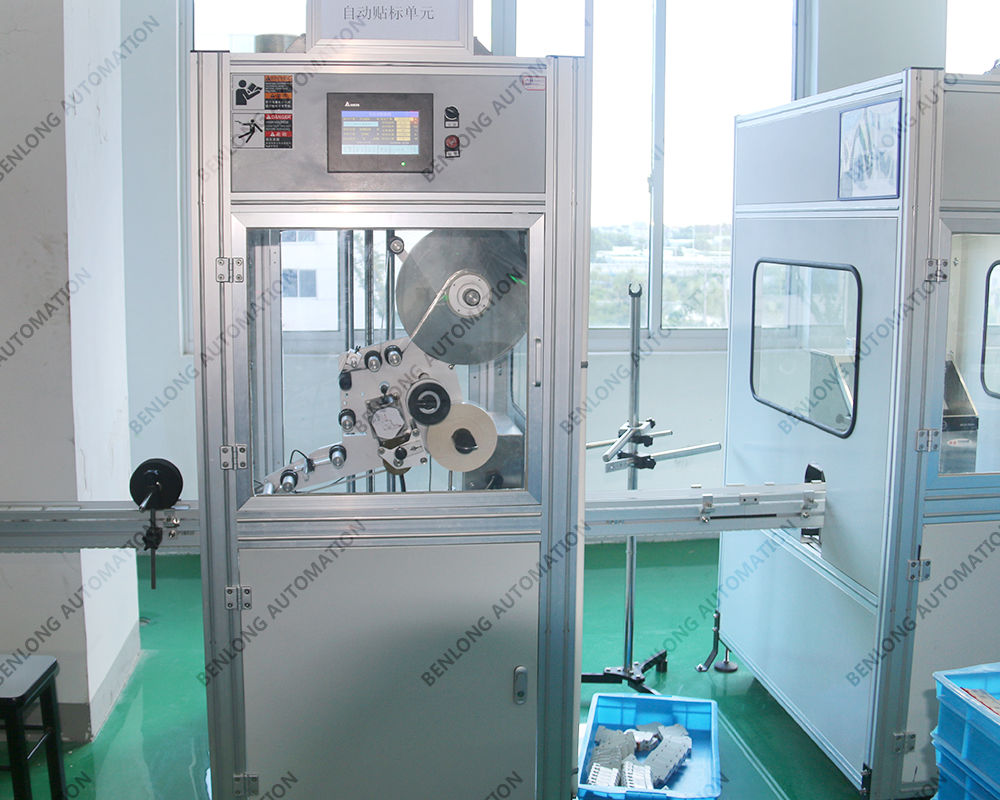

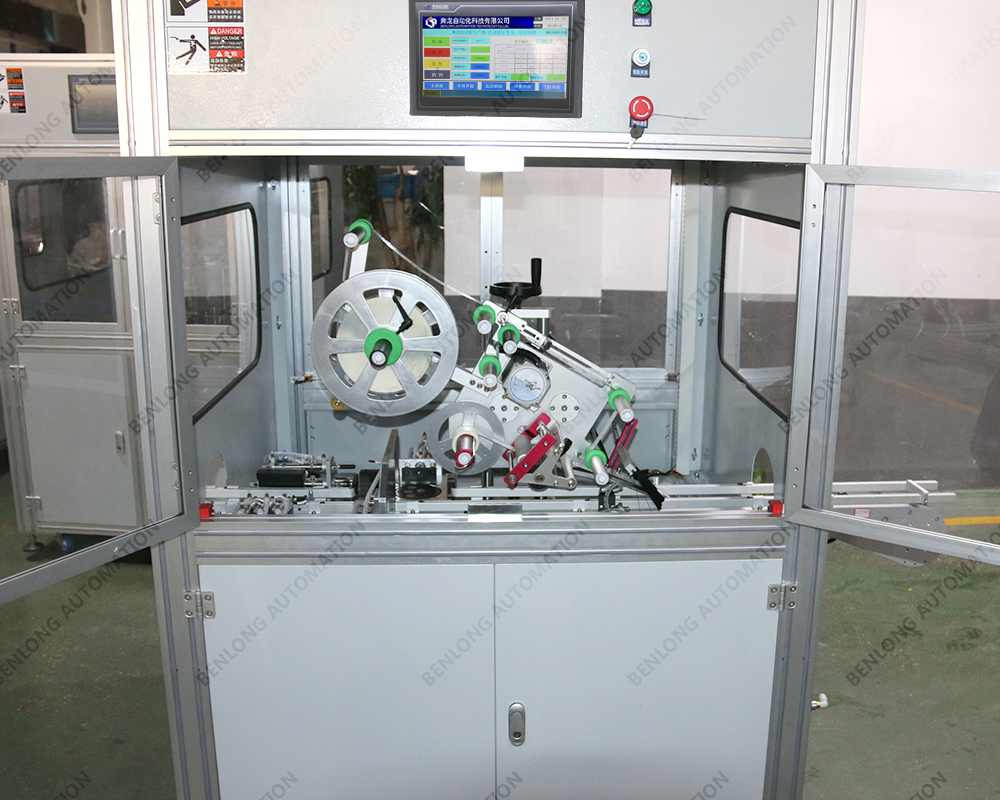

IOT intelligent miniature circuit breaker automatic labeling equipment

Short Description:

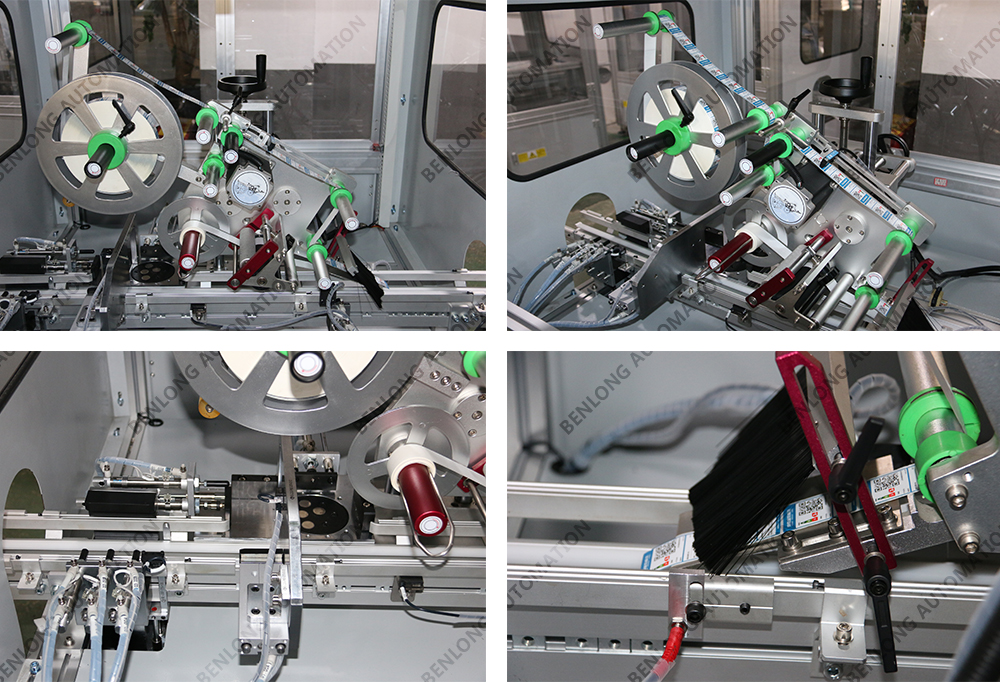

Automatic labeling: the equipment is equipped with automatic labeling function, which can accurately paste the label on the miniature circuit breaker without manual intervention, improving production efficiency and consistency.
Label Recognition and Positioning: The equipment can recognize the information of the label and accurately position it to the specified position on the miniature circuit breaker, ensuring the accuracy and consistency of labeling.

Automatic correction and adjustment: the equipment is equipped with automatic correction and adjustment functions, which can be adapted to different sizes and shapes of miniature circuit breakers to ensure the accuracy and quality of labeling.
Batch management: the equipment can manage different batches of miniature circuit breakers and labeling information to realize batch tracking and management, which is convenient for production management and quality control.

Data recording and statistics: the equipment can record the time, quantity and other relevant data of each miniature circuit breaker labeling, and statistics and analysis, which is convenient for the traceability and analysis of production data.

Remote monitoring and management: the equipment supports remote monitoring and management, users can connect the equipment through the network, real-time monitoring of the labeling process, and remote operation and debugging, improve the convenience and efficiency of production management.

Send email to us

Photograph

Parameters

Video

Previous: Internet of Things intelligent miniature circuit breaker automatic aging testing equipment

Next: IoT Intelligent Miniature Circuit Breaker Robot + Automatic Laser Marking Equipment

1. Equipment input voltage: 220V/380V ± 10%, 50Hz; ± 1Hz;
2. Device compatible poles: 1P+module, 2P+module, 3P+module, 4P+module.
3. Equipment production rhythm: ≤ 10 seconds per pole.
4. For the same shell frame product, different pole numbers can be switched with one click or scanned; Different shell frame products require manual replacement of molds or fixtures.
5. The equipment fixtures can be customized according to the product model.
6. The label is in the roll material state, and the labeling content can be changed at will.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
10. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
11. Having independent and independent intellectual property rights.
