IOT intelligent miniature circuit breaker automatic coding equipment

Short Description:

Automatic identification and positioning: the equipment can automatically identify the type and position of miniature circuit breakers through image recognition technology and position them to ensure the accuracy of nail piercing.

Automatic nail piercing: the equipment can automatically complete the nail piercing operation of miniature circuit breakers, accurately piercing nails according to the preset nail piercing position and quantity, without manual intervention, improving production efficiency.

Parameter setting and adjustment: according to different circuit breaker specifications and requirements, the equipment can set and adjust the parameters of piercing nails, such as the coordinates of piercing nails position, the length and diameter of nails and so on.

Nail piercing quality inspection: the equipment can inspect the quality after piercing nails, including the depth of piercing nails, the degree of bending of nails and other indicators to ensure that the piercing nails meet the standards.

Data collection and analysis: The equipment can collect and analyse data on the piercing process, collect data on the quality of piercing nails, the operating condition of the equipment, etc., and use them for production management and quality control.

Remote monitoring and control: The equipment can be connected through the Internet of Things to realise remote monitoring and control functions, so that operators can understand the running status of the equipment at any time, and carry out remote operation and adjustment.

Troubleshooting and Alarm: The equipment is equipped with troubleshooting function, once the equipment is found to be faulty or abnormal, it will alarm and provide corresponding troubleshooting information in time, which is convenient for timely repair and maintenance.

Send email to us

Photograph

Parameters

Video

Previous: Internet of Things intelligent miniature circuit breaker automatic piercing and riveting equipment

Next: IOT intelligent miniature circuit breaker automatic coding equipment

1. Equipment input voltage; 220V/380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility poles: 1P, 2P, 3P, 4P, 1P+module, 2P+module, 3P+module, 4P+module.
3. Equipment production rhythm: ≤ 10 seconds per pole.
4. The same shelf product can be switched between different poles with just one click or by scanning the code; Different shell products require manual replacement of molds or fixtures.

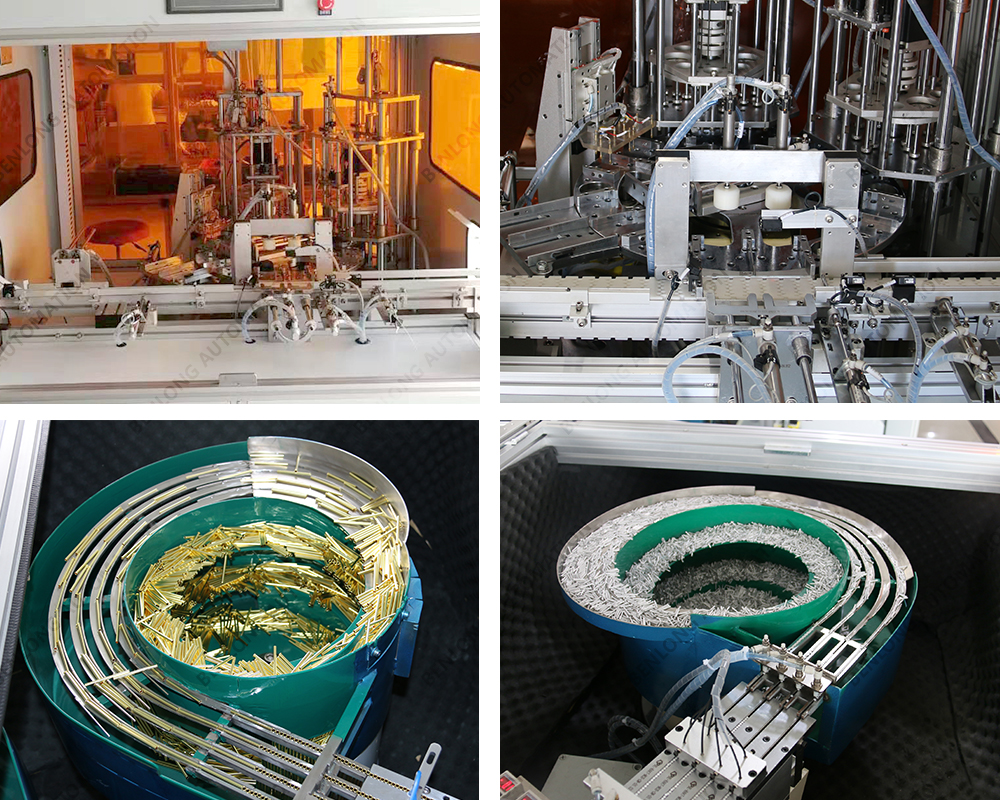

5. The rivet feeding method is vibration disc feeding; Noise ≤ 80 decibels; The number of rivets and molds can be customized according to the product model.
6. The speed and vacuum degree parameters of the nail splitting mechanism can be set arbitrarily.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
10. The equipment can be optionally equipped with functions such as the Smart Energy Analysis and Energy Conservation Management System and the Smart Equipment Service Big Data Cloud Platform.
11. Having independent independent intellectual property rights.
