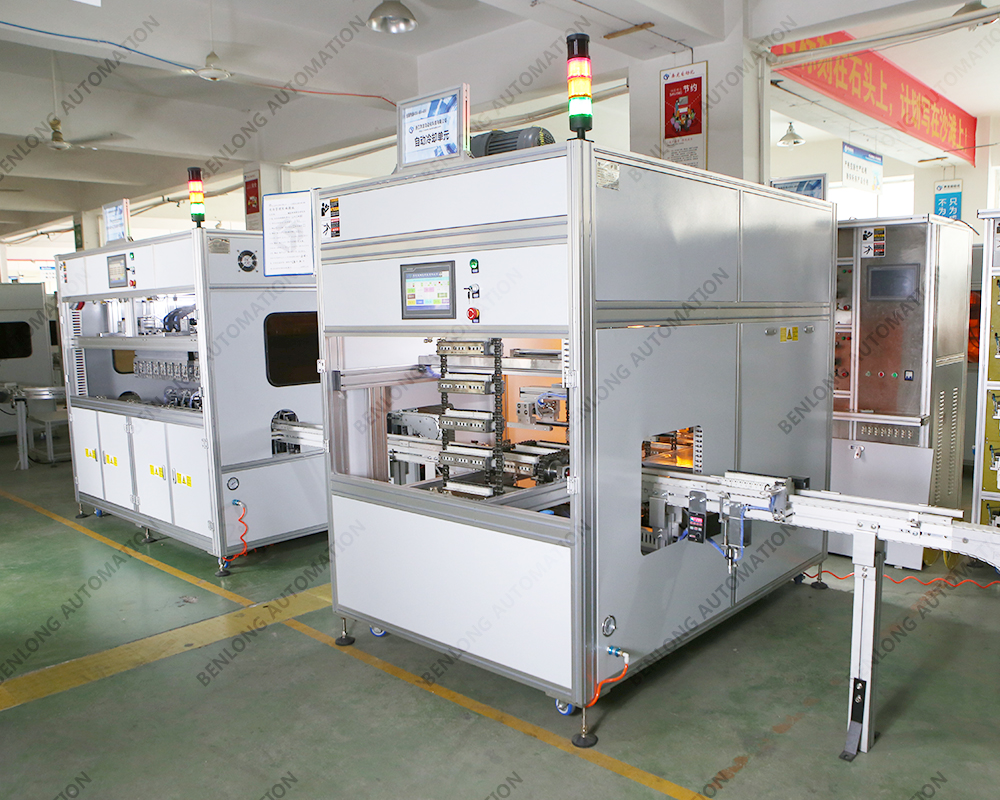

IoT Intelligent Miniature Circuit Breaker Automatic Circulating Cooling Equipment

Short Description:

Temperature monitoring: the device can monitor the temperature of the miniature circuit breaker in real time and obtain temperature data through sensors to ensure that the working temperature of the circuit breaker does not exceed the set range.

Heat dissipation control: the device automatically adjusts the operation status of the cooling fan or other cooling devices according to the real-time monitoring of temperature data, in order to provide appropriate heat dissipation and keep the working temperature of the circuit breaker within a reasonable range.

Fan Speed Adjustment: The device can automatically adjust the fan speed according to the temperature change to achieve the best heat dissipation effect. When the temperature rises, the fan speed can be increased, and when the temperature decreases, the fan speed can be reduced to provide proper cooling effect.

Remote monitoring and control: the device is connected through the Internet of Things (IoT), which can remotely monitor and control the cooling status of the miniature circuit breaker. Users can view the temperature of the circuit breaker in real time through mobile phones, computers and other terminal devices, and adjust and control it accordingly.

Troubleshooting and Alarm: the device can detect the heat dissipation status of the miniature circuit breaker in real time, and once poor heat dissipation or other abnormalities are found, the device can issue an alarm signal to prompt the user to deal with it, so as to avoid overheating damage to the circuit breaker or other failures.

Send email to us

Photograph

Parameters

Video

Previous: Internet of Things intelligent miniature circuit breaker automatic delay recalibration testing equipment

Next: Internet of Things intelligent miniature circuit breaker automatic delay detection equipment

1. Equipment input voltage: 220V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility poles: 1P, 2P, 3P, 4P, 1P+module, 2P+module, 3P+module, 4P+module.
3. Equipment production rhythm: ≤ 10 seconds per pole.
4. The same shelf product can be switched between different poles with just one click or by scanning the code; Different shell products require manual replacement of molds or fixtures.
5. Cooling methods: natural air cooling, direct current fan, compressed air, and air conditioning blowing can be freely selected.

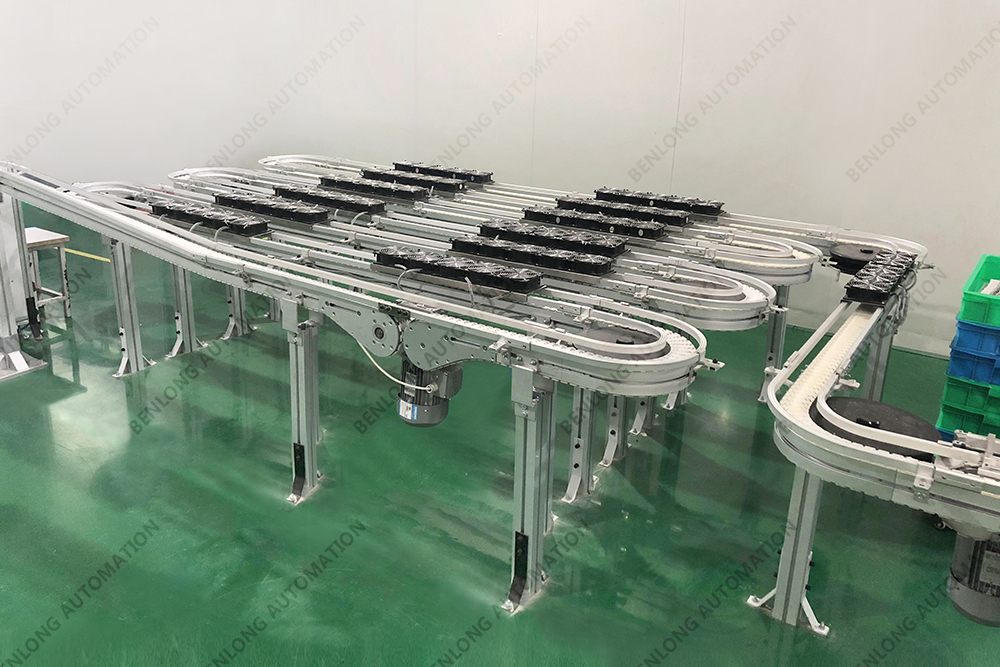

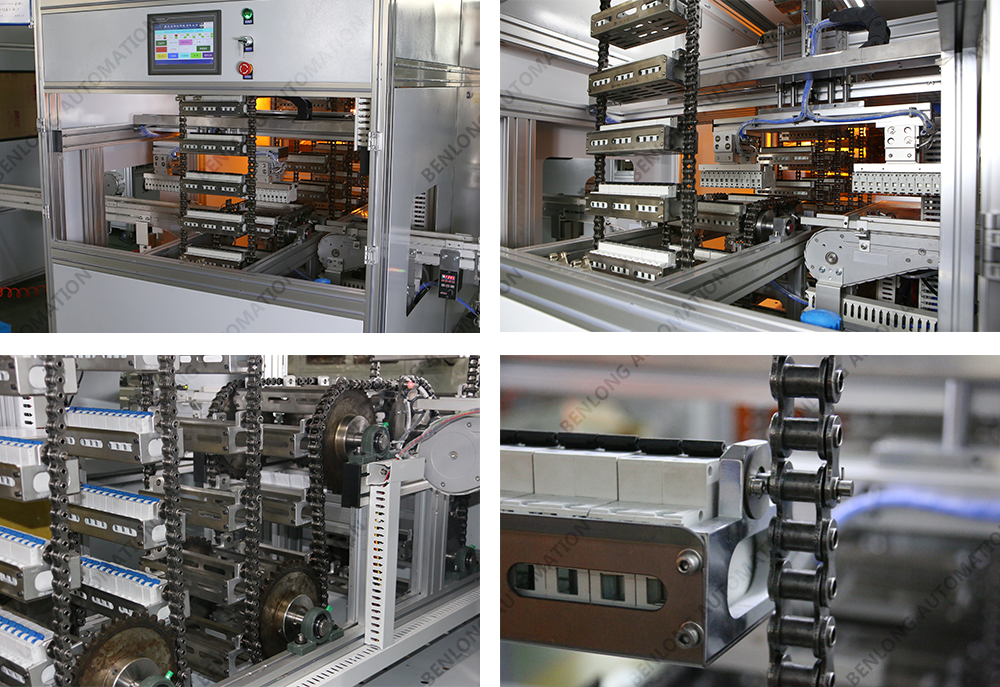

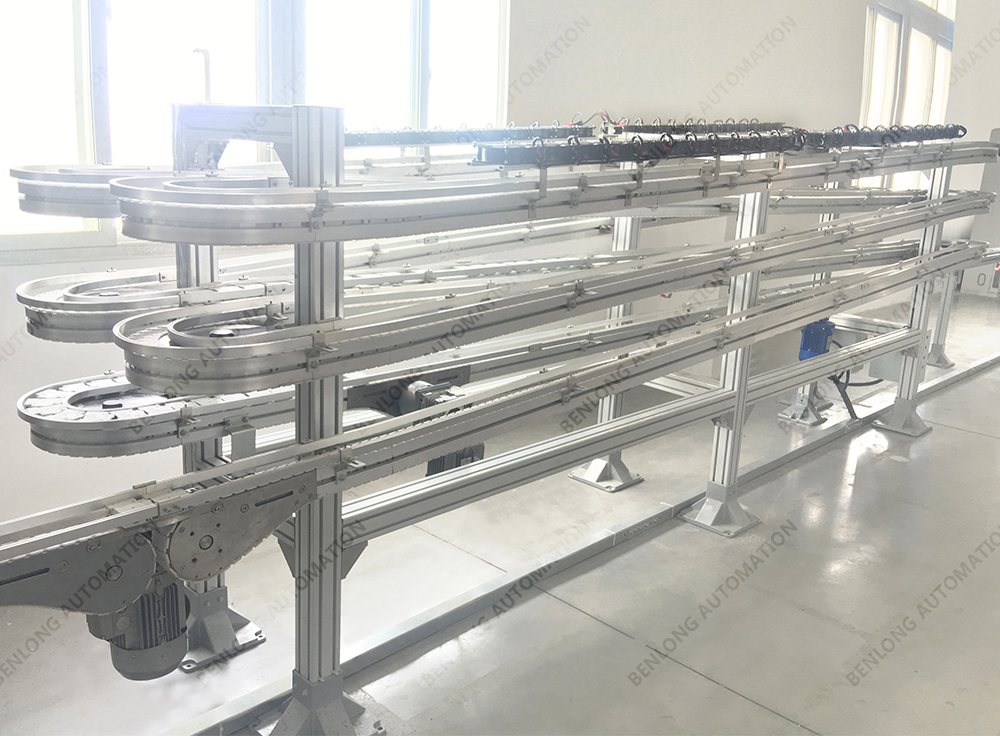

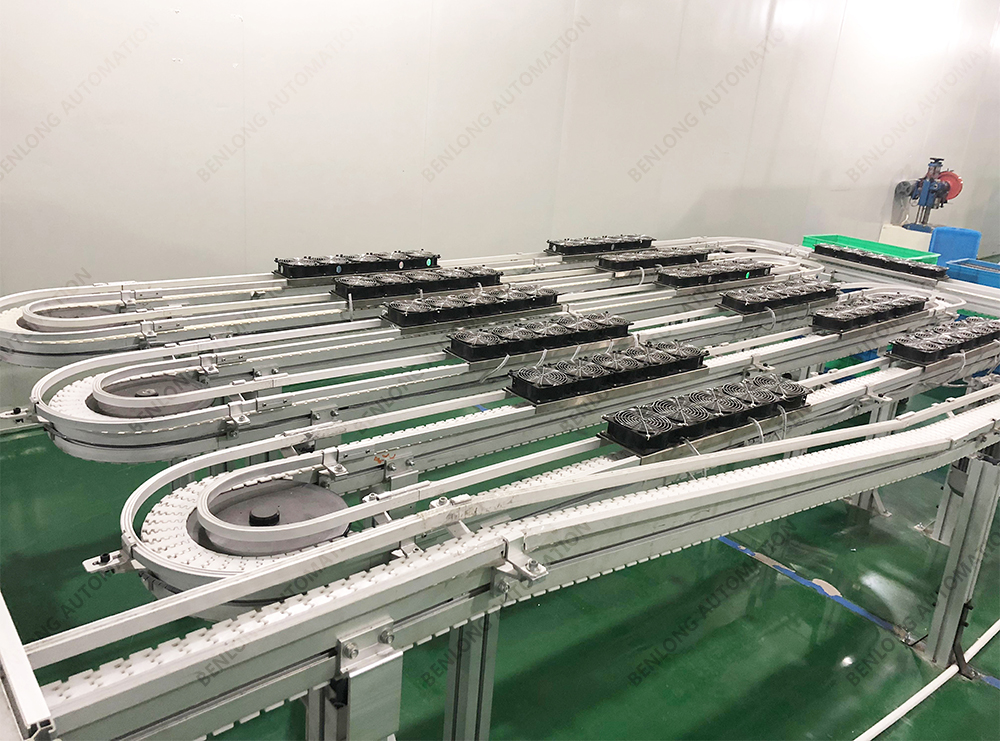

6. The equipment design methods include spiral circulation cooling and three-dimensional storage location circulation cooling, which can be optionally matched.
7. The equipment fixtures can be customized according to the product model.
8. The equipment has alarm display functions such as fault alarm and pressure monitoring.
9. There are two operating systems available: Chinese and English.
10. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
11. The equipment can be optionally equipped with functions such as the Smart Energy Analysis and Energy Conservation Management System and the Smart Equipment Service Big Data Cloud Platform.
12. Having independent independent intellectual property rights.
