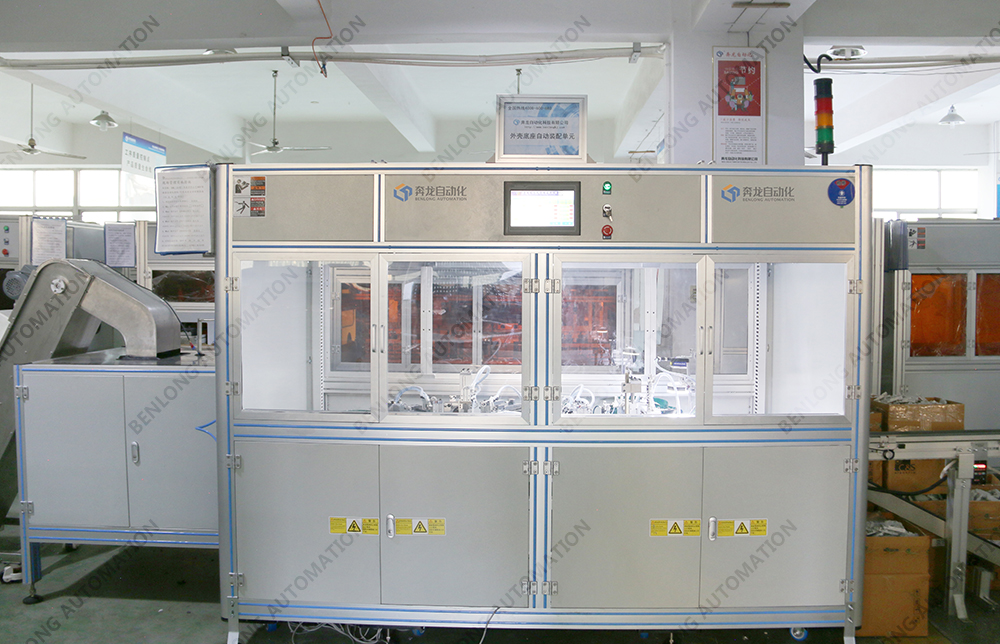

IOT intelligent miniature circuit breaker automatic assembly equipment

Short Description:

Automatic identification and classification: the equipment can automatically identify the types, specifications and features of miniature circuit breakers through visual identification technology, and then classify them separately.

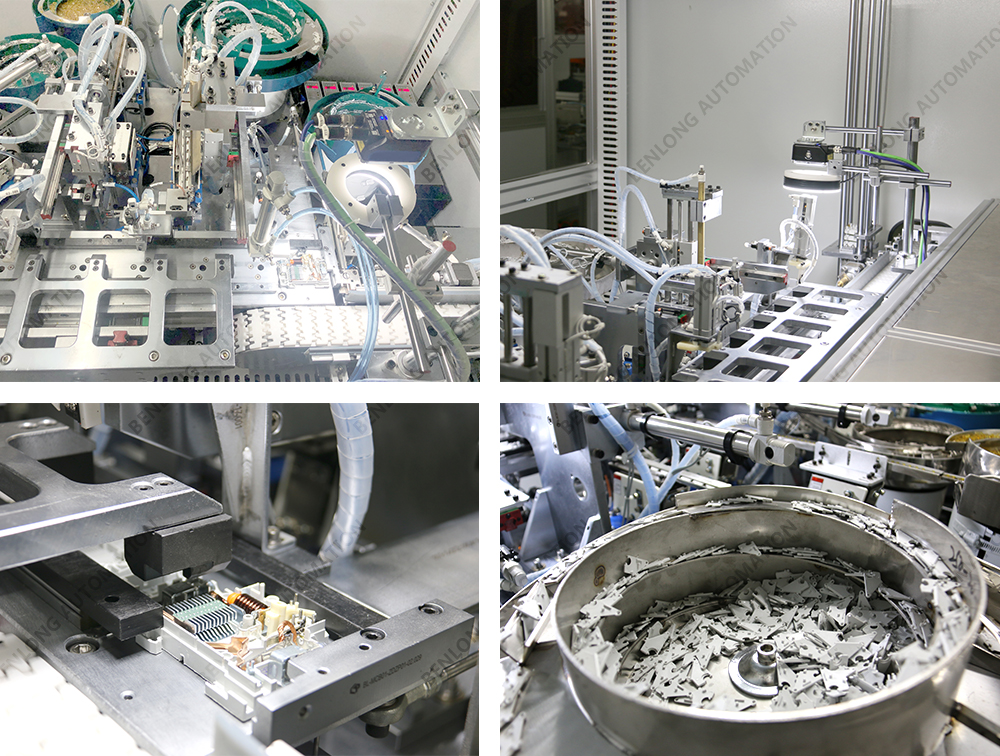

Automatic assembly: the equipment is equipped with robotic arm or other automatic assembly mechanism, which can assemble various components into miniature circuit breakers according to the preset assembly rules and processes.

Automatic inspection and testing: the equipment can automatically inspect and test the electrical characteristics and safety performance of the assembled miniature circuit breaker to ensure that it meets the specified standards and requirements.

Automatic debugging: the equipment can automatically carry out fault troubleshooting and debugging of miniature circuit breakers, such as detecting whether the connection is firm and adjusting the correctness of parameters.

Data collection and recording: the equipment can collect and record the data generated during the assembly process, including assembly time, assembly personnel and other information, which is convenient for production management and quality traceability.

Remote monitoring and control: The equipment can be monitored and controlled remotely through IoT technology. Operators can remotely check the status of the equipment, adjust parameters, etc. to improve production efficiency and operational safety.

Troubleshooting and Alarm: The equipment can monitor its own operation status in real time, and once the equipment is found to be faulty or abnormal, it can alarm and provide troubleshooting information in time, which is convenient for timely processing.

System integration and interface support: the equipment can be interfaced with other related equipment, production lines or enterprise information systems to achieve integrated management of the production process and data sharing.

Send email to us

Photograph

Parameters

Video

Previous: IOT intelligent miniature circuit breaker automatic multi-pole assembling equipment

Next: Energy meter external low voltage circuit breaker robot + automatic aging and testing equipment

1. Equipment input voltage; 220V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility poles: 1P, 2P, 3P, 4P, 1P+module, 2P+module, 3P+module, 4P+module.
3. Equipment production rhythm: ≤ 10 seconds per pole.
4. The same shelf product can be switched between different poles with just one click or by scanning the code; Switching products requires manual replacement of molds or fixtures.
5. Assembly methods: manual assembly and automatic assembly can be freely selected.
6. The equipment fixtures can be customized according to the product model.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
10. The equipment can be optionally equipped with functions such as the Smart Energy Analysis and Energy Conservation Management System and the Smart Equipment Service Big Data Cloud Platform.
11. Having independent independent intellectual property rights.
