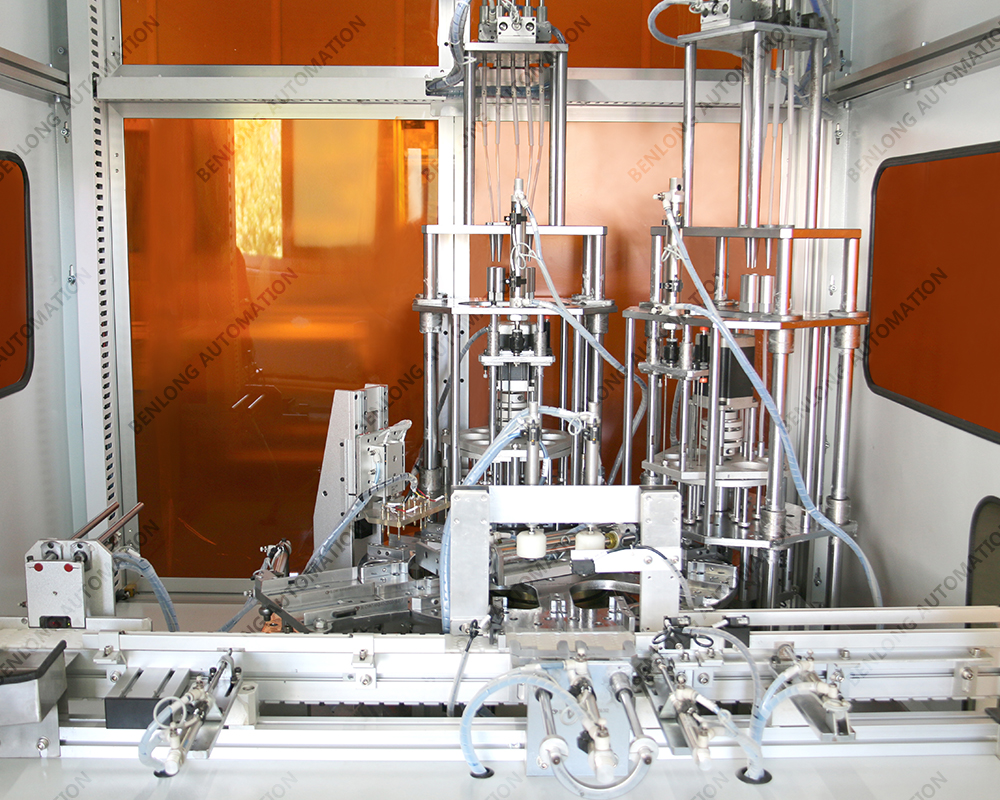

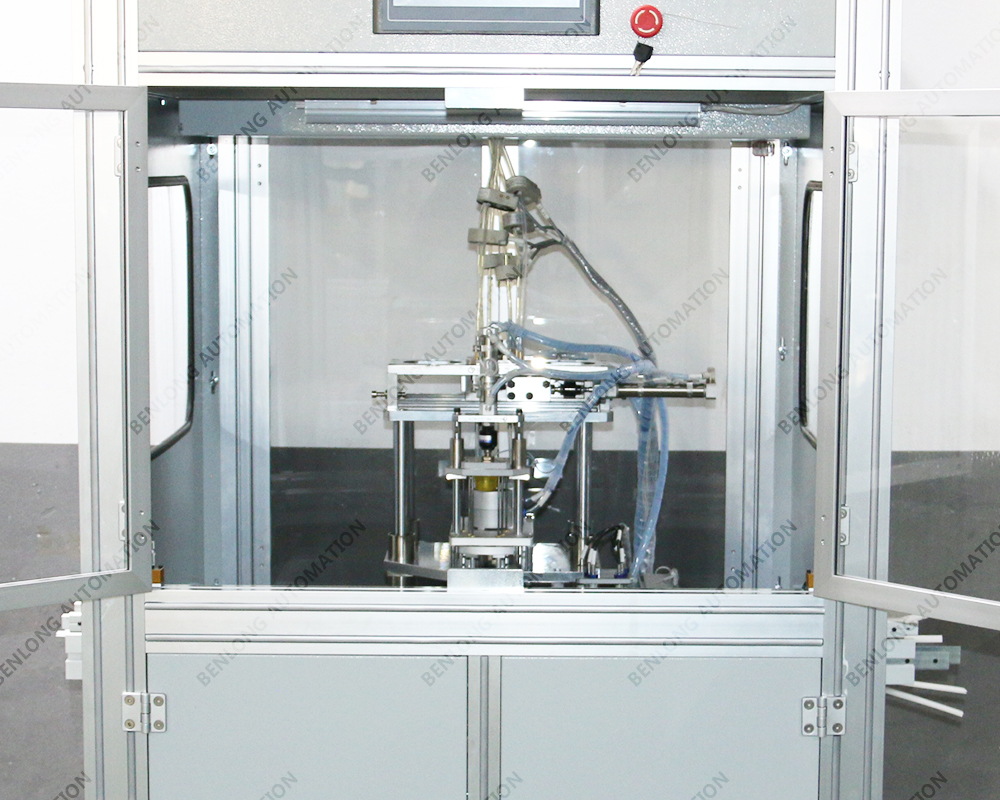

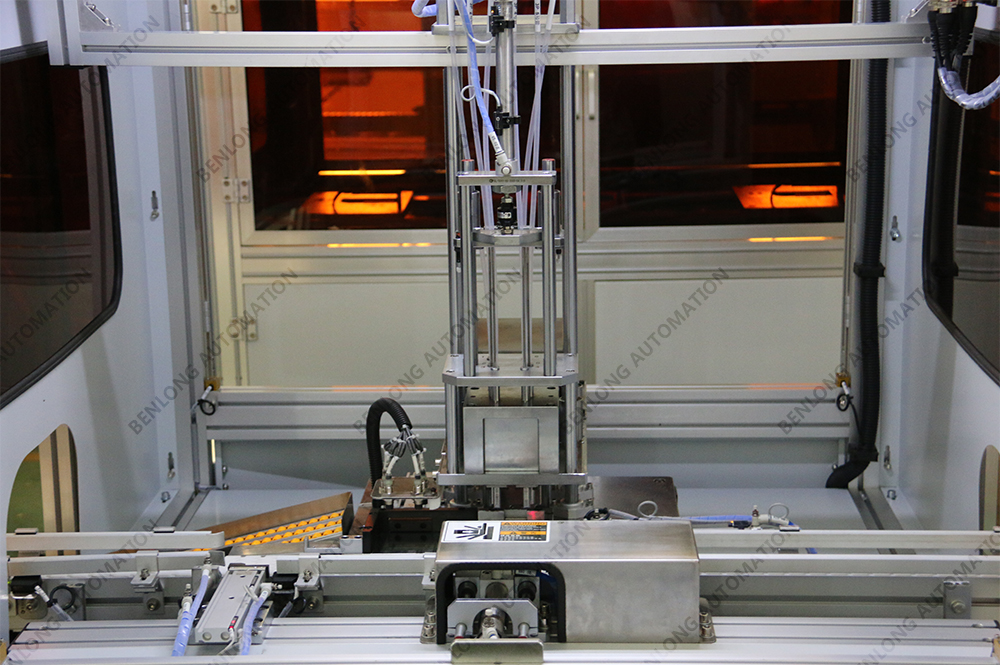

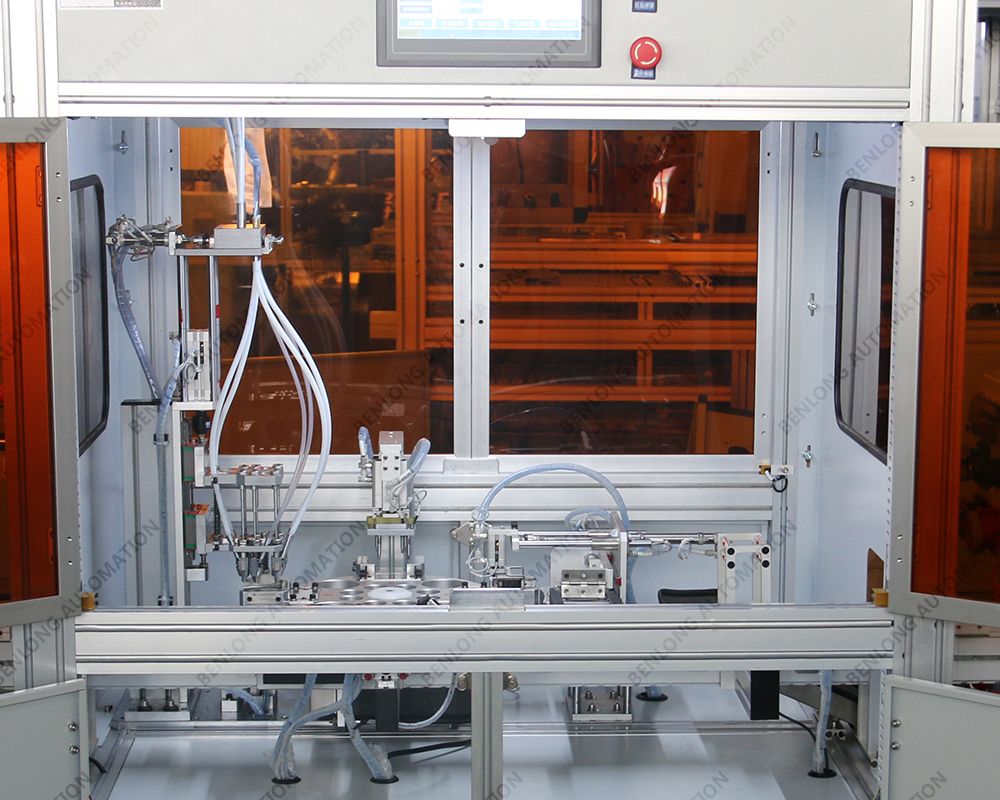

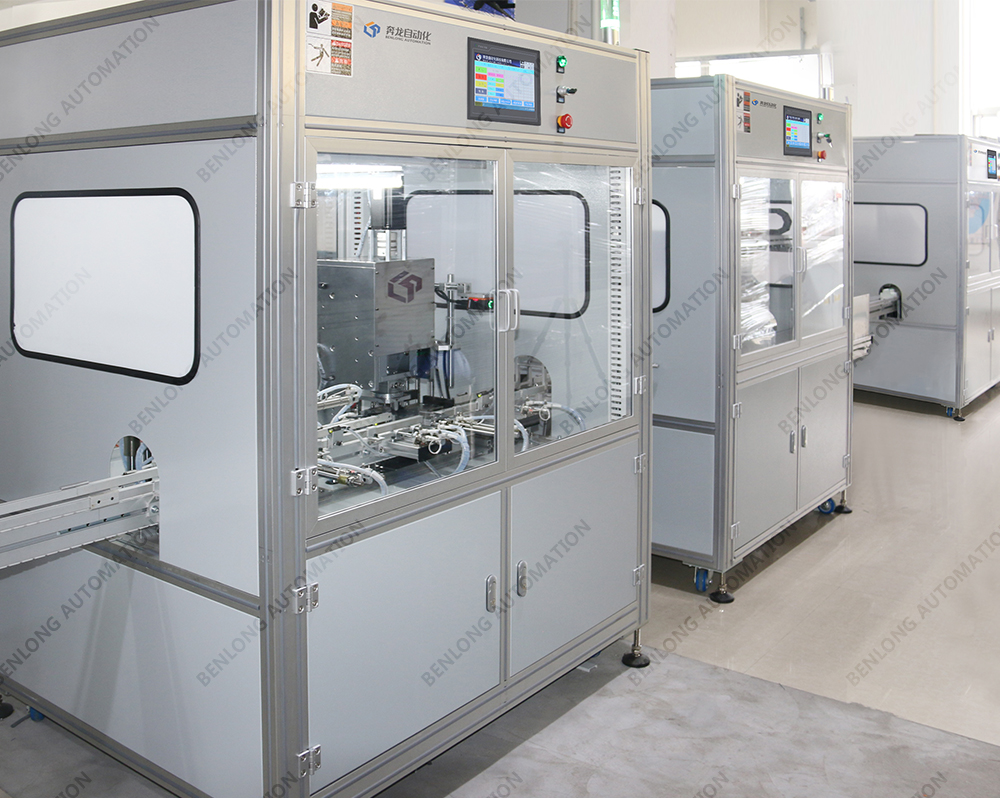

Internet of Things intelligent miniature circuit breaker automatic piercing and riveting equipment

Short Description:

Automated nail riveting: the equipment can automatically and accurately nail riveting the miniature circuit breaker and related components to ensure a solid and reliable connection.

Intelligent positioning: the equipment can accurately locate the position and direction of the miniature circuit breaker through intelligent identification technology to ensure the accuracy and consistency of the nail riveting.

Strength control: the equipment is able to carry out strength control according to different types of miniature circuit breakers and related components to ensure the stability and quality of nail riveting.

Efficient production: the equipment can realize high-speed nail riveting, greatly improve production efficiency, reduce labor and time costs.

Automatic inspection and sorting: the equipment can automatically inspect the quality of riveted nails and exclude unqualified products to ensure stable product quality.

Data statistics and analysis: the equipment can count and analyze the data in the riveting process, including pass rate, failure rate, etc., to provide data support for production management.

Remote monitoring and management: the equipment can be connected through the Internet of Things for remote monitoring and management, the operator can monitor the operating status of the equipment anytime, anywhere, and remote debugging and troubleshooting.

Easy operation: the equipment adopts user-friendly interface and control system, which is easy and convenient to operate and does not require excessive technical operation and human intervention.

Data interface and integration: the equipment can interface and integrate with the production management system or other equipment to realize data interaction and sharing with other systems.

Send email to us

Photograph

Parameters

Video

Previous: Internet of Things intelligent miniature circuit breaker automatic electronic integrated testing equipment

Next: RT18 fuse ultrasonic automatic welding equipment

1. Equipment input voltage: 220V/380V ± 10%, 50Hz; ± 1Hz;
2. Device compatible poles: 1P+module, 2P+module, 3P+module, 4P+module.
3. Equipment production rhythm: ≤ 10 seconds per pole.
4. The same shelf product can be switched between different poles with one click or scan code switching; Different shell frame products require manual replacement of molds or fixtures.

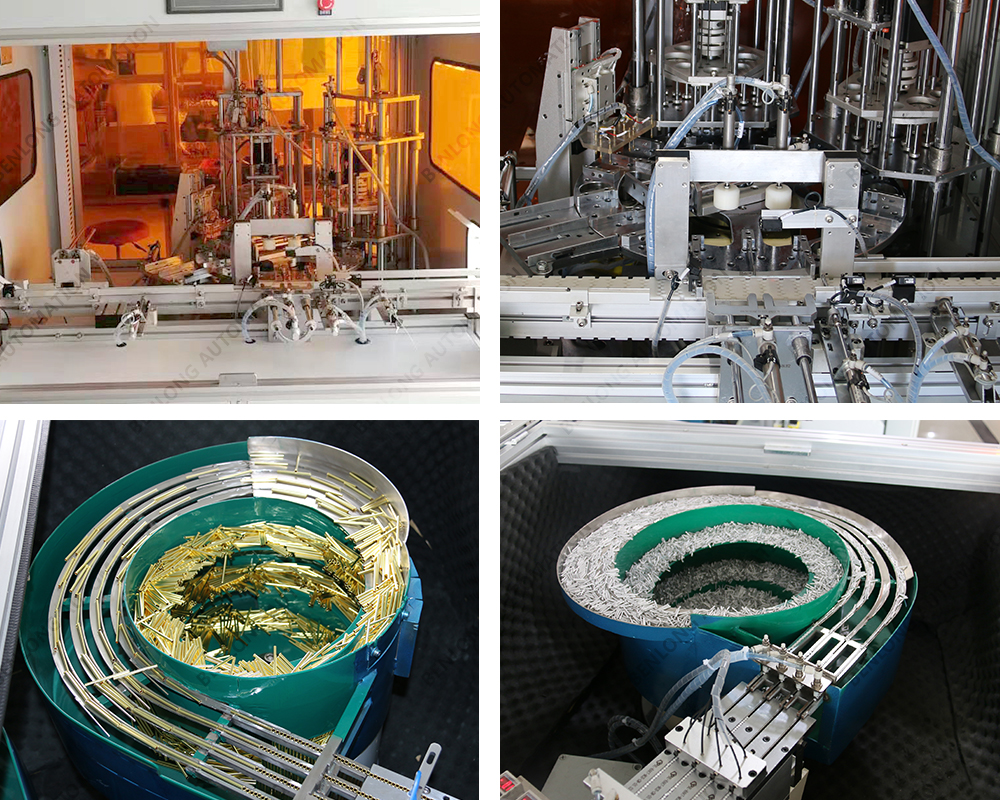

5. The rivet feeding method is vibration disc feeding; Noise ≤ 80 decibels; The number of rivets and molds can be customized according to the product model.
6. The speed and vacuum parameters of the nail splitting mechanism can be set arbitrarily.
7. There are two options for riveting: cam riveting and servo riveting.
8. The riveting speed parameters can be set arbitrarily.
9. The equipment has alarm display functions such as fault alarm and pressure monitoring.
10. There are two operating systems available: Chinese and English.
11. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
12. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
13. Having independent and independent intellectual property rights.
