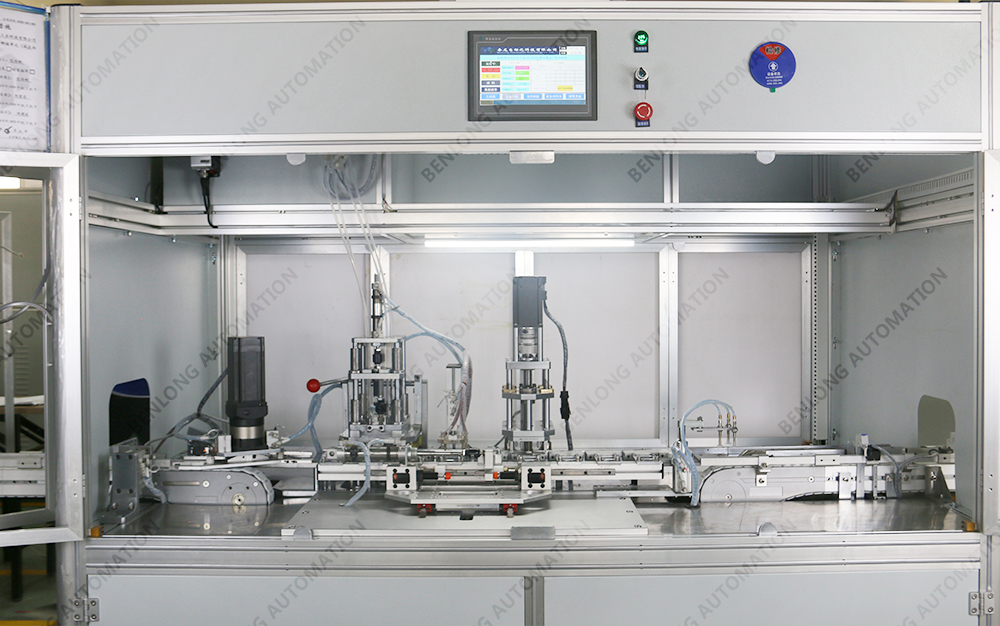

Internet of Things intelligent miniature circuit breaker automatic piercing and riveting equipment

Short Description:

Automated nail piercing and riveting: the equipment can automatically complete the nail piercing and riveting process of miniature circuit breakers, including positioning, bayonet, nail piercing, riveting and other actions to improve production efficiency and accuracy.

IoT connection: the equipment is equipped with IoT connection function, which can communicate with other equipment or systems through the network to achieve data transmission and coordination, facilitating production management and information interoperability.

Intelligent control and monitoring: the equipment is equipped with an intelligent control system inside, which can automatically regulate the parameters of nail piercing and riveting, monitor the pressure, time, temperature and other key parameters in the riveting process, and grasp the process status in real time.

Data recording and analysis: the equipment can record the key data of the riveting process, such as the riveting parameters and results of each circuit breaker, as well as the operating status of the equipment. These data can be used for production process analysis, quality traceability and maintenance.

Remote operation and monitoring: Through the IoT connection, the equipment can be operated and monitored remotely, including starting and stopping, parameter adjustment, etc., to improve work flexibility and convenience.

Intelligent Diagnosis and Maintenance: With built-in intelligent algorithms and sensors, the equipment is able to monitor the operating conditions of the equipment in real time, predict and diagnose potential failures, and provide maintenance and repair recommendations to improve equipment reliability and service life.

Send email to us

Photograph

Parameters

Video

Previous: IOT intelligent miniature circuit breaker automatic riveting equipment

Next: IOT intelligent miniature circuit breaker automatic coding equipment

1. Equipment input voltage: 220V/380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility poles: 1P, 2P, 3P, 4P, 1P+module, 2P+module, 3P+module, 4P+module.
3. Equipment production rhythm: ≤ 10 seconds per pole.
4. The same shelf product can be switched between different poles with just one click or by scanning the code; Different shell products require manual replacement of molds or fixtures.
5. The rivet feeding method is vibration disc feeding; Noise ≤ 80 decibels; The number of rivets and molds can be customized according to the product model.
6. The speed and vacuum degree parameters of the nail splitting mechanism can be set arbitrarily.

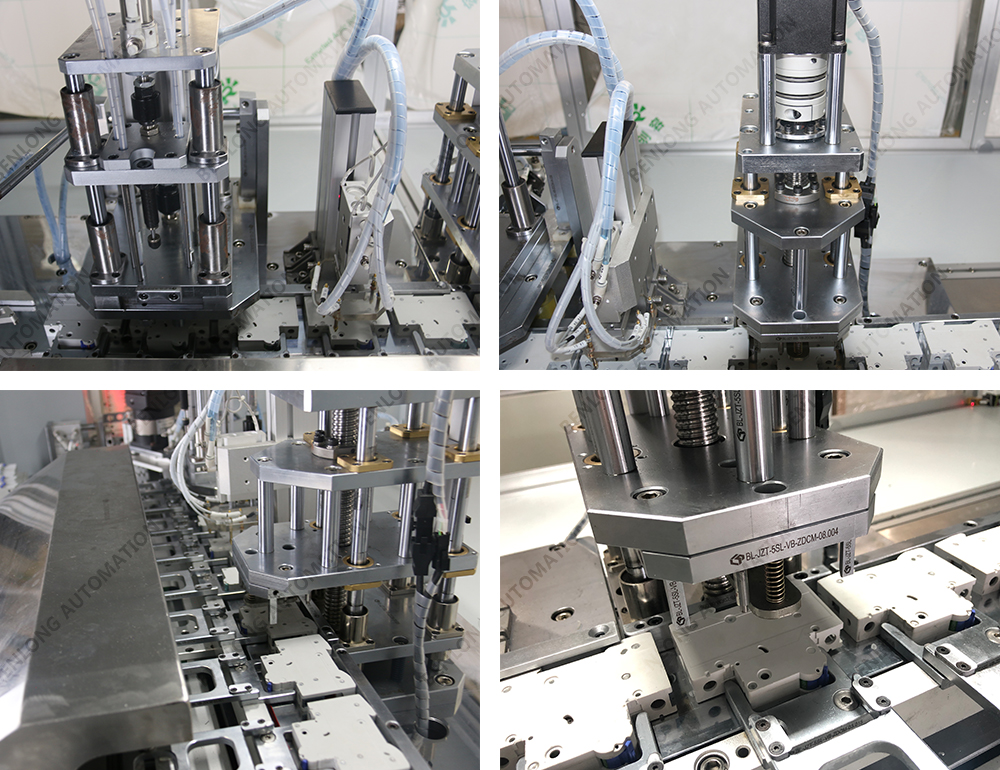

7. There are two optional riveting forms: cam riveting and servo riveting.
8. The riveting speed parameters can be set arbitrarily.
9. The equipment has alarm display functions such as fault alarm and pressure monitoring.
10. There are two operating systems available: Chinese and English.
11. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
12. The equipment can be optionally equipped with functions such as the Smart Energy Analysis and Energy Conservation Management System and the Smart Equipment Service Big Data Cloud Platform.
13. Having independent independent intellectual property rights.
