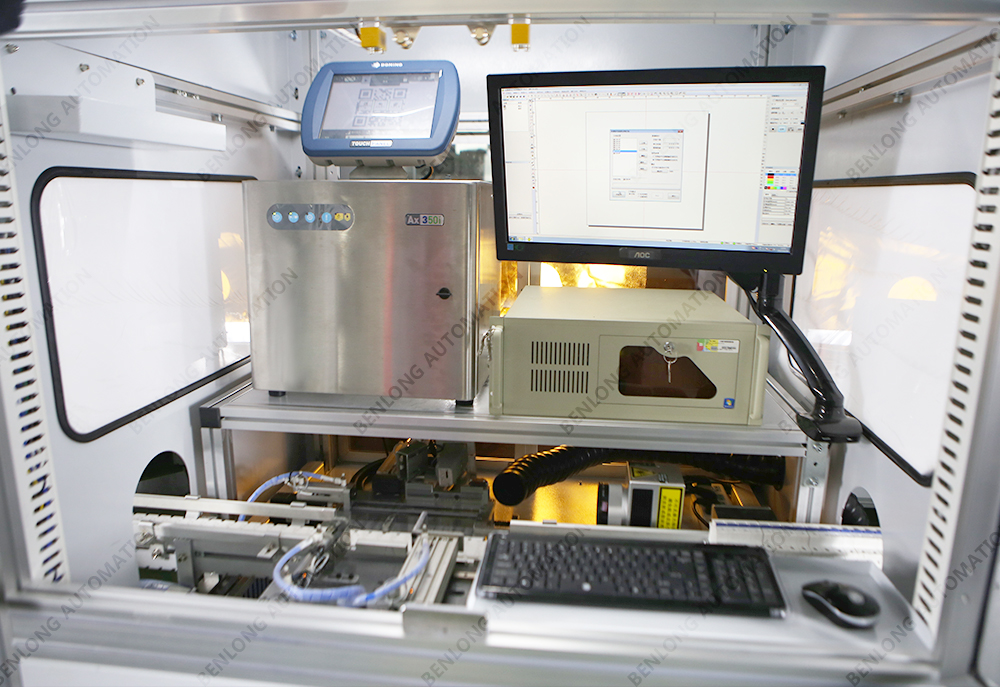

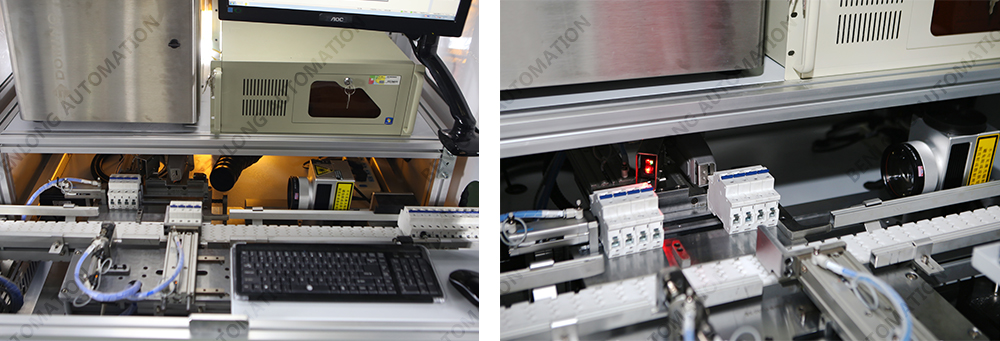

Internet of Things intelligent miniature circuit breaker automatic laser, coding equipment

Short Description:

Automatic identification and positioning: the equipment is able to automatically identify the type and location of miniature circuit breakers through image recognition technology, and carry out positioning to ensure the accuracy of laser or spray code.

Automatic laser or printing code: the equipment can automatically carry out laser engraving or printing code operation according to the preset coding method, applying the required information, identification number or barcode and other coding methods on the miniature circuit breakers.

Parameter setting and adjustment: according to different coding requirements and circuit breaker specifications, the equipment can set and adjust the parameters of laser or printing code, such as coding content, position, depth and so on.

Coding quality inspection: the equipment can inspect the quality after laser or spray coding, including the clarity of the code, contrast and other indicators to ensure that the code meets the standard requirements.

Data collection and analysis: the equipment can collect and analyse data on the coding process, collect data on coding quality, equipment operation status, etc. for production management and quality control.

Remote monitoring and control: The equipment can be connected through the Internet of Things to realise remote monitoring and control functions, so that the operating personnel can understand the operating status of the equipment at any time, and carry out remote operation and adjustment.

Troubleshooting and Alarm: The equipment is equipped with troubleshooting function, once the equipment is found to be faulty or abnormal, it will alarm and provide corresponding troubleshooting information in time, which is convenient for timely repair and maintenance.

Send email to us

Photograph

Parameters

Video

Previous: IOT intelligent miniature circuit breaker automatic coding equipment

Next: IOT intelligent miniature circuit breaker automatic laser marking equipment

1. Equipment input voltage; 220V/380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility poles: 1P, 2P, 3P, 4P, 1P+module, 2P+module, 3P+module, 4P+module.
3. Equipment production rhythm: ≤ 10 seconds per pole.
4. The same shell frame product can be switched with one click for different pole numbers; Different shell products require manual replacement of molds or fixtures.
5. The equipment fixtures can be customized according to the product model.
6. Laser parameters can be pre stored in the control system and automatically retrieved for marking; The marking QR code parameters and spray code parameters can be set arbitrarily, generally ≤ 24 bits.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
10. The equipment can be optionally equipped with functions such as the Smart Energy Analysis and Energy Conservation Management System and the Smart Equipment Service Big Data Cloud Platform.
11. Having independent independent intellectual property rights.
