Internet of Things intelligent miniature circuit breaker automatic assembly stopper equipment

Short Description:

AUTOMATIC RECOGNITION AND CLASSIFICATION: The device is able to automatically recognize and classify different types of miniature circuit breakers and corresponding stops to ensure correct assembly matching.

On-demand supply: the equipment is able to automatically supply the required stops according to the demand, ensuring the continuity and efficiency of the assembly process.

Automatic assembly: the equipment is equipped with an automatic assembly function, which can accurately assemble the stops to the corresponding miniature circuit breakers, ensuring the accuracy and stability of the assembly.

Assembly quality inspection: the equipment can implement quality inspection and quality control during the assembly process to ensure that each assembled miniature circuit breaker meets the quality requirements.

Automatic adjustment and adaptability: the equipment can automatically adjust the assembly position, angle and strength according to the size, shape and assembly requirements of miniature circuit breakers to adapt to different types of miniature circuit breakers.

Easy operation: the equipment adopts user-friendly interface and control system, which is easy and convenient to operate and does not require excessive technical operation and human intervention.

Data recording and statistics: the equipment can record the assembly time, quantity and quality inspection results of each miniature circuit breaker and other related information, and carry out data statistics and analysis, which is convenient for the traceability and analysis of production data.

Remote monitoring and management: the equipment is connected through the Internet of Things for remote monitoring and management, the operator can monitor the operating status of the equipment, remote debugging and troubleshooting at any time and anywhere.

Send email to us

Photograph

Parameters

Video

Previous: IOT intelligent miniature circuit breaker automatic pad printing equipment

Next: Internet of Things intelligent miniature circuit breaker automatic electronic integrated testing equipment

1. Equipment input voltage: 380V ± 10%, 50Hz; ± 1Hz;
2. Device compatible poles: 1P+module, 2P+module, 3P+module, 4P+module.
3. Equipment production rhythm: ≤ 10 seconds per pole.
4. The same shelf product can be switched between different poles with one click or scan code switching; Different shell frame products require manual replacement of molds or fixtures.
5. There are two options for detecting defective products: CCD visual inspection or fiber optic sensor detection.

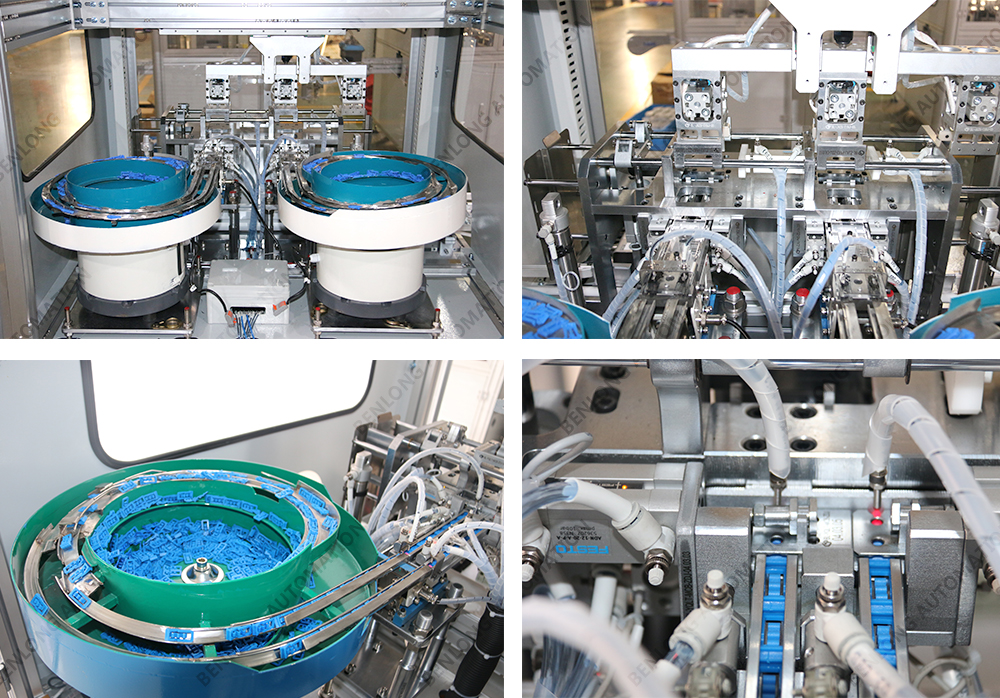

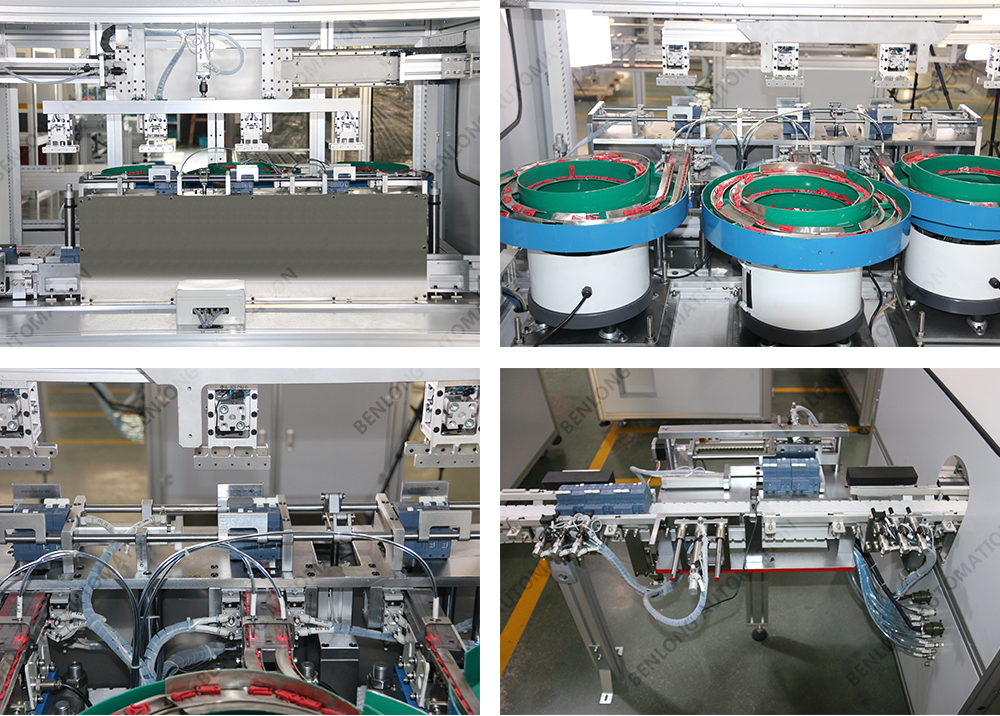

6. The product is assembled in a horizontal state, and the stopper is supplied by a vibrating disc; Noise ≤ 80 decibels.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
10. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
11. Having independent and independent intellectual property rights.
