Energy meter external low voltage circuit breaker automatic withstand voltage testing equipment

Short Description:

Automatic detection: the equipment can automatically detect the voltage withstand condition of LV circuit breakers, avoiding the tediousness and possible omission of manual inspection.

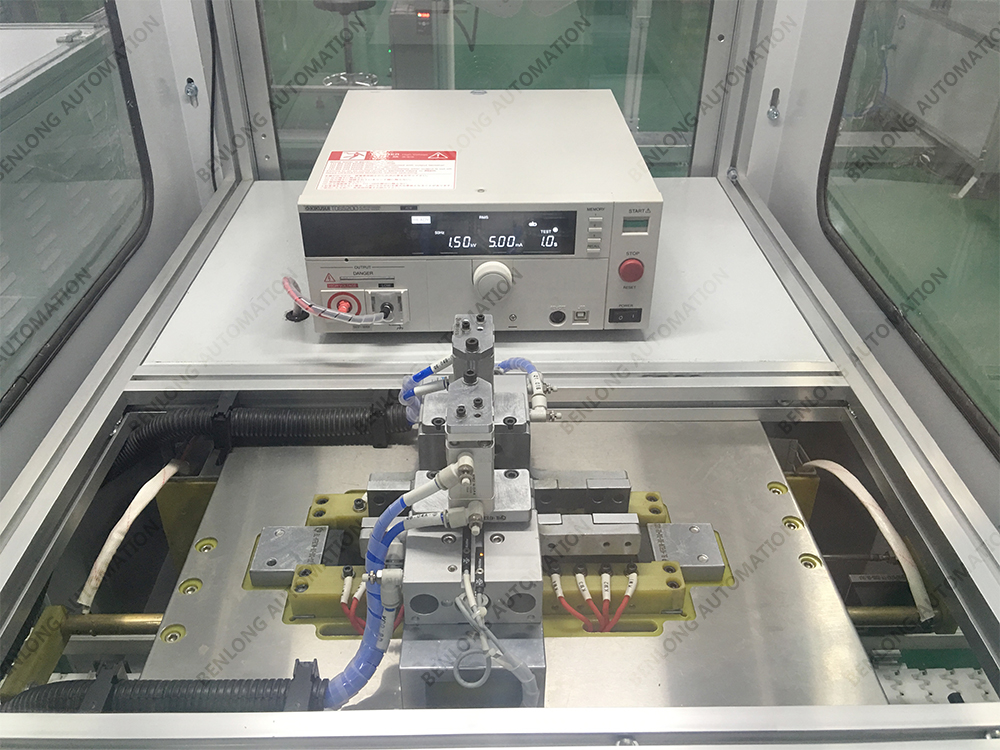

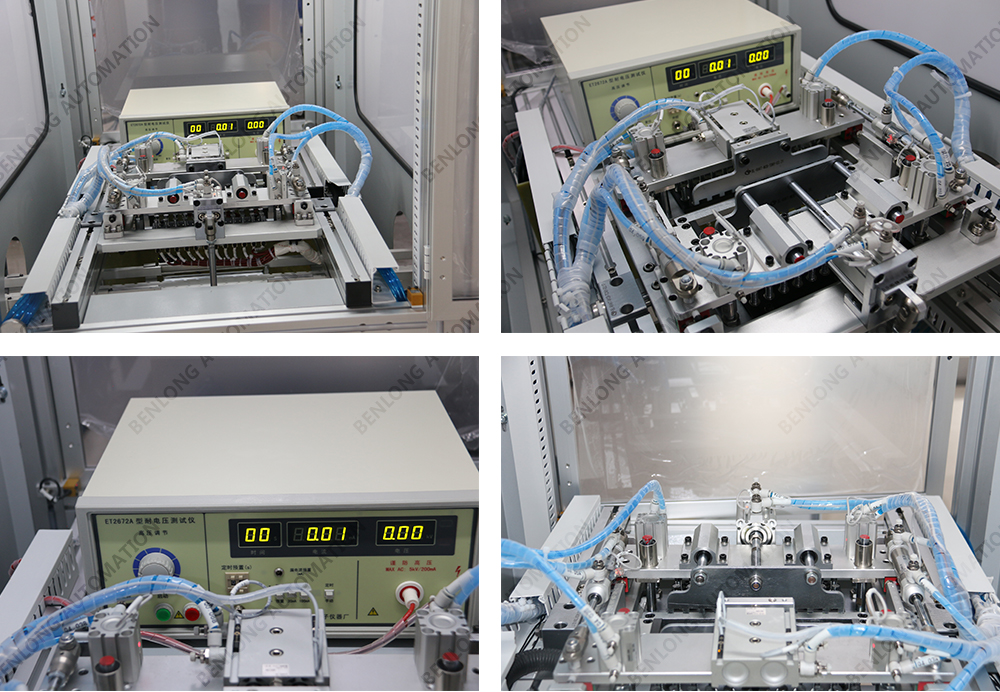

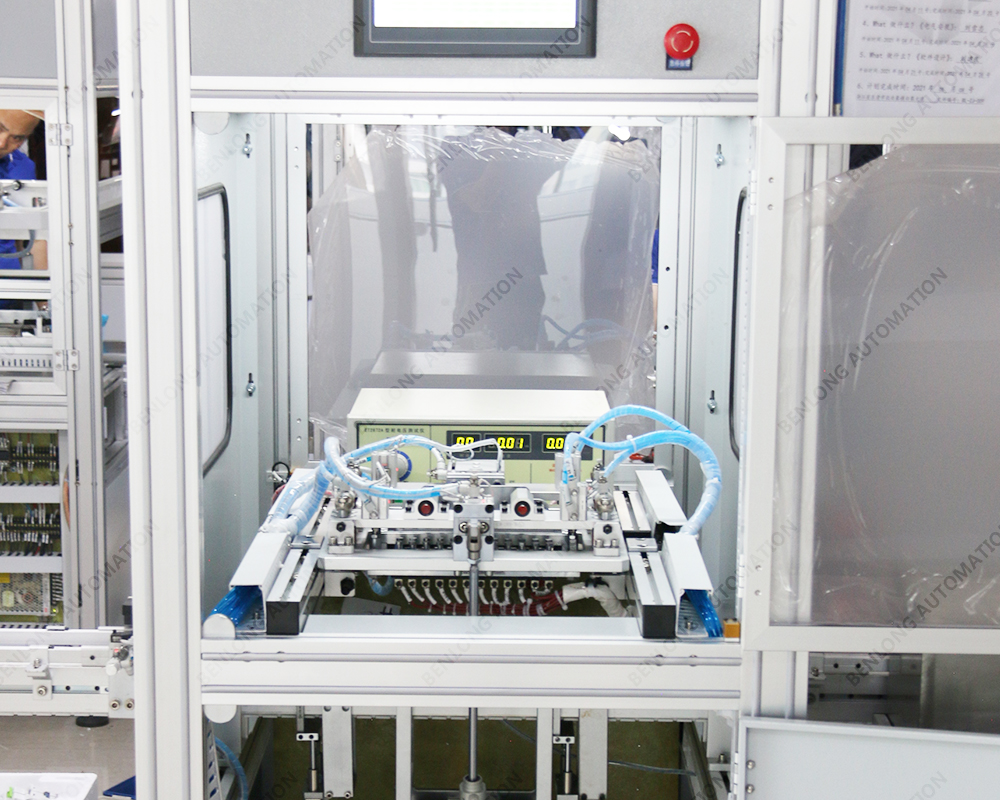

Withstand Voltage Test: The equipment is capable of conducting withstand voltage test on LV circuit breakers, i.e. applying high voltage on LV circuit breakers to check whether they can withstand the rated voltage and whether their insulation performance is good or not.

Result display: The equipment can display the result of the withstand voltage test, including whether it passes the test, the withstand voltage value and other information, so that the staff can judge whether the LV circuit breaker meets the requirements.

Abnormal handling: If any abnormality occurs during the withstand voltage test, the equipment can issue an alarm and provide corresponding handling suggestions, which can help the staff find the problem in time and take measures to repair or replace the LV circuit breaker.

Data Recording: The equipment can record the results of each withstand voltage test for subsequent analysis and reference. This helps to assess the long-term performance of low voltage circuit breakers and provide precautionary and improvement measures.

Send email to us

Photograph

Parameters

Video

Previous: Energy meter external low voltage circuit breaker automatic screw torque testing equipment

Next: Energy meter external low-voltage circuit breaker automatic instantaneous, on-off, withstand voltage testing equipment

1. Equipment input voltage; 380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility poles: 1P, 2P, 3P, 4P, 1P+module, 2P+module, 3P+module, 4P+module.
3. Equipment production rhythm: ≤ 10 seconds per pole.
4. The same shelf product can be switched between different poles with just one click or by scanning the code; Different shell products require manual replacement of molds or fixtures.
5. High voltage output range: 0-5000V; The leakage current is available in different levels of 10mA, 20mA, 100mA, and 200mA.
6. Detection of high-voltage insulation time: The parameters can be set arbitrarily from 1 to 999S.
7. Detection frequency: 1-99 times. The parameter can be set arbitrarily.
8. High voltage detection position: When the product is in the closed state, detect the voltage resistance between phases; When the product is in the closed state, check the voltage resistance between the phase and the bottom plate; When the product is in the closed state, check the voltage resistance between the phase and the handle; When the product is in the open state, check the voltage resistance between the incoming and outgoing lines.
9. The product can be tested horizontally or vertically as an optional option.
10. The equipment has alarm display functions such as fault alarm and pressure monitoring.
11. There are two operating systems available: Chinese and English.
12. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
13. The equipment can be optionally equipped with functions such as the Smart Energy Analysis and Energy Conservation Management System and the Smart Equipment Service Big Data Cloud Platform.
14. Having independent independent intellectual property rights.
