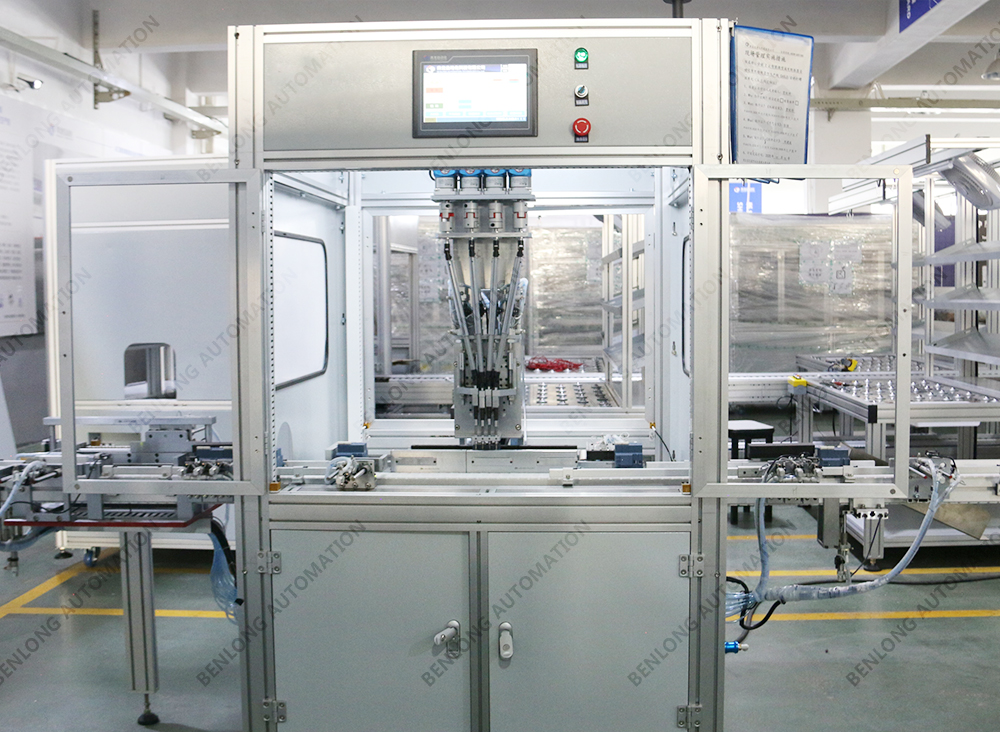

Energy meter external low voltage circuit breaker automatic screw torque testing equipment

Short Description:

Automatic detection: the equipment can automatically identify the screws on the external low-voltage circuit breaker of the energy meter and conduct torque detection on them. This can improve the working efficiency and reduce the time and workload of manual operation.

Torque Measurement: The device can measure the amount of torque of the screws and display the results. This can help the staff understand the tightening of the screws and ensure that the screws meet the specified torque requirements.

Abnormality Detection: The equipment can detect whether the torque of the screws meets the preset range. If the screw torque is too large or too small, the device will issue an alarm or other appropriate processing to ensure that the screw’s normal working condition.

Data Recording: The equipment can record the torque detection results for subsequent analysis and reference. This can help the staff to understand the use of the equipment, timely detection of problems and maintenance and improvement.

Send email to us

Photograph

Parameters

Video

Previous: Energy meter external low-voltage circuit breaker automatic time-delay testing equipment

Next: Energy meter external low voltage circuit breaker automatic withstand voltage testing equipment

1. Equipment input voltage: 220V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility poles: 1P, 2P, 3P, 4P, 1P+module, 2P+module, 3P+module, 4P+module.
3. Equipment production rhythm: ≤ 10 seconds per pole.
4. The same shelf product can be switched between different poles with just one click or by scanning the code; Different shell products require manual replacement of molds or fixtures.
5. Torque method: servo motor and torque electric screwdriver can be optionally matched.
6. The equipment fixtures can be customized according to the product model.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
10. The equipment can be optionally equipped with functions such as the Smart Energy Analysis and Energy Conservation Management System and the Smart Equipment Service Big Data Cloud Platform.
11. Having independent independent intellectual property rights.
