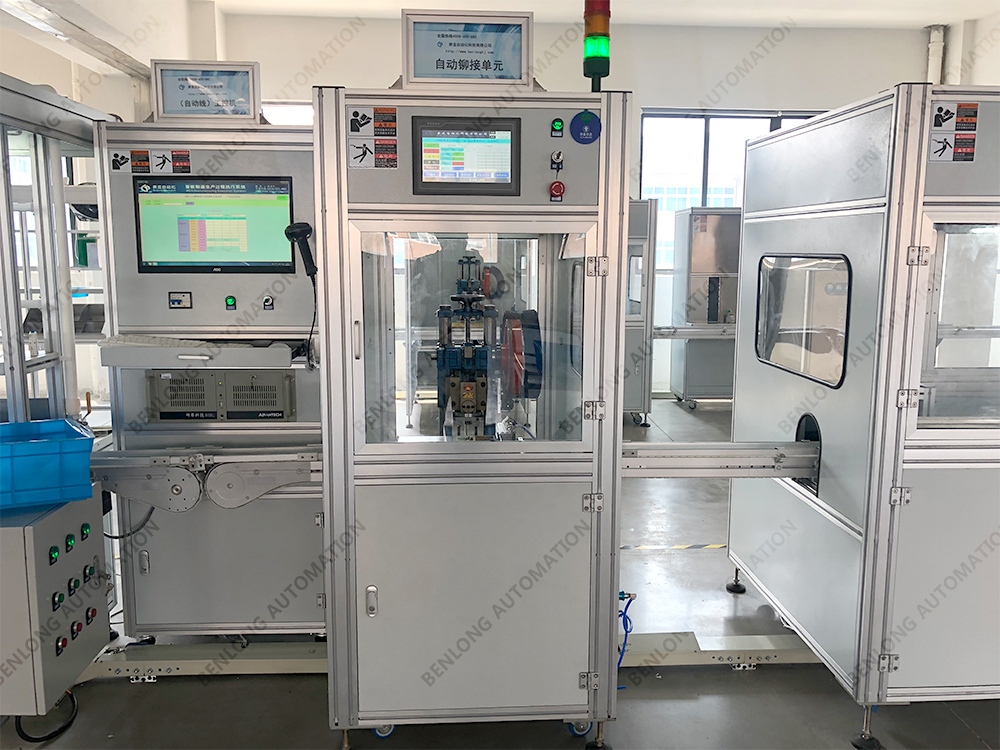

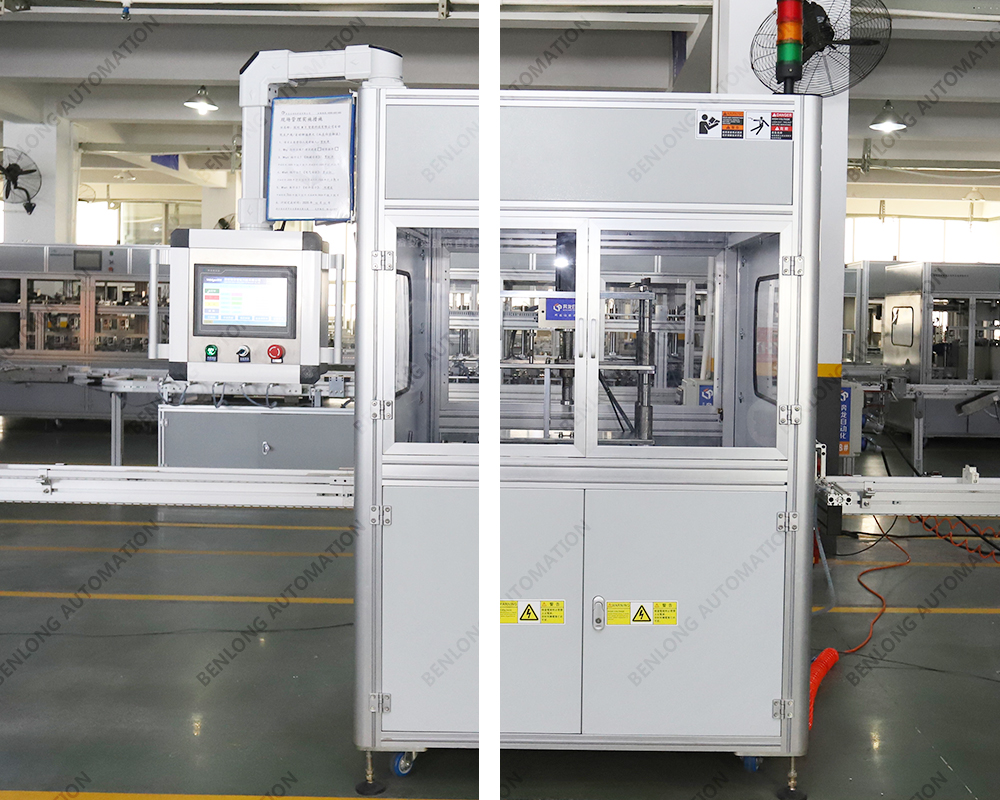

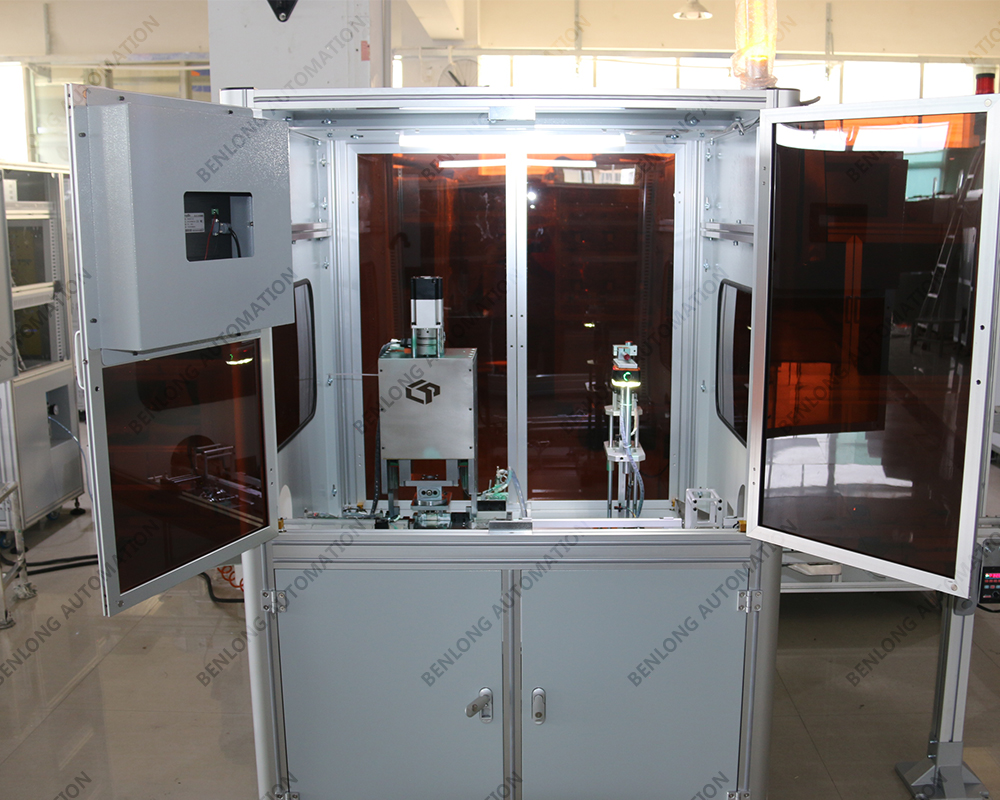

Energy meter external low voltage circuit breaker automatic riveting equipment

Short Description:

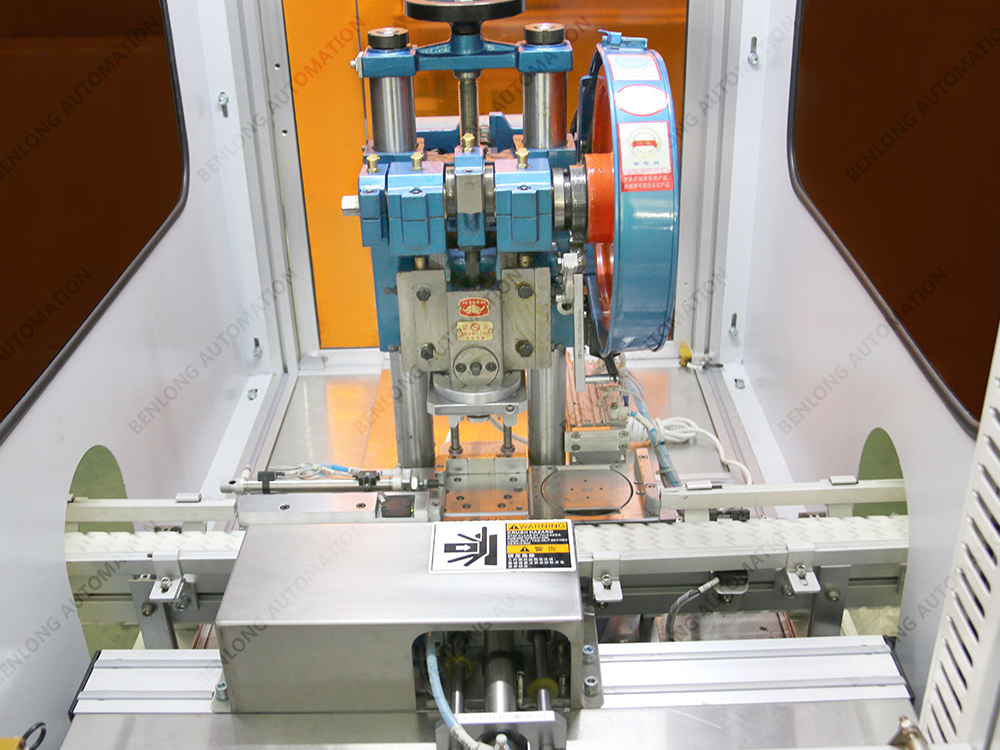

Automatic riveting: the equipment can automatically carry out riveting between the energy meter and low-voltage circuit breaker without manual intervention. During the riveting process, the equipment can accurately locate and rivet the appropriate position to ensure a solid connection.

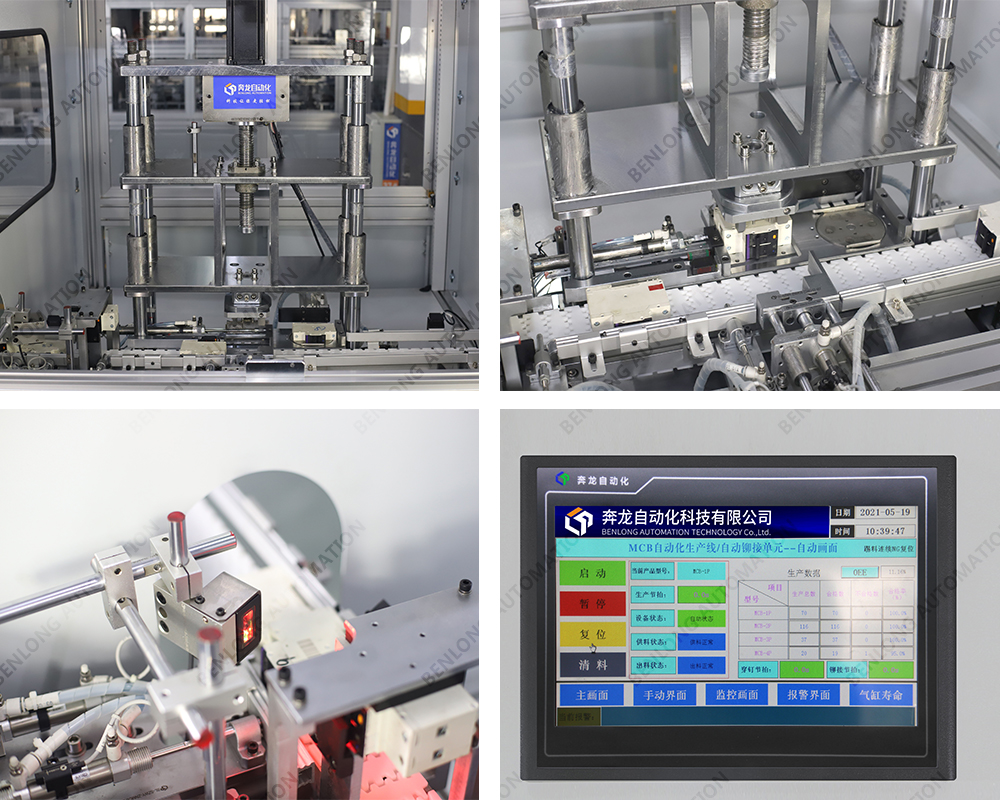

Control function: the equipment has a control function, through the control button or touch screen, etc., to set the riveting parameters, such as riveting pressure, time and so on. The operator can make flexible settings and adjustments as needed.

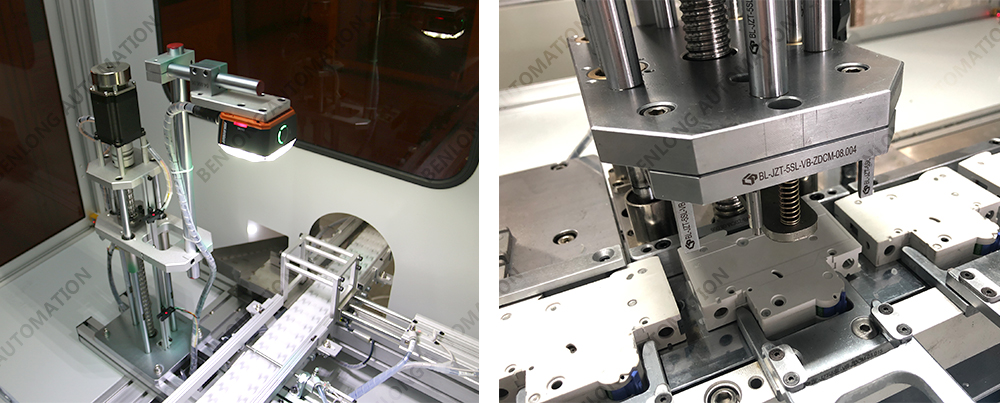

Detection function: the equipment can through the sensor or other detection devices, the riveting process for real-time monitoring and detection. For example, detect whether the riveting pressure meets the requirements, detect whether the riveting position is accurate, etc.. Ensure that the riveting quality meets the requirements.

Data management function: the equipment can carry out data management, save riveting records and related parameters, and generate reports. This can facilitate the monitoring and statistics on the use of equipment, convenient for future maintenance and management.

Fault diagnosis and alarm function: the equipment can detect and diagnose faults in a timely manner, such as poor riveting, insufficient pressure, etc., and through the alarm or display screen and other means of alarm prompts. Ensure timely detection and resolution of problems, improve the reliability and stability of the equipment.

Send email to us

Photograph

Parameters

Video

Previous: Energy meter external low voltage circuit breaker automatic side pad printing equipment

Next: Energy meter external low voltage circuit breaker automatic piercing and riveting equipment

1. Equipment input voltage: 220V/380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility poles: 1P, 2P, 3P, 4P, 1P+module, 2P+module, 3P+module, 4P+module.
3. Equipment production rhythm: ≤ 10 seconds per pole.
4. The same shelf product can be switched between different poles with just one click or by scanning the code; Different shell products require manual replacement of molds or fixtures.
5. There are two optional riveting forms: cam riveting and servo riveting.
6. The riveting speed parameters can be set arbitrarily; The number of rivets and molds can be customized according to the product model.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
10. The equipment can be optionally equipped with functions such as the Smart Energy Analysis and Energy Conservation Management System and the Smart Equipment Service Big Data Cloud Platform.
11. Having independent independent intellectual property rights.
