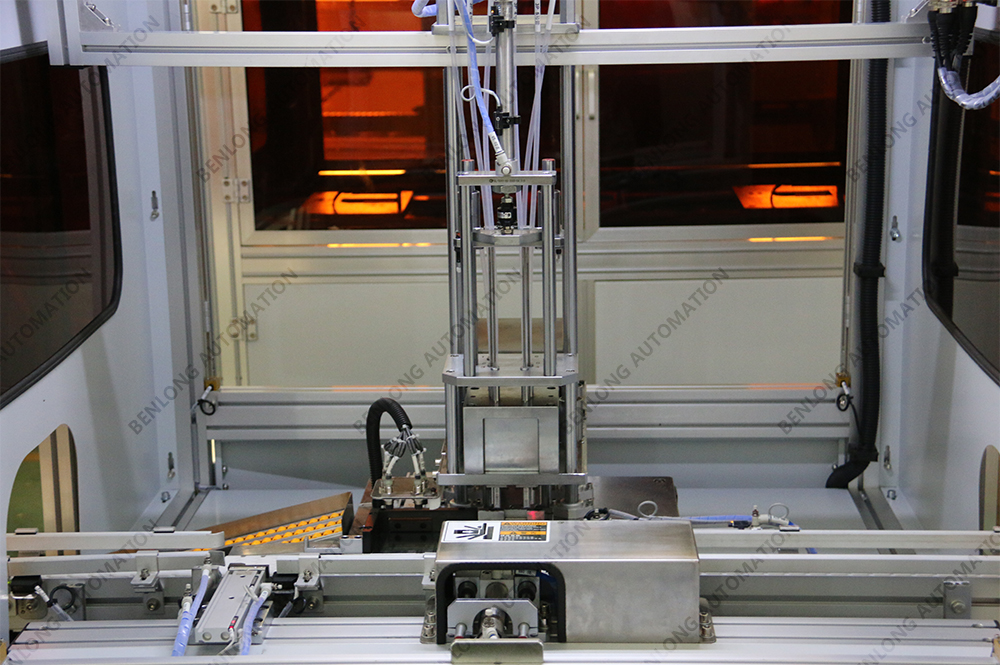

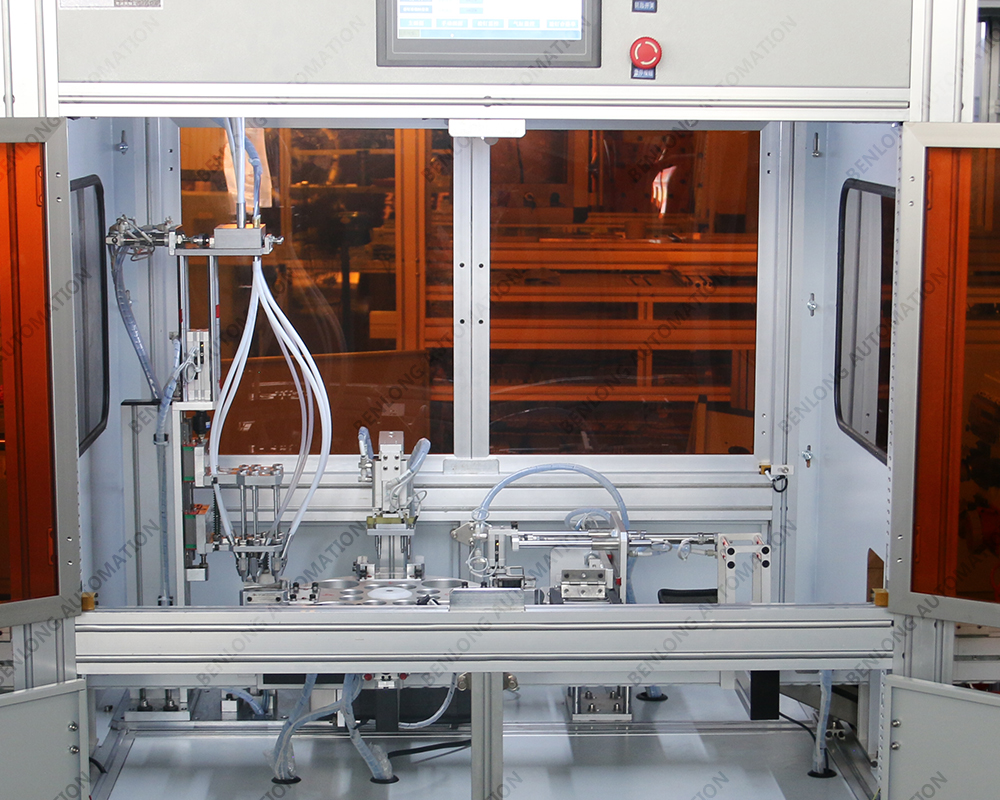

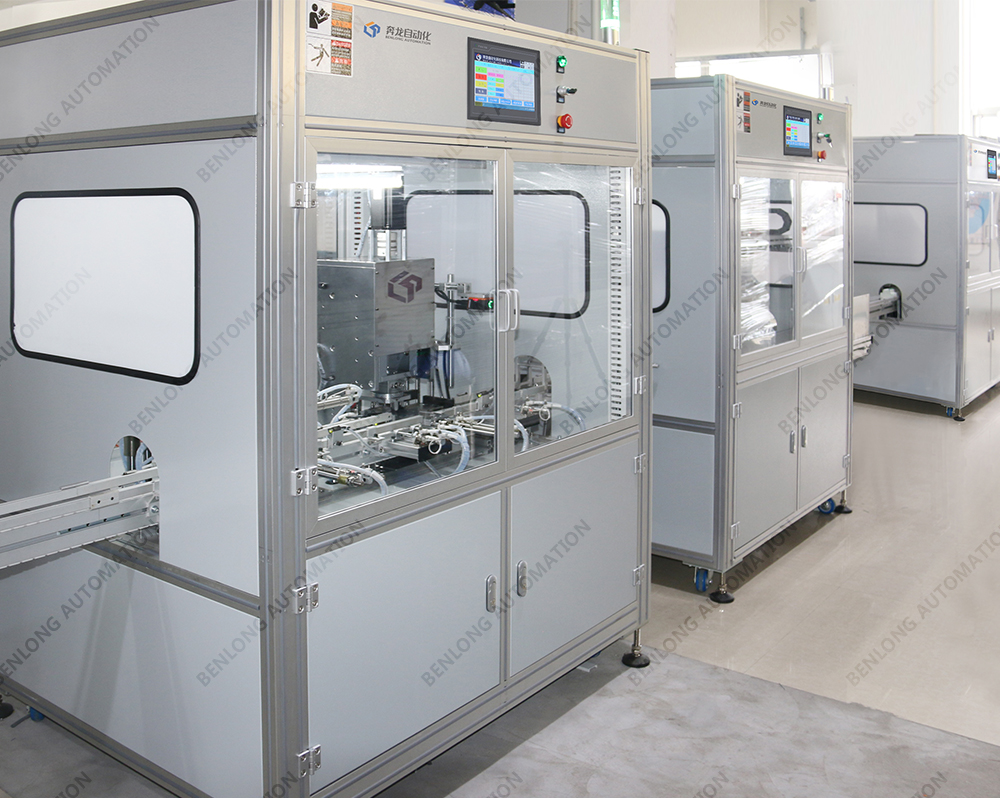

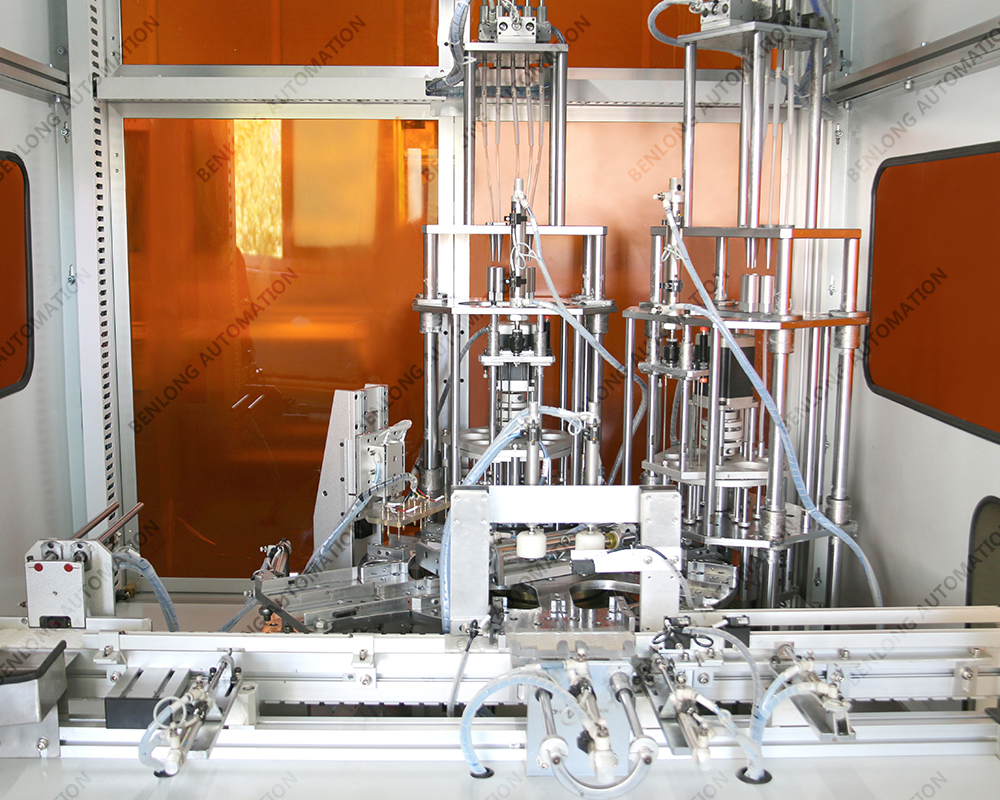

Energy meter external low voltage circuit breaker automatic piercing equipment

Short Description:

Automatic Nail Threading: the equipment can automatically connect the energy meter to the LV circuit breaker and fix them together by means of nails or rivets without manual intervention. This saves the time and labour of manual operation and improves the accuracy and consistency of nail piercing.

Positioning of piercing nails: The equipment can precisely position the piercing nails between the energy meter and the LV circuit breaker to ensure the accuracy of the piercing nails. It can have a variety of positioning methods, such as photoelectric sensors, mechanical triggering, etc., to meet different needs.

Nail piercing strength control: the device can control the strength of nail piercing according to different requirements. For flexible nailing, the strength will be relatively small so as not to damage the energy meter or circuit breaker. For the occasions that need to be fixed tightly, the strength will be relatively large to ensure the stability of piercing nails.

Safety Protection Function: The equipment has built-in safety protection function, when abnormalities are found, such as incorrect installation position of energy meters or circuit breakers, damage to nails or rivets, etc., it will automatically stop the operation and issue an alarm to avoid the use of substandard products.

Data Recording and Report Generation: The device can record the relevant data of each nail piercing, such as time, position, strength, etc., so as to facilitate the subsequent data analysis and traceability. At the same time, it can also generate relevant reports for product quality inspection and management.

In conclusion, the power meter external low-voltage circuit breaker automatic nail piercing equipment mainly realises the automatic nail piercing operation, which improves the production efficiency and accuracy of nail piercing. It has the functions of nail threading, position positioning, strength control, safety protection, data recording and report generation, and so on.

Send email to us

Photograph

Parameters

Video

Previous: Energy meter external low voltage circuit breaker automatic piercing and riveting equipment

Next: Energy meter external low-voltage circuit breaker automatic coding equipment

1. Equipment input voltage: 220V/380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility poles: 1P, 2P, 3P, 4P, 1P+module, 2P+module, 3P+module, 4P+module.
3. Equipment production rhythm: ≤ 10 seconds per pole.
4. The same shelf product can be switched between different poles with just one click or by scanning the code; Different shell products require manual replacement of molds or fixtures.

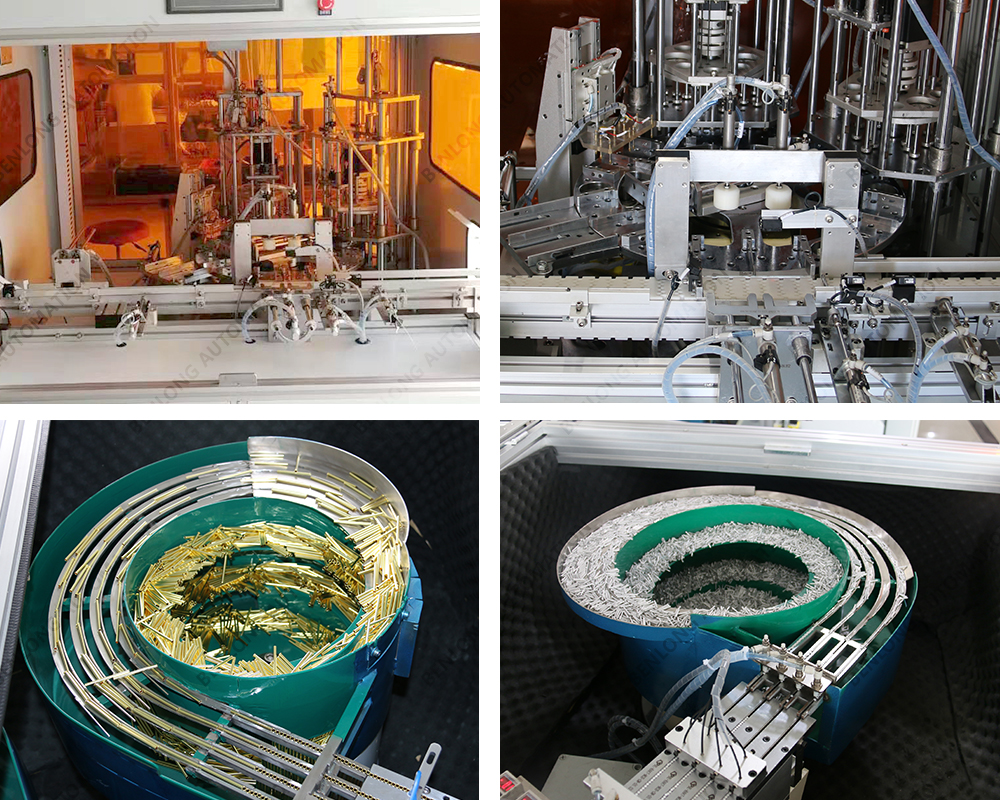

5. The rivet feeding method is vibration disc feeding; Noise ≤ 80 decibels; The number of rivets and molds can be customized according to the product model.
6. The speed and vacuum degree parameters of the nail splitting mechanism can be set arbitrarily.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
10. The equipment can be optionally equipped with functions such as the Smart Energy Analysis and Energy Conservation Management System and the Smart Equipment Service Big Data Cloud Platform.
11. Having independent independent intellectual property rights.
