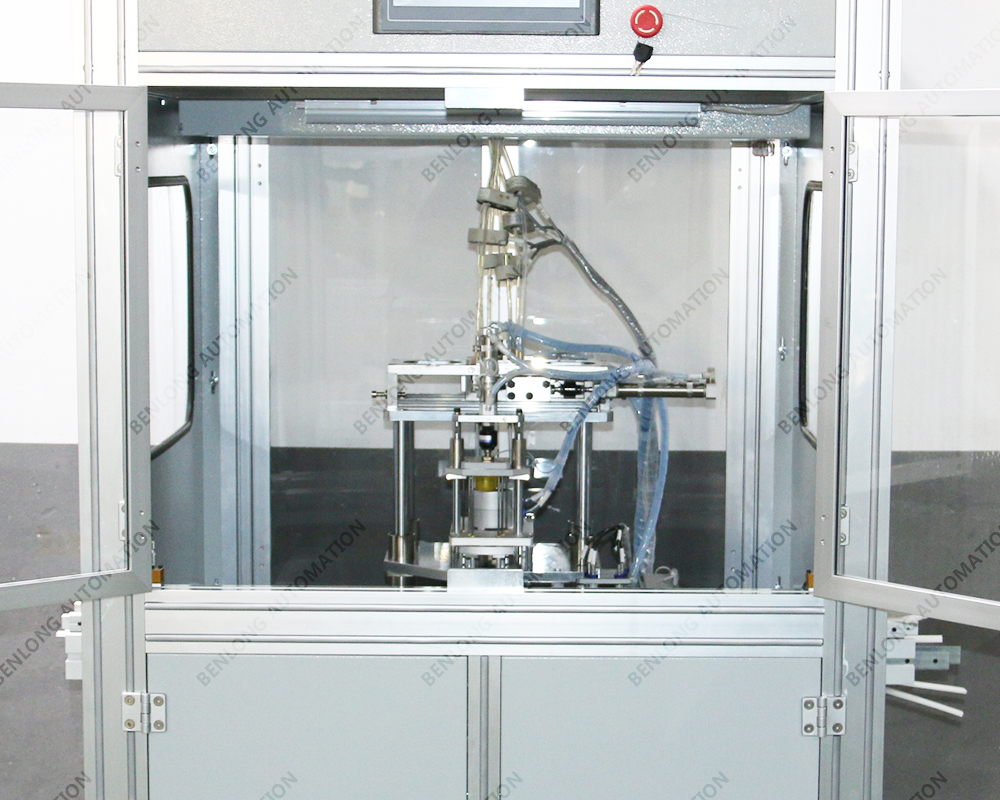

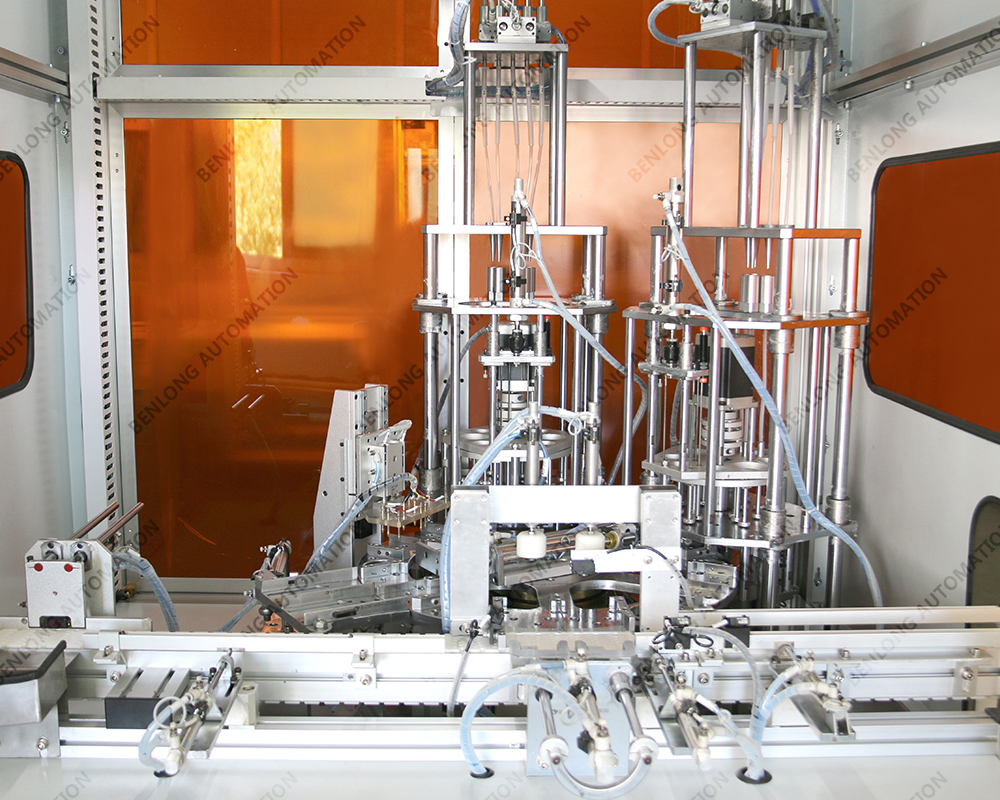

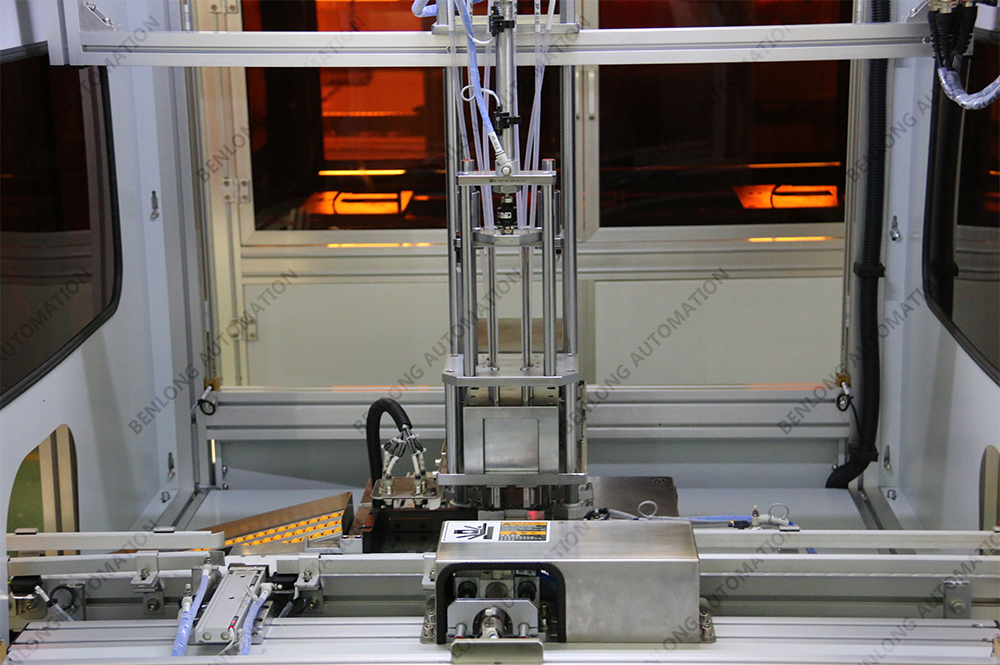

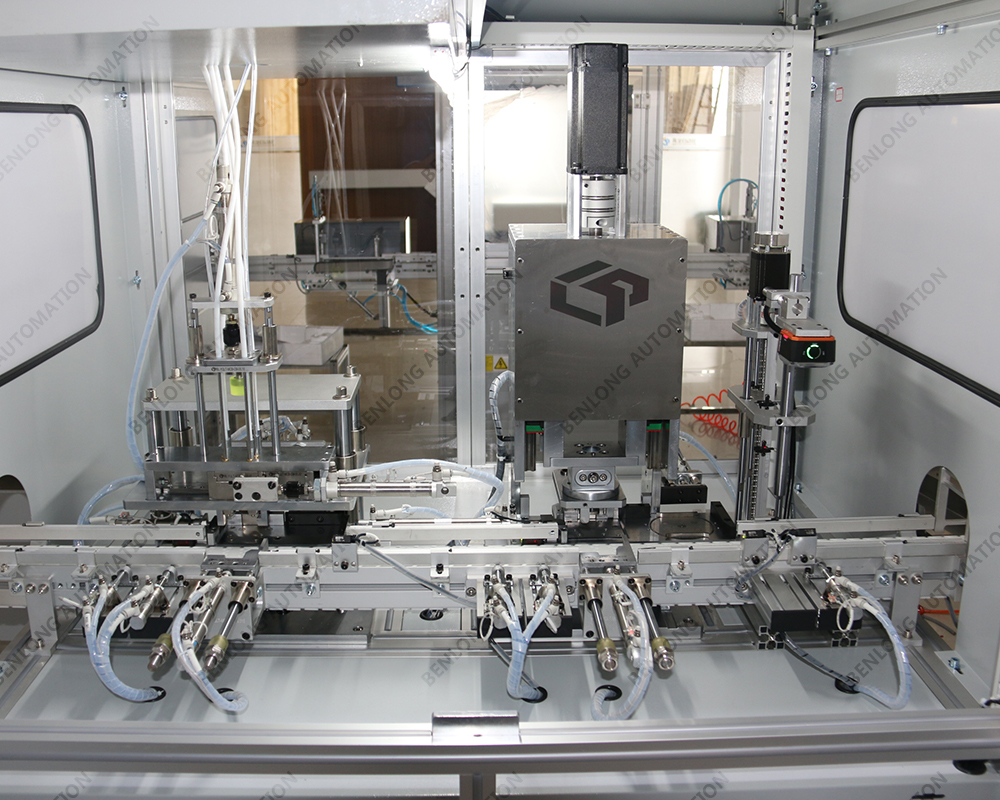

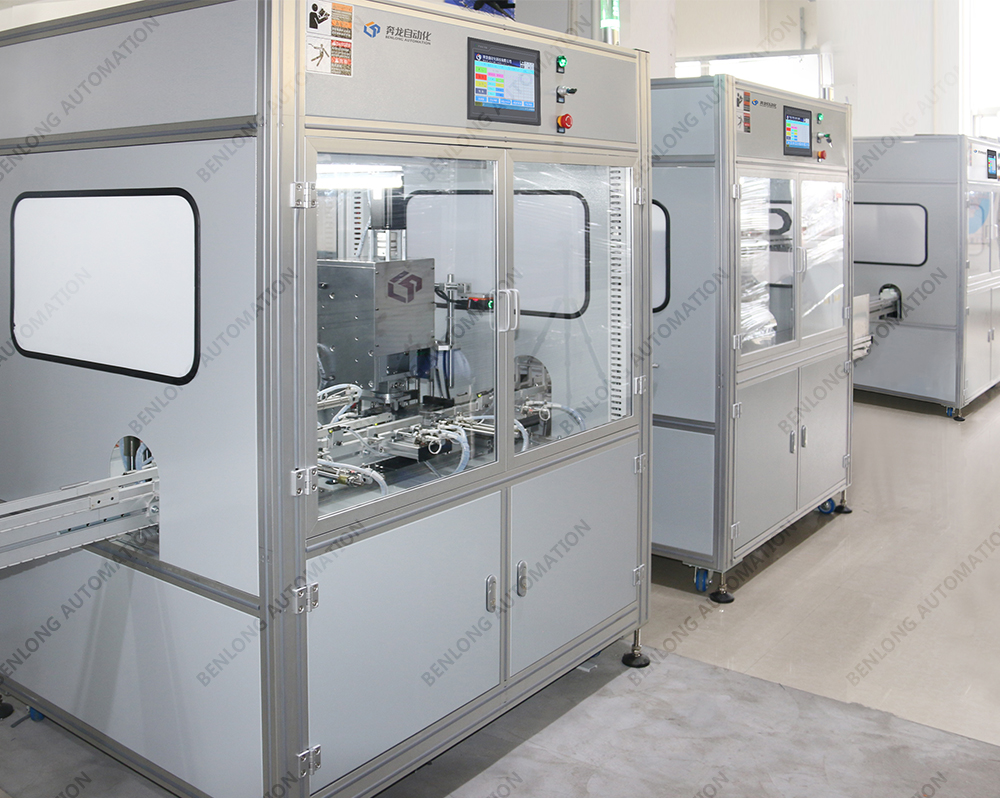

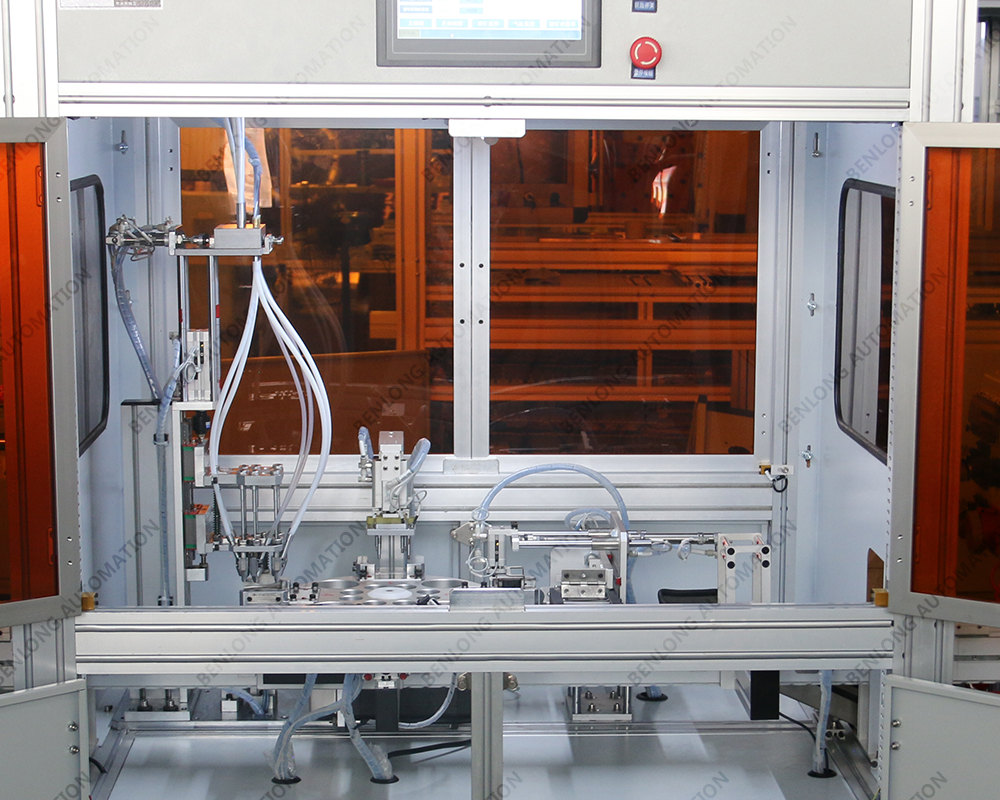

Energy meter external low voltage circuit breaker automatic piercing and riveting equipment

Short Description:

Automatic riveting: the equipment can automatically insert the nails into the terminals between the circuit breaker and the power meter to complete the connection, improving production efficiency and quality.

Accurate nail penetration: Through precise positioning and control, the equipment can ensure that the nail accurately passes through the terminals and is fixed in the corresponding position, avoiding nail breakage or deviation.

Automatic detection: The equipment can automatically detect the quality and connection status of rivets to ensure a firm and reliable connection and prevent circuit failures caused by poor connections.

Troubleshooting: The equipment is equipped with troubleshooting function, which can detect and identify possible problems such as broken nails and skewed nail penetration, and carry out timely alarm and processing.

Data Recording and Management: The equipment is able to record the data of each riveting, including time, position, quality, etc., which is convenient for subsequent quality tracking and management.

Convenient operation: the equipment is equipped with user-friendly operation interface and control system, which allows you to set the riveting parameters and speed to suit different riveting needs.

Send email to us

Photograph

Parameters

Video

Previous: Energy meter external low voltage circuit breaker automatic electric operation comprehensive testing equipment

Next: Energy meter external low voltage circuit breaker manual module assembly assembly equipment

1. Equipment input voltage; 220V/380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility poles: 1P+module, 2P+module, 3P+module, 4P+module.
3. Equipment production rhythm: ≤ 10 seconds per pole.
4. The same shelf product can be switched between different poles with just one click or by scanning the code; Different shell products require manual replacement of molds or fixtures.

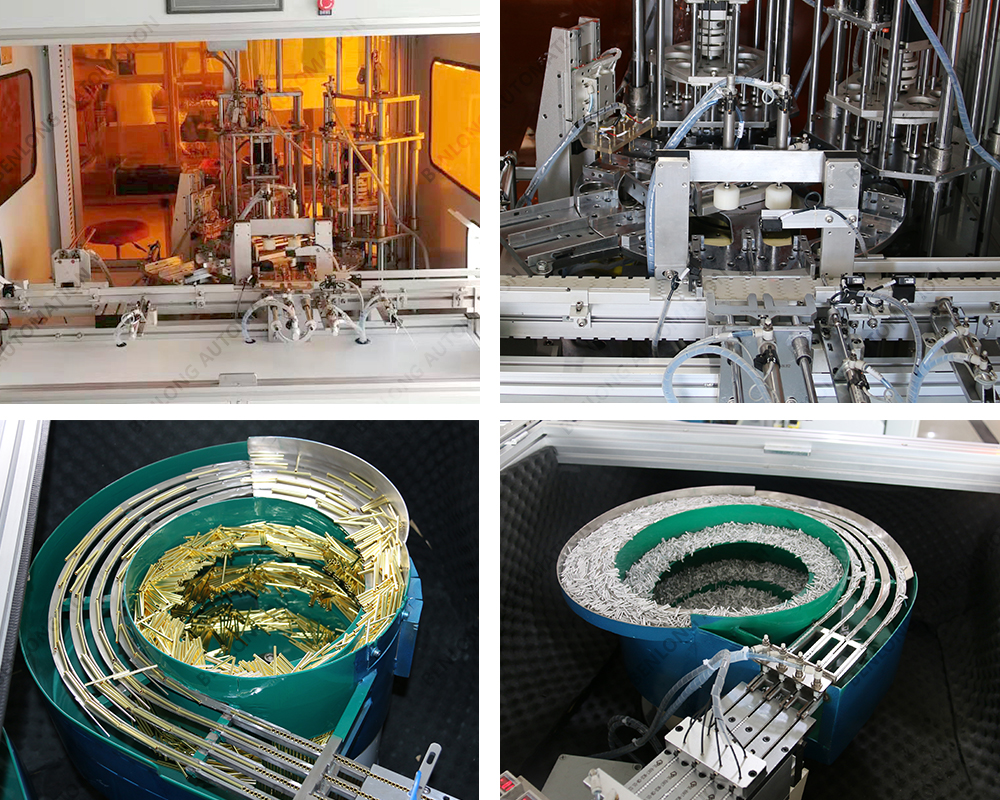

5. The rivet feeding method is vibration disc feeding; Noise ≤ 80 decibels; The number of rivets and molds can be customized according to the product model.
6. The speed and vacuum degree parameters of the nail splitting mechanism can be set arbitrarily.
7. There are two optional riveting forms: cam riveting and servo riveting.
8. The riveting speed parameters can be set arbitrarily.
9. The equipment has alarm display functions such as fault alarm and pressure monitoring.
10. There are two operating systems available: Chinese and English.
11. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
12. The equipment can be optionally equipped with functions such as the Smart Energy Analysis and Energy Conservation Management System and the Smart Equipment Service Big Data Cloud Platform.
13. Having independent independent intellectual property rights.
