Energy meter external low voltage circuit breaker automatic labelling equipment

Short Description:

Automatic identification and detection: the device can automatically identify the relevant information on the low-voltage circuit breaker external to the power meter, such as the model number, serial number, etc., by means of image recognition technology. At the same time, the equipment can automatically detect the circuit breaker to ensure that the quality of the circuit breaker is qualified.

Automatic labelling: the equipment can accurately and efficiently affix the required labels on the circuit breaker according to the preset procedures and rules. The labels can include product model, production date, safety certification symbols, etc.

Label data management: The device can automatically manage label data, such as storing and accessing label information. This facilitates subsequent label enquiry and traceability.

Operation interface: The device has a user-friendly operation interface, which can facilitate the operator to set up, debug and monitor the device. The operator interface can display the status of the equipment, operating conditions and fault information.

Fault Detection and Alarm: The equipment is equipped with fault detection and alarm functions, once the equipment is abnormal or faulty, it can send out alarm signals in time and provide fault diagnosis information, which is convenient for maintenance personnel to deal with.

Data recording and statistics: the equipment can record the data of each labelling, including the date of labelling, the number of labels, etc.. Through data analysis and statistics, you can understand the working condition and capacity of the equipment.

Automated production line interface: the equipment can be connected with the automated production line to achieve seamless product integration and data interaction and improve production efficiency and quality.

Send email to us

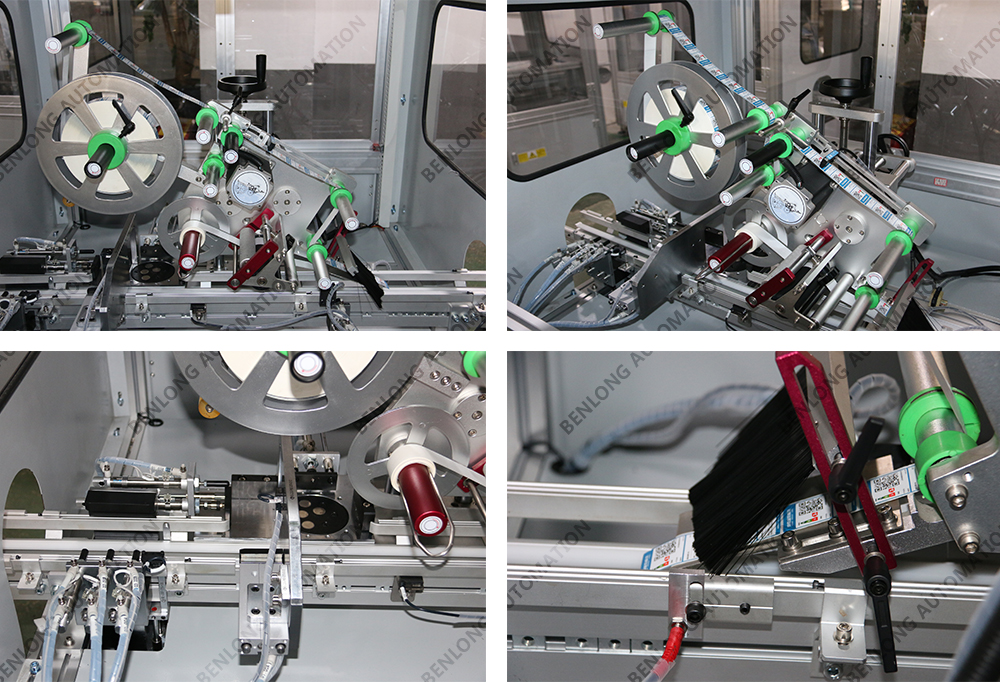

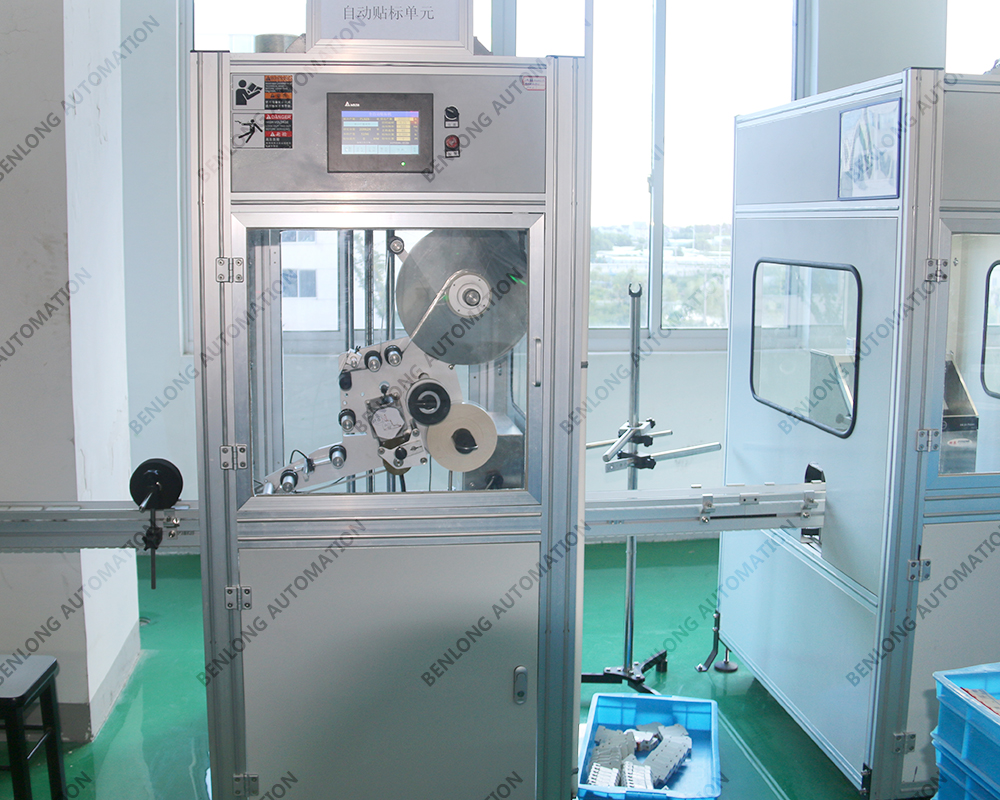

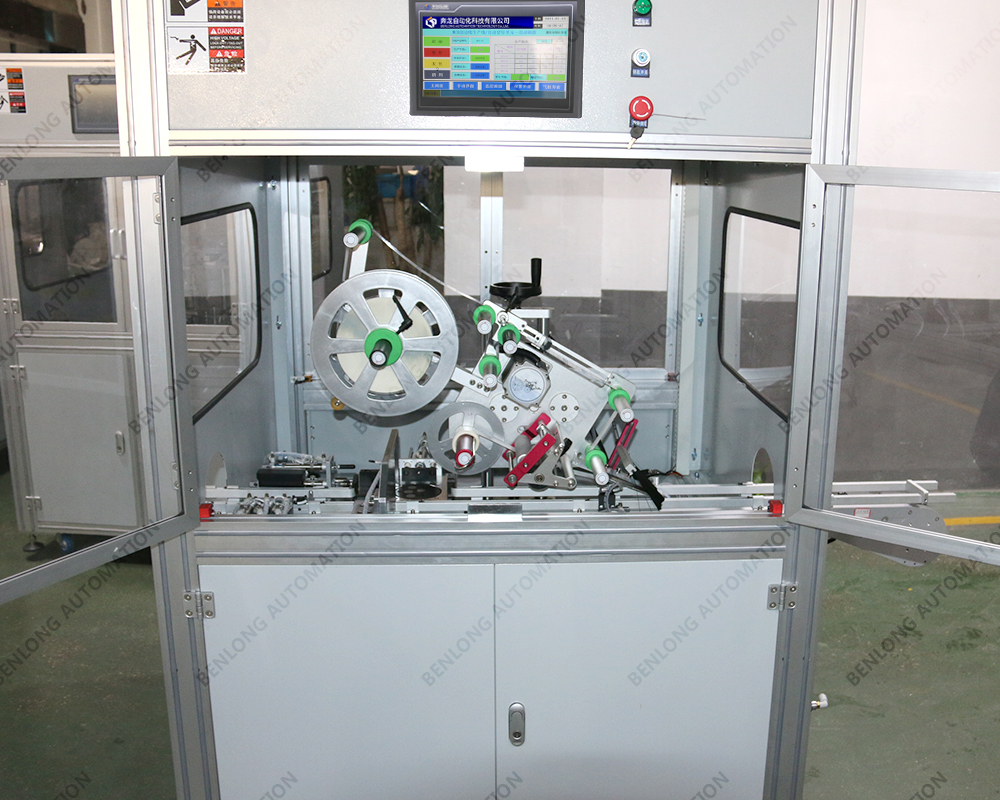

Photograph

Parameters

Video

Previous: Energy meter external low voltage circuit breaker robot + automatic aging and testing equipment

Next: Energy meter external low voltage circuit breaker robot + automatic laser marking equipment

1. Equipment input voltage; 220V/380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility poles: 1P+module, 2P+module, 3P+module, 4P+module.
3. Equipment production rhythm: ≤ 10 seconds per pole.
4. The same shell frame product can switch between different poles with just one click or scan switching; Different shell products require manual replacement of molds or fixtures.
5. The equipment fixtures can be customized according to the product model.
6. The label is in the roll material state, and the labeling content can be changed at will.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
10. The equipment can be optionally equipped with functions such as the Smart Energy Analysis and Energy Conservation Management System and the Smart Equipment Service Big Data Cloud Platform.
11. Having independent independent intellectual property rights.
