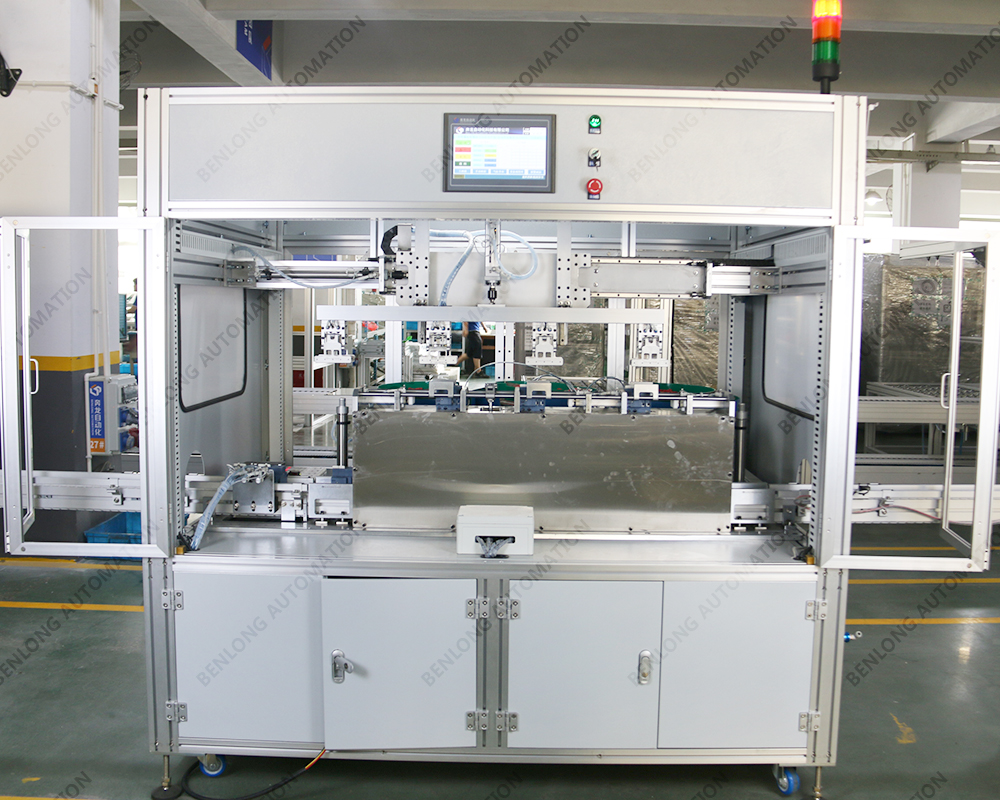

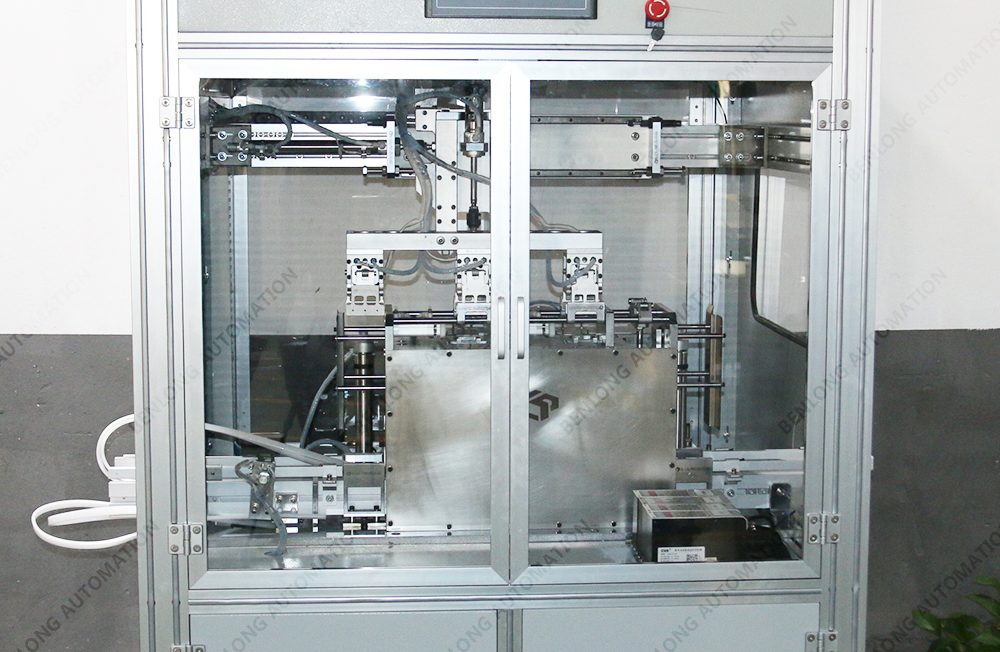

Energy meter external low-voltage circuit breaker automatic assembly stops equipment

Short Description:

Determine the position: the equipment can accurately determine the position of the stop parts and place them in the right position.

Automatic feeding: the equipment is equipped with an automatic feeding system, which is able to automatically feed the stops to the assembly position, improving the assembly efficiency.

Strong fixing: The equipment can use appropriate force and assembly method to fix the stopper firmly on the circuit breaker to ensure its stability and reliability.

Automatic alignment: the equipment is equipped with automatic alignment function, which can accurately align the stopper with other parts of the circuit breaker to ensure the precision and quality of assembly.

Quality inspection: the equipment can carry out quality inspection on the assembled circuit breaker to ensure the quality and pass rate of the assembly of the stopper.

Troubleshooting and alarm function: the equipment is equipped with a troubleshooting and alarm system, which can provide timely alarm and troubleshooting information once abnormalities are found in the assembly process, thus facilitating repair and maintenance.

Data recording and tracing: the equipment can record the key parameters and quality information in the assembly process of each circuit breaker, and establish a complete data recording and tracing system, which is conducive to product quality tracing and after-sales service.

User interface and operation control: the equipment is equipped with user-friendly interface and operation control system, which is convenient for operators to set parameters, operation monitoring and fault troubleshooting.

Send email to us

Photograph

Parameters

Video

Previous: Energy meter external low voltage circuit breaker automatic pad printing equipment

Next: Energy meter external low voltage circuit breaker automatic electric operation comprehensive testing equipment

1. Equipment input voltage; 380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility poles: 1P+module, 2P+module, 3P+module, 4P+module.
3. Equipment production rhythm: ≤ 10 seconds per pole.
4. The same shelf product can be switched between different poles with just one click or by scanning the code; Different shell products require manual replacement of molds or fixtures.
5. There are two optional methods for detecting defective products: CCD visual inspection or fiber optic sensor detection.

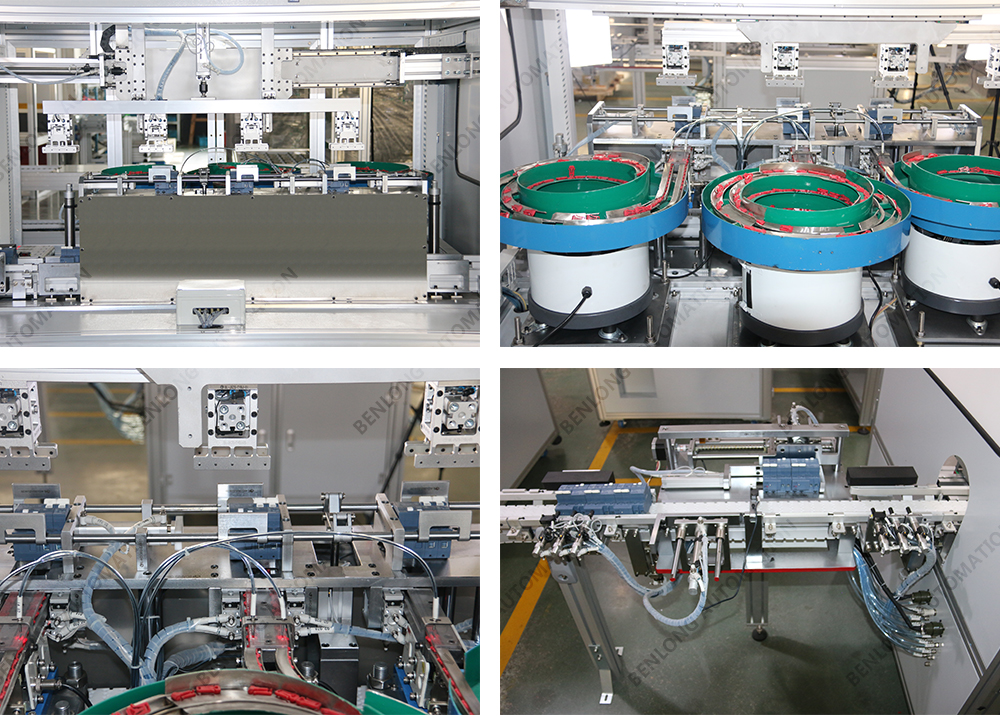

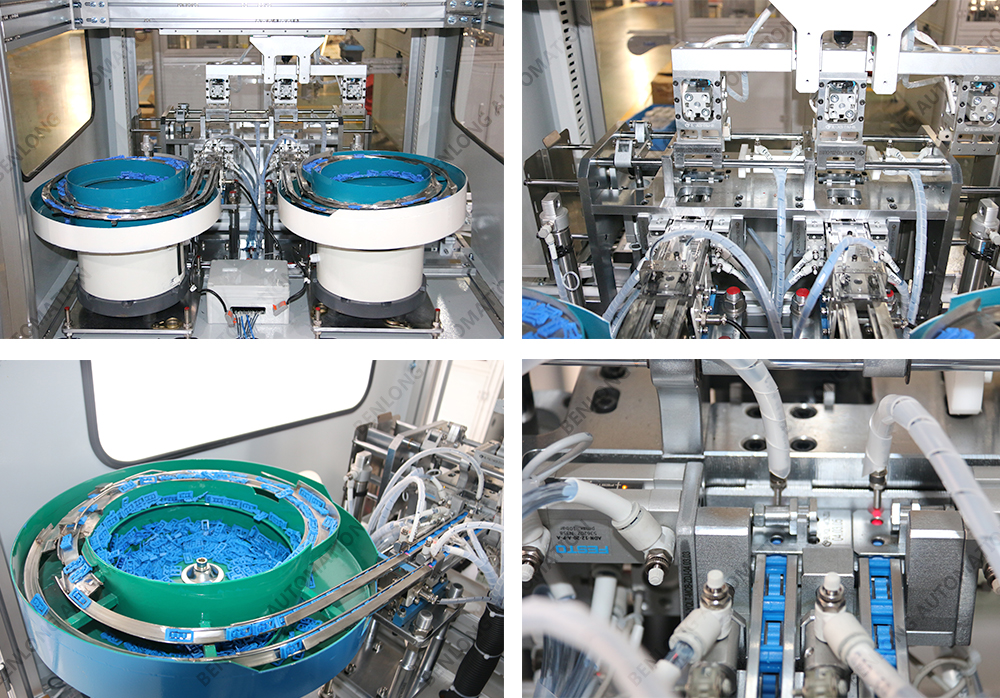

6. The product is assembled in a horizontal state, and the stopper is supplied by a vibrating disc; Noise ≤ 80 decibels.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
10. The equipment can be optionally equipped with functions such as the Smart Energy Analysis and Energy Conservation Management System and the Smart Equipment Service Big Data Cloud Platform.
11. Having independent independent intellectual property rights.
