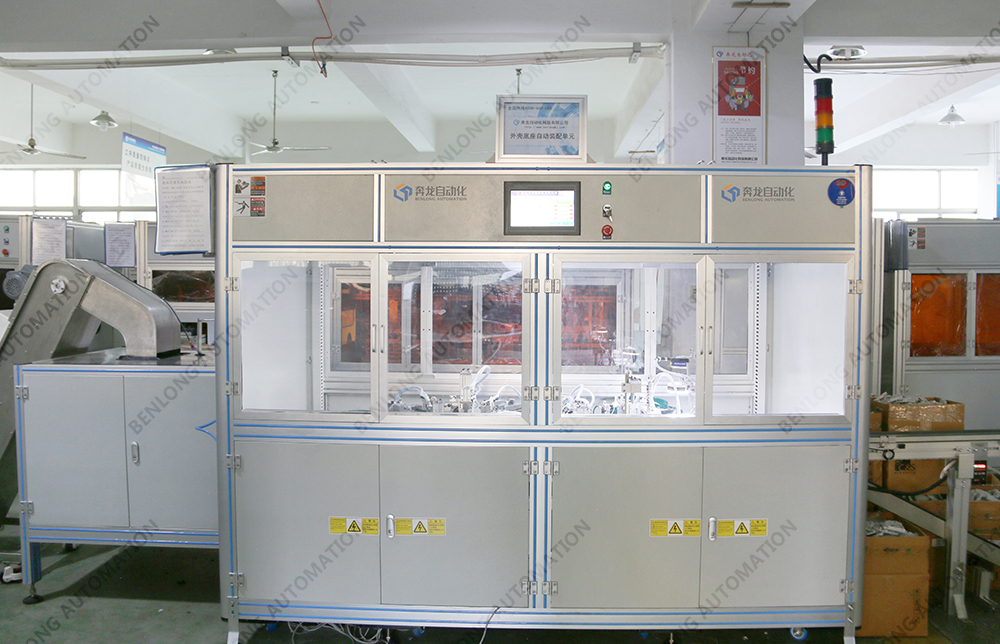

Energy meter external low voltage circuit breaker automatic assembly equipment

Short Description:

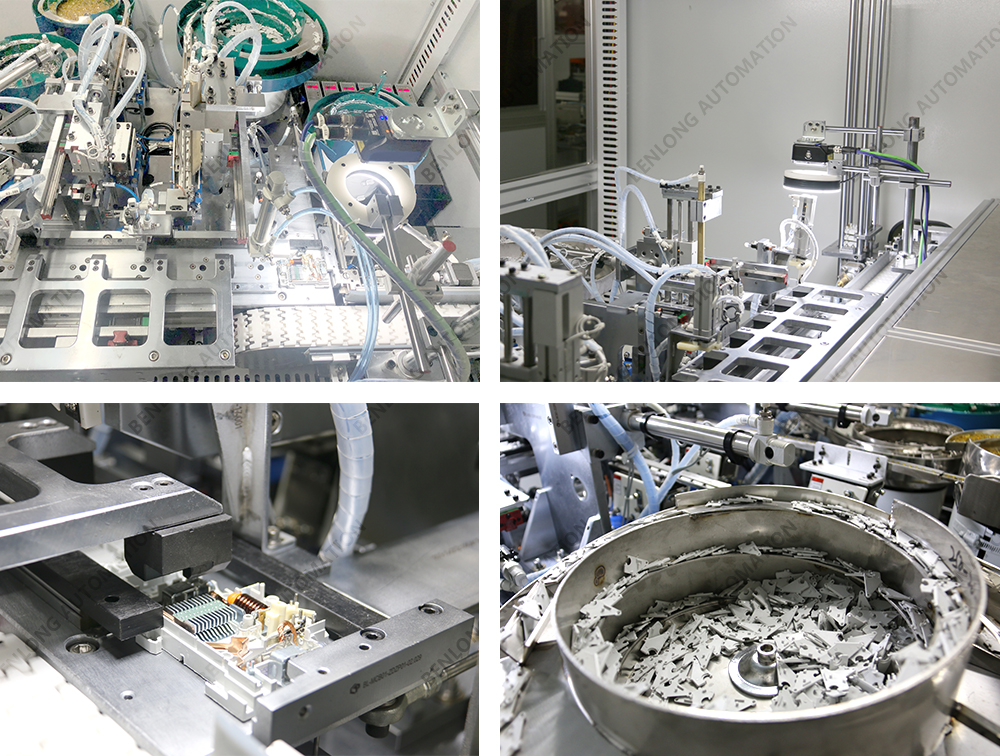

Automatic material supply: the equipment can automatically supply the parts and materials required for the external low-voltage circuit breaker of the power meter to ensure the continuity and stability of the assembly process.

Automatic positioning: the equipment is equipped with a precise positioning system, which can automatically position the parts and components of the external low-voltage circuit breaker of the power meter accurately and ensure the accuracy and quality of assembly.

Automatic assembly: the equipment can automatically assemble the parts of the external low-voltage circuit breaker of the power meter according to the preset procedure, including the process of installation, fixing and connection.

Automatic welding: the equipment is equipped with automatic welding system, which can automatically complete the welding process of the external low-voltage circuit breaker of the power meter to ensure the firmness and stability of the connection.

Automatic inspection: the equipment is equipped with sensors or vision system, which can automatically inspect the assembly quality of the external low-voltage circuit breaker of the power meter, including the size, position, welding quality and other aspects of the inspection.

Automatic debugging: the equipment can automatically carry out the functional debugging of external low-voltage circuit breakers for power meters to ensure that the performance of the assembled products meets the requirements.

Automatic sorting: the equipment can sort and classify the completed external low-voltage circuit breakers of power meters according to the regulations, which is convenient for the subsequent packaging and delivery.

Send email to us

Photograph

Parameters

Video

Previous: Energy meter external low voltage circuit breaker automatic multi-pole assembling equipment

Next: SPD Automatic assembly equipment for surge protectors Ⅱ

1. Equipment input voltage: 220V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility poles: 1P, 2P, 3P, 4P, 1P+module, 2P+module, 3P+module, 4P+module.
3. Equipment production rhythm: ≤ 10 seconds per pole.
4. The same shelf product can be switched between different poles with just one click or by scanning the code; Switching products requires manual replacement of molds or fixtures.
5. Assembly methods: manual assembly and automatic assembly can be freely selected.
6. The equipment fixtures can be customized according to the product model.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
10. The equipment can be optionally equipped with functions such as the Smart Energy Analysis and Energy Conservation Management System and the Smart Equipment Service Big Data Cloud Platform.
11. Having independent independent intellectual property rights.
