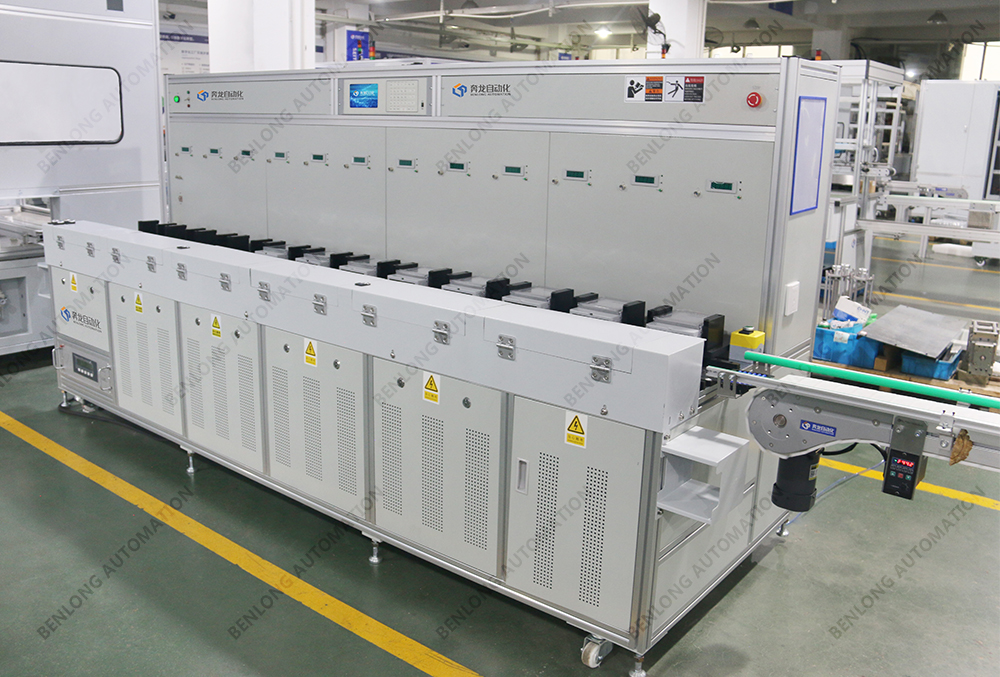

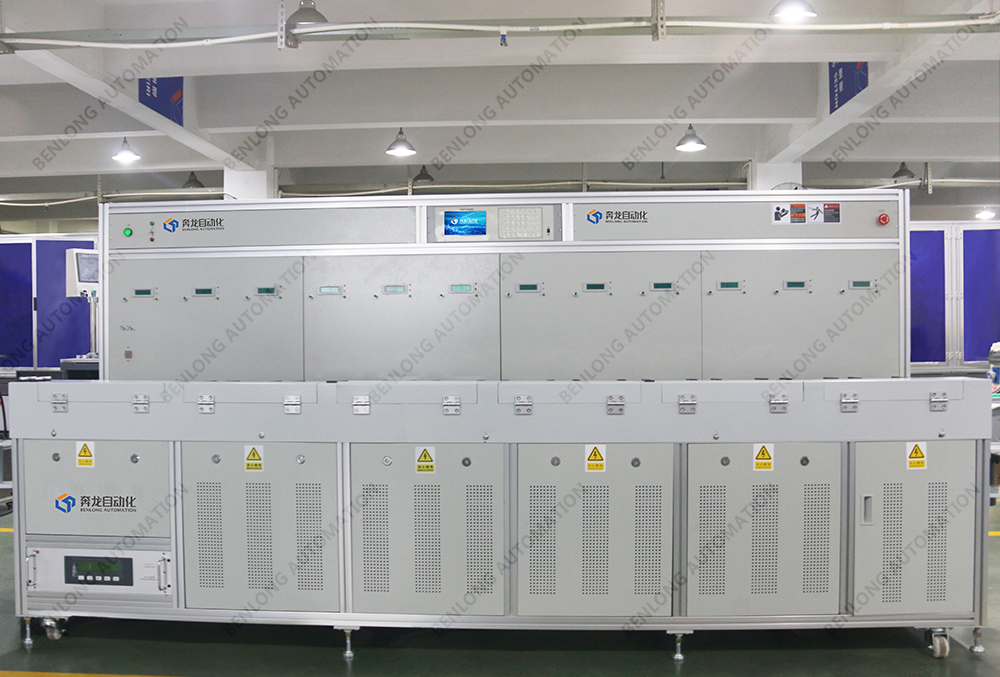

Electricity meter Smart meter 12-station semi-automatic initial calibration unit

Short Description:

Online detection and calibration:
The equipment has functions such as daily timing detection, error calibration, voltage resistance detection, full screen detection, and comprehensive characteristic detection, which can comprehensively detect various performance indicators of the electricity meter.
Through technologies such as laser marking and automatic labeling, the equipment can complete the identification and information recording of electric meters.
Communication and detection functions:
The semi-automatic recalibration equipment for electric meters supports carrier detection, infrared function detection, Bluetooth communication detection, etc., to ensure that the communication performance of the electric meter meets the requirements.
It can measure the changes caused by factors such as voltage, frequency, harmonics, reverse phase sequence, voltage imbalance, and external magnetic field.
Smart management and data analysis:
The equipment is equipped with a smart energy analysis and energy-saving management system, which can conduct in-depth analysis of verification data and provide decision support for energy management.
Through the intelligent equipment service big data cloud platform, devices can achieve remote monitoring, data storage, and parameter formulation functions.
Security and alarm system:
The equipment has alarm display functions such as fault alarm and pressure monitoring, ensuring timely detection and handling of abnormal situations during the calibration process.
The equipment is also equipped with a shortage alarm system, which can automatically issue an alarm signal when the required materials for verification are insufficient.
Compatibility and Customization:
The semi-automatic recalibration equipment for electric meters is compatible with various specifications of electric meters such as State Grid/Southern Power Grid, single-phase electric energy meter series, three-phase electric energy meter series, etc.
The device supports customized services and can be configured and parameter adjusted according to the actual needs of customers.

Send email to us

Photograph

parameter

Video

Assembly, online detection, real-time monitoring, quality traceability, barcode recognition, component life monitoring, data storage, MES system and ERP system networking, parameter arbitrary formula, smart energy analysis and energy-saving management system, intelligent equipment service, etc. It has the functions of automatic product feeding base, assembly conductive column, assembly circuit board, soldering, locking screw, assembly sealing ring, assembly glass cover, assembly outer ring, locking screw, characteristic detection, daily timing detection, error calibration, pressure resistance detection, full screen detection, comprehensive characteristic detection, laser engraving, automatic labeling, carrier detection, infrared function detection, Bluetooth communication detection, recalibration detection, assembly nameplate, scanning asset information data comparison, qualified and unqualified differentiation, packaging, palletizing, AGV logistics, shortage alarm and other processes. Features such as big data cloud platform.

Previous: MCB IoT intelligent circuit breaker automatic electronic comprehensive testing unit

Next:

1. Equipment input voltage 380V ± 10%, 50Hz; ±1Hz；
2. Equipment compatibility: State Grid/South Grid, single-phase energy meter series, three-phase energy meter series.
3. Equipment production cycle time: 30 seconds per unit, and can be customized according to customer requirements.
4. The same shelf product can be switched with one click or scan the code to switch between different pole numbers; Switching between different shell products requires manual replacement of molds or fixtures.
5. Assembly methods: manual assembly and automatic assembly are optional.
6. Equipment fixtures can be customized according to product models.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems: Chinese version and English version.
9. All core components are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
10. The device can be equipped with functions such as “Smart Energy Analysis and Energy Management System” and “Intelligent Equipment Service Big Data Cloud Platform”.
11. Having independent and proprietary intellectual property rights.
