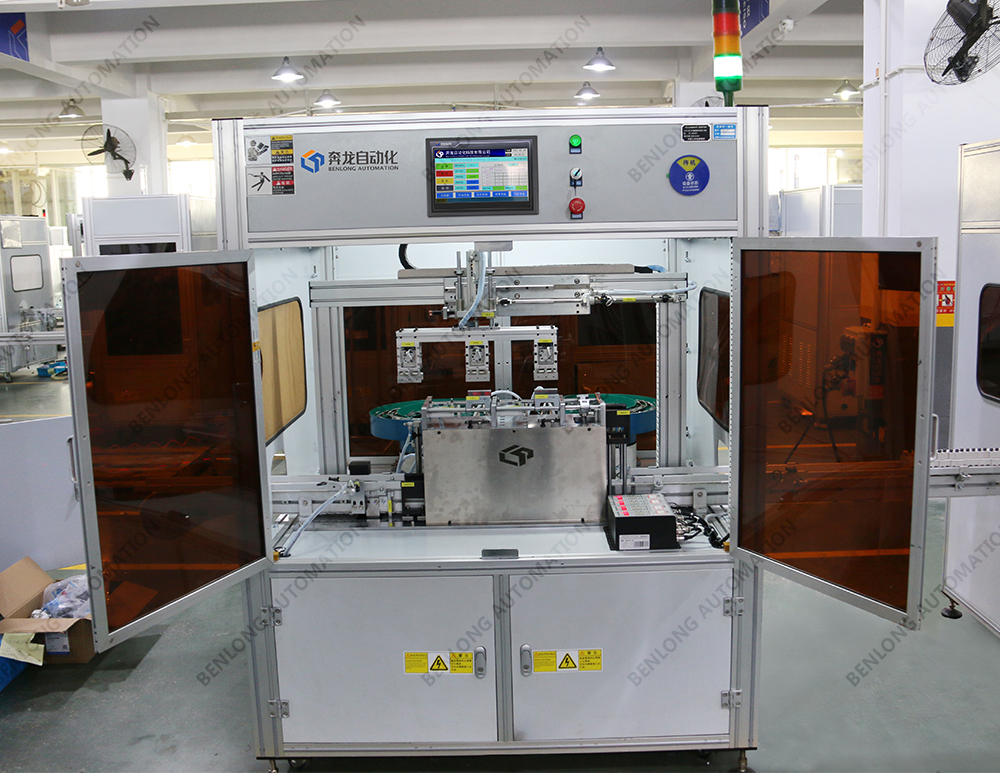

Disconnecting switch automatic assembly stopper equipment

1, equipment input voltage 380V ± 10%, 50Hz; ± 1Hz;
2, equipment compatible poles: 1P, 2P, 3P, 4P, 1P + module, 2P + module, 3P + module, 4P + module
3, equipment production beat: 1 second / pole, 1.2 seconds / pole, 1.5 seconds / pole, 2 seconds / pole, 3 seconds / pole; five different specifications of the equipment.
4, the same shell frame products, different poles can be switched by one key or sweep code switching; different shell frame products need to manually replace the mold or fixture.
5、Defective product detection: CCD visual inspection or fiber optic sensor detection is optional.

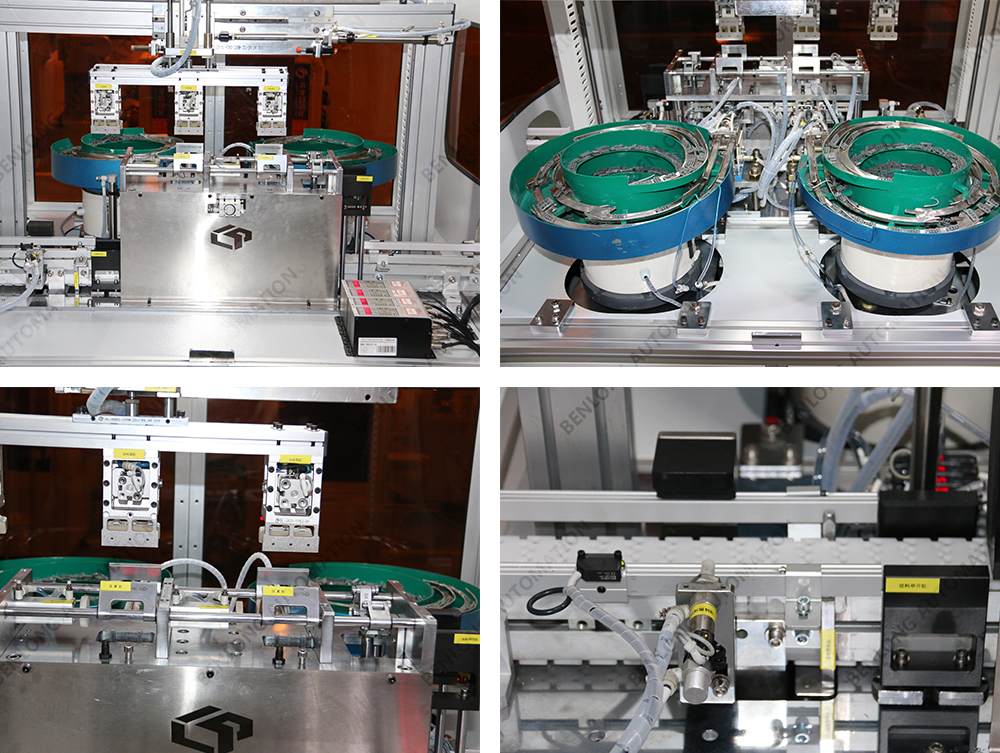

6、Products are assembled in a horizontal state, and the stopping parts are fed by vibrating disk; the noise is ≤80dB.
7、Equipment with fault alarm, pressure monitoring and other alarm display function.
8, Chinese version and English version of the two operating systems.
9、All core parts are imported from Italy, Sweden, Germany, Japan, the United States, Taiwan and other countries and regions.
10, the equipment can be optional “intelligent energy analysis and energy saving management system” and “intelligent equipment service big data cloud platform” and other functions.
11、Independent independent intellectual property rights
