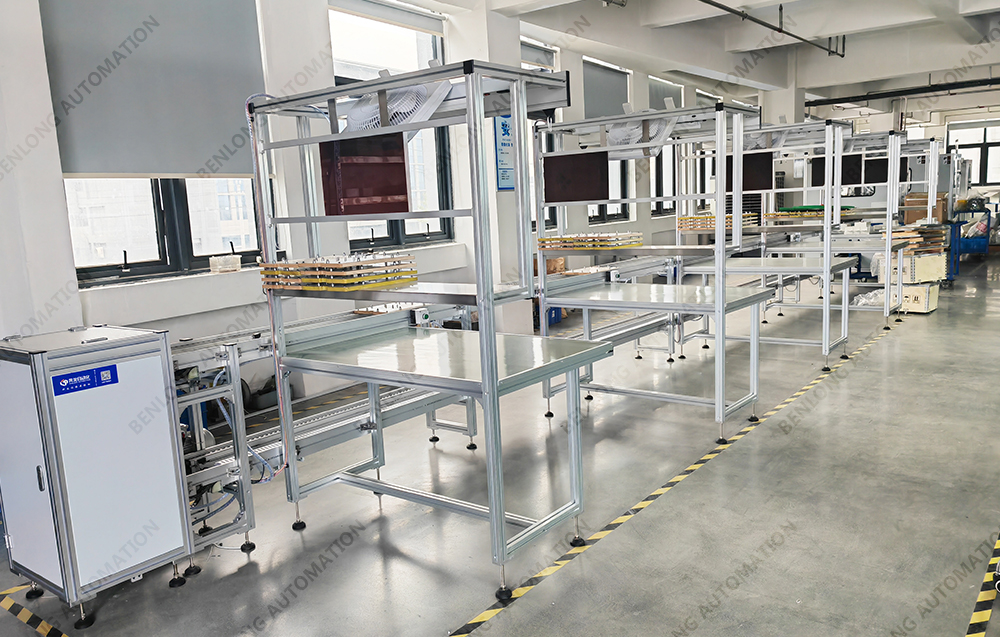

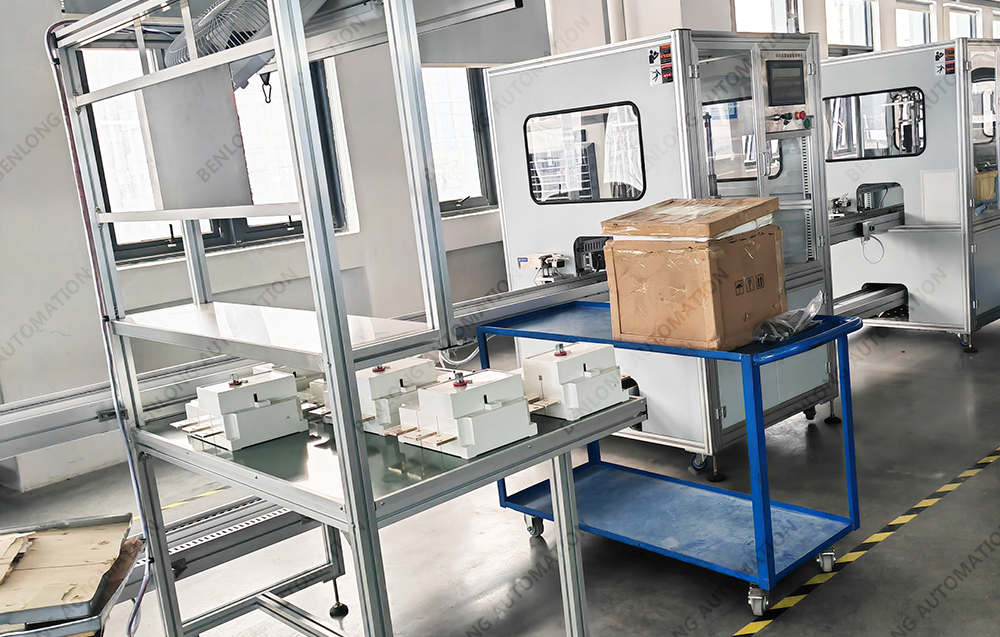

Disconnect switch manual assembly bench

Short Description:

Parts storage: The workbench provides a reasonably arranged parts storage area, which makes it easy for the operator to access the parts required for the assembly of the disconnectors and reduces the pick-up time and operation steps.

Parts Positioning: The workbench is equipped with a parts positioning device adapted to the disconnectors, which helps the operator to place the parts accurately. This ensures accuracy and consistency of assembly.

Assembly Tool Support: The workbench is equipped with a variety of tools required to assemble the disconnectors, including wrenches, screwdrivers, pliers, etc., to facilitate the operator’s assembly work. The workbench may also be equipped with power tools to improve assembly efficiency.

Process control: The workbench may be equipped with process control devices to guide and record each process during assembly. Operators can perform each process as needed and record the completion of each process to ensure assembly quality and traceability.

Efficiency Improvement: The design of the workbench takes into account the ergonomic needs of the operator, providing the right working height and angle to minimize fatigue and improve work efficiency. In addition, it may be equipped with certain automation devices, such as automatic feeding devices, to improve assembly speed and accuracy.

Quality Inspection: The workbench may be equipped with a quality inspection device to inspect the quality and performance of the assembled disconnectors. Operators may be able to test the products after assembly to ensure that they meet the relevant standards and requirements.

Send email to us

Photograph

Parameters

Video

Previous: Automatic circuit resistance testing equipment for disconnecting switches

Next: Time switch aging test equipment

1, equipment input voltage 380V ± 10%, 50Hz; ± 1Hz;
2, equipment compatible poles: 2P, 3P, 4P, 63 series, 125 series, 250 series, 400 series, 630 series, 800 series.
3, equipment production beat: 10 seconds / unit, 20 seconds / unit, 30 seconds / unit three optional.
4, the same shell frame products, different poles can be switched by one key or sweep code switching; switching different shell frame products need to manually replace the mold or fixture.
5、Assembly mode: manual assembly, automatic assembly can be optional.
6、Equipment fixture can be customized according to the product model.
7、Equipment with fault alarm, pressure monitoring and other alarm display function.
8, Chinese and English version of the two operating systems.
All core parts are imported from Italy, Sweden, Germany, Japan, the United States, Taiwan and other countries and regions.
10、Equipment can be equipped with optional functions such as “Intelligent Energy Analysis and Energy Saving Management System” and “Intelligent Equipment Service Big Data Cloud Platform”.
11、It has independent independent intellectual property rights.
