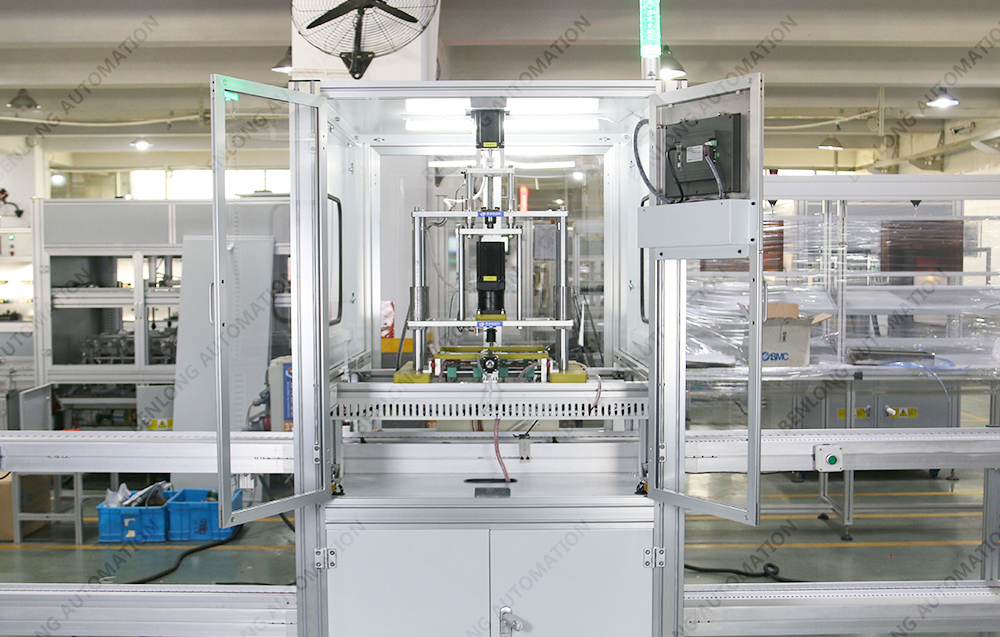

Automatic voltage withstand and synchronization testing equipment for disconnecting switches

Short Description:

Voltage withstand test function: The automatic voltage withstand test equipment for disconnecting switches is capable of carrying out high-voltage tests, which are used to test the insulation performance of switches at rated voltage. By applying a high voltage and monitoring the changes in current and other parameters, it is possible to determine whether the switch has sufficient voltage withstand capability.

Synchronization test function: The automatic synchronization test equipment for disconnecting switches is capable of performing synchronization tests, i.e. testing the time synchronization of the switch during disconnection or contact. By means of precise timers and sensors, the contact and disconnection times of the switch can be measured and compared with preset values to determine whether the switch meets the synchronization requirements.

Automated operation: The automatic voltage withstand and synchronization testing equipment for isolation switches can realize automated testing operation, including power supply control, test parameter setting, data acquisition and result analysis functions. This can improve the accuracy and efficiency of testing and reduce the error and time-consuming manual operation.

Data recording and analysis: The device can record the data of voltage withstand and synchronization test and perform data analysis. Through data analysis, the electrical performance of the switch can be evaluated, potential problems can be detected, and reference can be provided for maintenance and improvement.

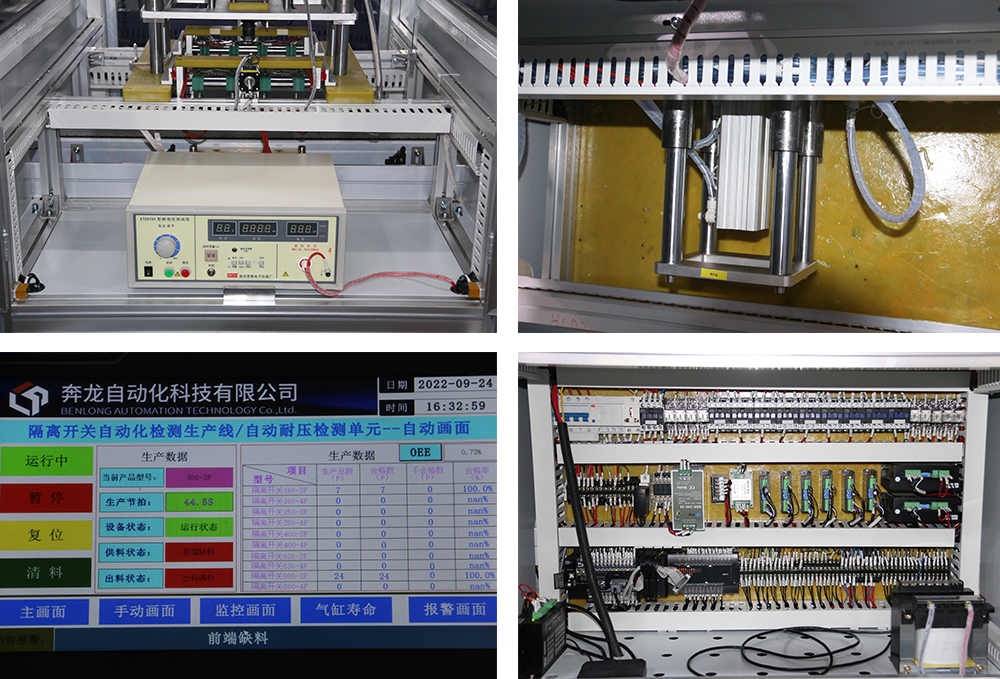

Status display and alarm: automatic voltage withstand and synchronization testing equipment for isolation switches usually has a good user interface, which can display test status, parameters and results in real time. During the testing process, if any abnormality or out of the set range is found, the equipment will issue an alarm or prompt to remind the operator to take corresponding measures.

To summarize, the isolation

Send email to us

Photograph

Parameters

Video

Previous: Disconnecting switch automatic on-off testing equipment

Next: Automatic circuit resistance testing equipment for disconnecting switches

1, equipment input voltage 380V ± 10%, 50Hz; ± 1Hz;
2, equipment compatible poles: 2P, 3P, 4P, 63 series, 125 series, 250 series, 400 series, 630 series, 800 series.
3, equipment production beat: 10 seconds / unit, 20 seconds / unit, 30 seconds / unit three optional.
4, the same shell frame products, different poles can be switched by one key or sweep code switching; switching different shell frame products need to manually replace the mold or fixture.
5、Assembly mode: manual assembly, automatic assembly can be optional.
6、Equipment fixture can be customized according to the product model.
7、Equipment with fault alarm, pressure monitoring and other alarm display function.
8, Chinese and English version of the two operating systems.
All core parts are imported from Italy, Sweden, Germany, Japan, the United States, Taiwan and other countries and regions.
10、Equipment can be equipped with optional functions such as “Intelligent Energy Analysis and Energy Saving Management System” and “Intelligent Equipment Service Big Data Cloud Platform”.
11、It has independent independent intellectual property rights.
