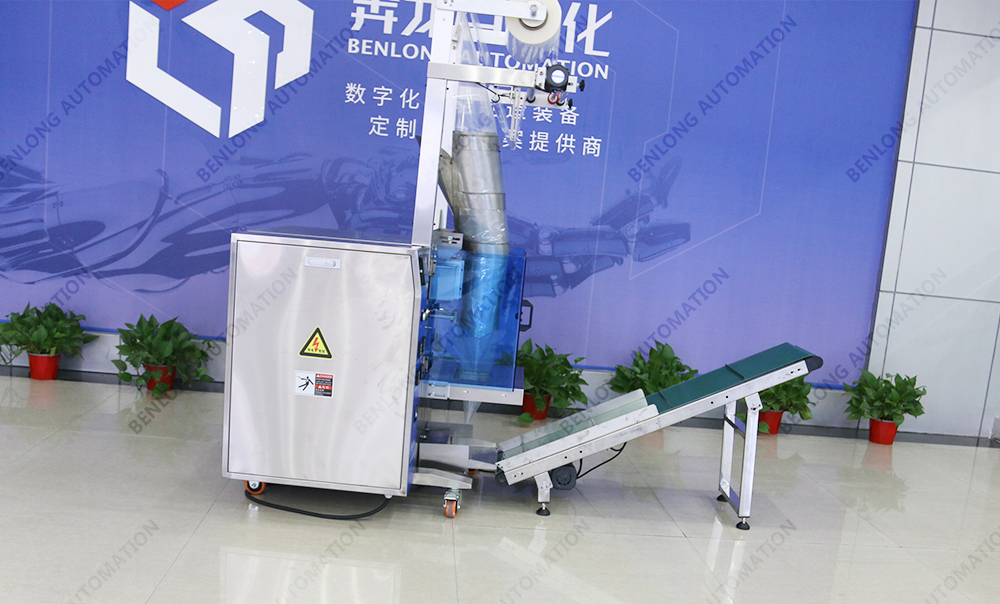

Automatic vertical packaging machine

Short Description:

Applicable product back sealed packaging:
Screws, nuts, terminals, wiring terminals, plastic parts, toys, accessories, rubber parts, hardware, pneumatic parts, automotive parts, etc
Assignment method:
Manual weighing or counting before feeding to the feeding port, automatic induction of material falling, automatic sealing and cutting, and automatic packaging; Single product or multi variety mixed feeding packaging is possible.
Applicable packaging materials:
PE PET composite film, aluminum coating film, filter paper, non-woven fabric, printing film
Film width 120-500mm, other widths need to be customized
1: Pure electric drive version: 2: Pneumatic drive version
Attention: When choosing an air driven version, customers need to provide their own air source or purchase an air compressor and dryer.
Regarding after-sales service:
1. Our company’s equipment is within the scope of national three guarantees, with guaranteed quality and worry free after-sales service.
2. Regarding warranty, all products are guaranteed for one year.


See More>>

Photograph

Parameters

Video

1

2


  • Previous:
  • Next:

  • Equipment parameters:
    1. Equipment input voltage 220V ± 10%, 50Hz;
    2. Equipment power: approximately 4.5KW
    3. Equipment packaging efficiency: 15-30 bags/min (packaging speed is related to manual loading speed).
    4. The equipment has automatic counting and fault alarm display functions.
