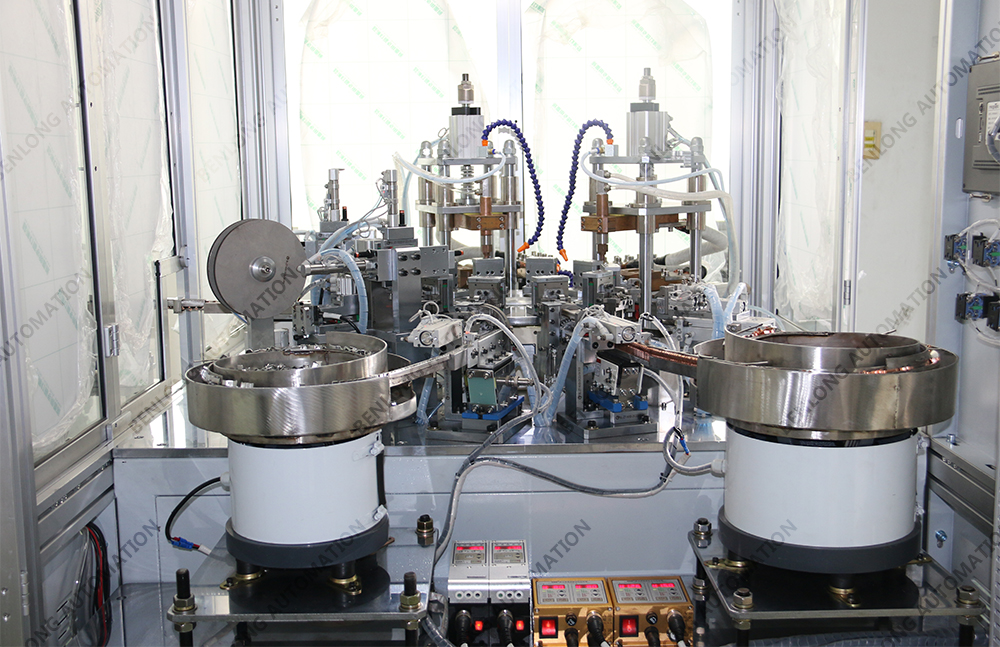

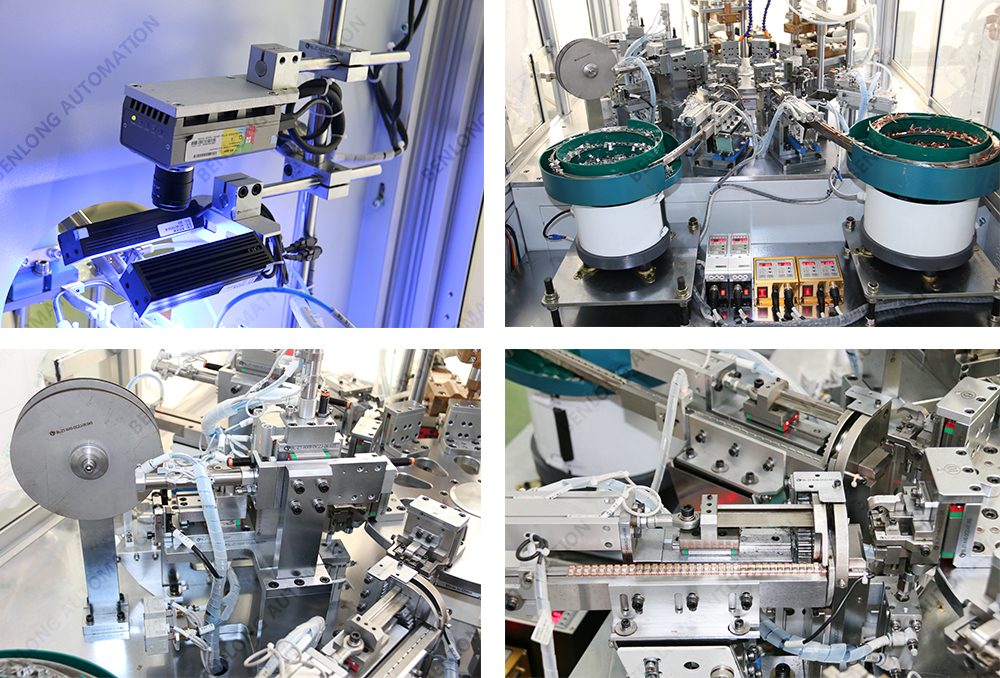

Automatic stamping and welding integrated equipment

Short Description:

Automated stamping: The equipment is equipped with an advanced stamping system that can automatically complete stamping operations based on preset stamping programs and parameters, efficiently and accurately cutting and forming metal materials.
Automated welding: The equipment is equipped with welding robots, which can automatically perform welding operations, reducing the cost and time of manual operations. Welding robots have high flexibility and accuracy, and can adapt to the needs of various welding tasks.
Intelligent control system: The equipment is equipped with an intelligent control system that can monitor and adjust various parameters during the stamping and welding process, achieving high-quality stamping and welding operations.
Mold replacement and adaptive ability: The equipment has the ability to quickly replace molds and can adapt to the stamping and welding needs of workpieces of different shapes and sizes. At the same time, the device also has adaptive ability, which can adjust and optimize according to the shape and size of the workpiece.
Data recording and management: The equipment can record the parameters and results of each stamping and welding, conduct data management and analysis, and provide data support for quality control and production management.

Send email to us

Photograph

Parameters

Video

Previous: MCB Visual Automatic Assembly Inspection Equipment

Next: AGV handling robot

1. Equipment input voltage: 380V ± 10%, 50Hz; ± 1Hz;
2. Device compatible coil specifications: 20A, 25A, 32A, 40A, 50A, 63A, 80A.
3. The device is compatible with two sizes of silver dots: 3mm * 3mm * 0.8mm and 4mm * 4mm * 0.8mm.
4. Equipment production rhythm: ≤ 3 seconds per unit.
5. The device has the function of OEE data automatic statistical analysis.
6. When switching production of products with different specifications, manual replacement of molds or fixtures is required.
7. Welding time: 1~99S, parameters can be set arbitrarily.
8. The equipment has alarm display functions such as fault alarm and pressure monitoring.
9. There are two operating systems available: Chinese and English.
10. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
11. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
12. Having independent and independent intellectual property rights.
