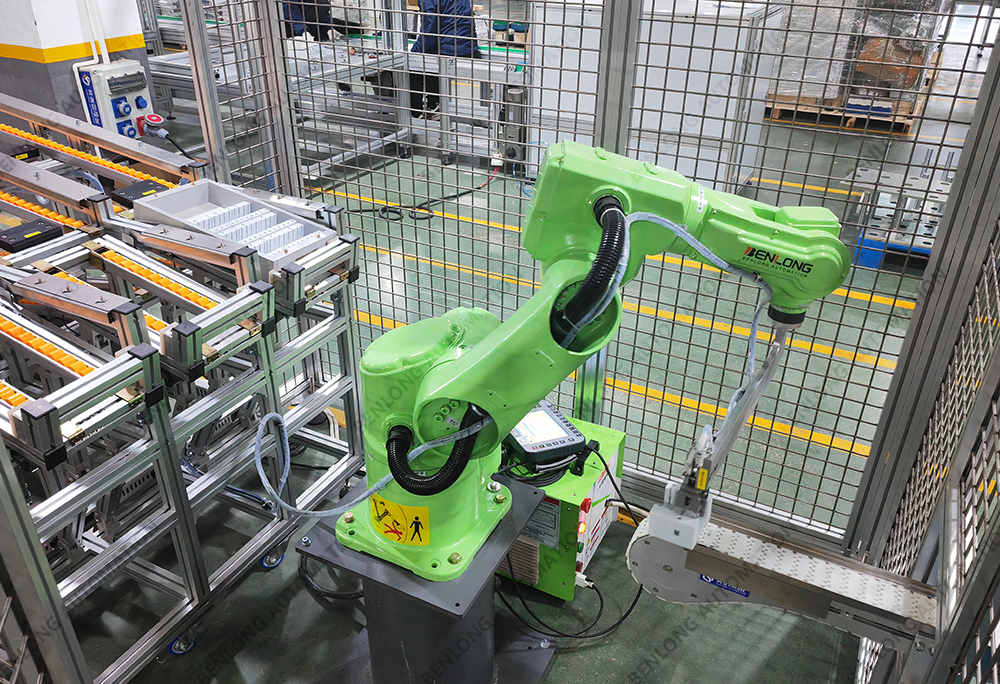

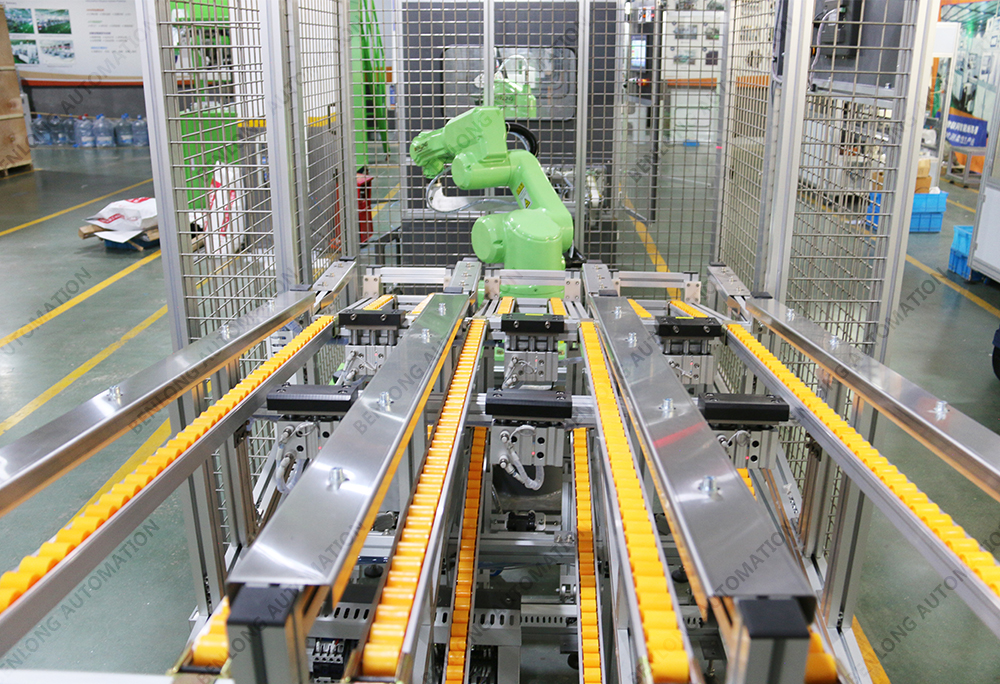

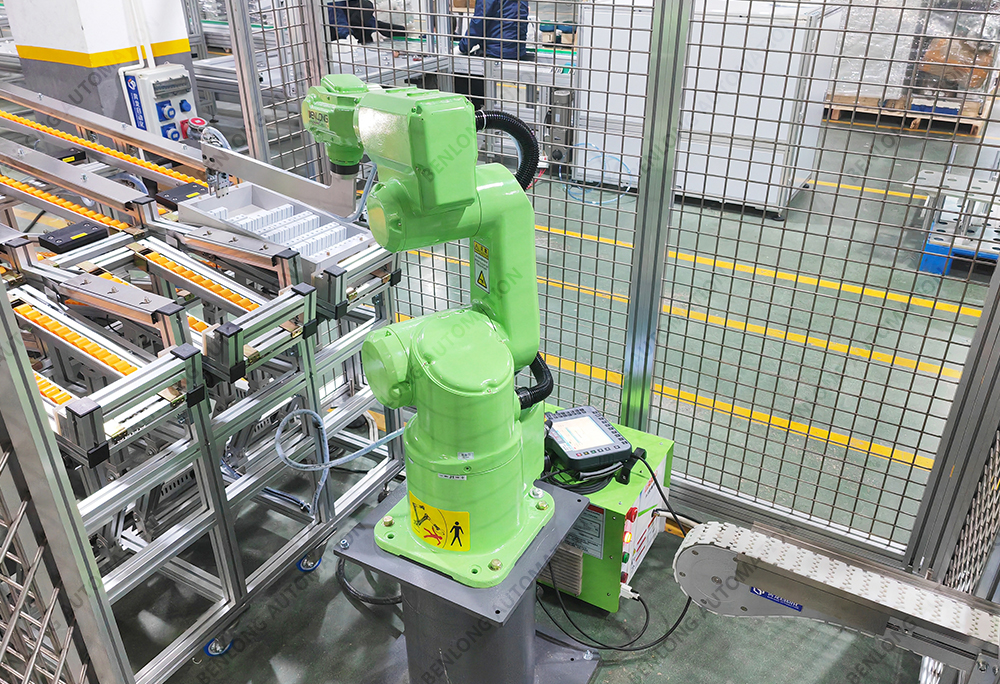

Automatic loading and unloading of surge protector robots

Short Description:

Workpiece supply: The robot can automatically obtain workpieces that need to be loaded and unloaded from the feeding area, such as surge protectors. This area can be a supply rack, conveyor belt, or other storage device. Robots can accurately identify and grasp workpieces and move them to assembly or processing areas.
Loading operation: Once the robot grabs the workpiece, it will transfer it along the production line to the designated position. During this process, the robot needs to ensure accurate positioning and safe placement of the workpiece with the help of preset programs and sensors. Once the target position is reached, the robot will place the workpiece in a suitable position to prepare for subsequent process operations.
Blanking operation: When it is necessary to move the completed workpiece from the assembly or processing area, the robot can also automatically complete this process. The robot will identify the workpieces that need to be cut, and correctly grasp and move them to the cutting area. During this process, the robot ensures the safety and accurate placement of the workpiece to avoid damage or errors.
Automation control: The automatic loading and unloading function of the surge protector robot can be achieved through an automation control system. This system can guide the robot’s actions and operations through programming and sensor feedback. Through this control method, robots can achieve highly accurate loading and unloading operations, improving the efficiency and quality of the production line.
Fault detection and handling: The automatic loading and unloading function of the surge protector robot also includes fault detection and handling. Robots can monitor their own operating status through sensors and automatic diagnostic systems, and automatically stop operation or issue alarms in case of faults. In addition, robots can also handle faults by adjusting their own actions or replacing components, ensuring the stability and normal operation of the system.
The automatic loading and unloading function of the surge protector robot can greatly improve the efficiency and automation of the production line

Send email to us

Photograph

Parameters

Video

Previous: Automatic assembly module for surge protector robot

Next: MCB robot automatic laser marking equipment

1. Equipment input voltage 220V/380V ± 10%, 50Hz; ± 1Hz;
2. Device compatible poles: 1P, 2P, 3P, 4P, 5P
3. Equipment production rhythm: 1 second per pole, 1.2 seconds per pole, 1.5 seconds per pole, 2 seconds per pole, and 3 seconds per pole; Five different specifications of equipment.
4. The same shell frame product can switch between different pole numbers with one click; Different shell frame products require manual replacement of molds or fixtures.
5. The equipment fixtures can be customized according to the product model.
6. Laser parameters can be pre stored in the control system for automatic retrieval and marking; The marking QR code parameters can be set arbitrarily, generally ≤ 24 bits.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
10. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
11. Having independent and independent intellectual property rights
