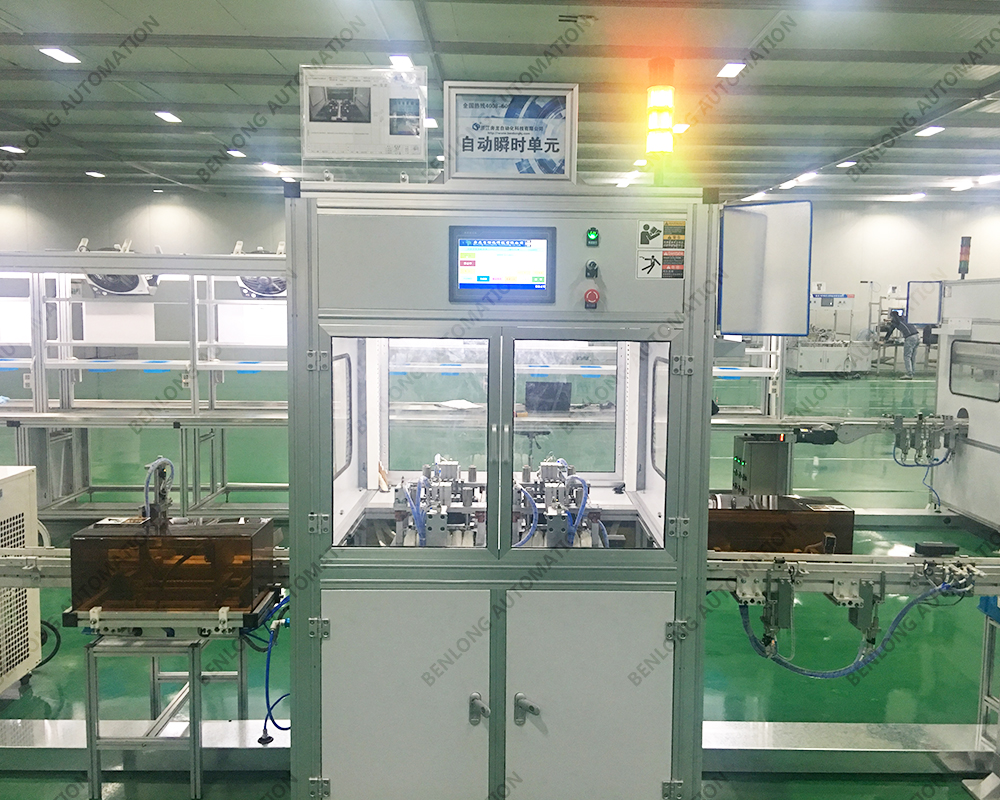

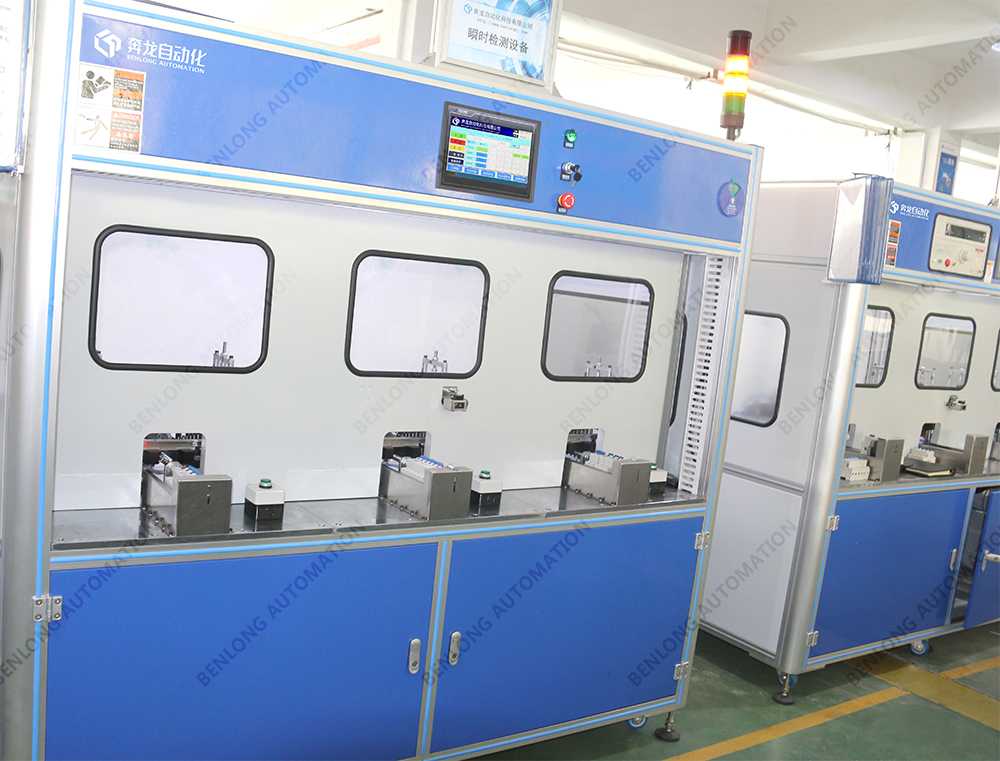

Automatic instantaneous testing equipment for low-voltage circuit breakers outside the energy meter

Short Description:

Instantaneous current and voltage detection: the device can monitor the instantaneous values of current and voltage of the power meter in real time and provide accurate measurement data. Through the detection of instantaneous current and voltage, the power consumption can be understood and the working status of the power meter can be assessed.

Load monitoring: the device can detect the current waveform of the load connected to the low-voltage circuit breaker, as well as the power factor of the load and other parameters. By monitoring the load situation, the operating condition of the load can be assessed, and abnormal or overload conditions can be detected in time.

Data Acquisition and Storage: The device is capable of real-time acquisition of current and voltage data from the power meter, and storing these data in the internal memory of the device for subsequent analysis and processing. At the same time, the device can also provide a data transmission interface to facilitate data export and transmission.

Fault diagnosis: The device is able to identify the fault conditions of power meters and LV circuit breakers in a timely manner based on the monitored current and voltage data. Once an abnormality is detected, the device will issue an alarm and provide a fault diagnosis report to facilitate maintenance and troubleshooting.

Data analysis and report generation: the device can analyse the collected current and voltage data and generate corresponding reports. Through data analysis and report generation, the accuracy, stability and reliability of the power meter can be assessed, and provide a decision-making basis for power management.

Send email to us

Photograph

Parameters

Video

Previous: Energy meter external low-voltage circuit breaker automatic instantaneous, on-off, withstand voltage testing equipment

Next: Energy Meter External Low Voltage Circuit Breaker Automatic Rollover Equipment

1. Equipment input voltage: 380V ± 10%, 50Hz; ± 1Hz;
2. Device compatibility poles: 1P, 2P, 3P, 4P, 1P+module, 2P+module, 3P+module, 4P+module.
3. Equipment production rhythm: ≤ 10 seconds per pole.
4. The same shelf product can be switched between different poles with just one click or by scanning the code; Different shell products require manual replacement of molds or fixtures.
5. Current output system: AC3~1500A or DC5~1000A, AC3~2000A, AC3~2600A can be selected according to the product model.
6. The parameters for detecting high current and low current can be set arbitrarily; Current accuracy ± 1.5%; Waveform distortion ≤ 3%
7. Release type: B type, C type, D type can be selected arbitrarily.
8. Tripping time: 1~999mS, parameters can be set arbitrarily; Detection frequency: 1-99 times. The parameter can be set arbitrarily.
9. The product can be tested horizontally or vertically as an optional option.
10. The equipment has alarm display functions such as fault alarm and pressure monitoring.
11. There are two operating systems available: Chinese and English.
12. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
13. The equipment can be optionally equipped with functions such as the Smart Energy Analysis and Energy Conservation Management System and the Smart Equipment Service Big Data Cloud Platform.
14. Having independent independent intellectual property rights.
