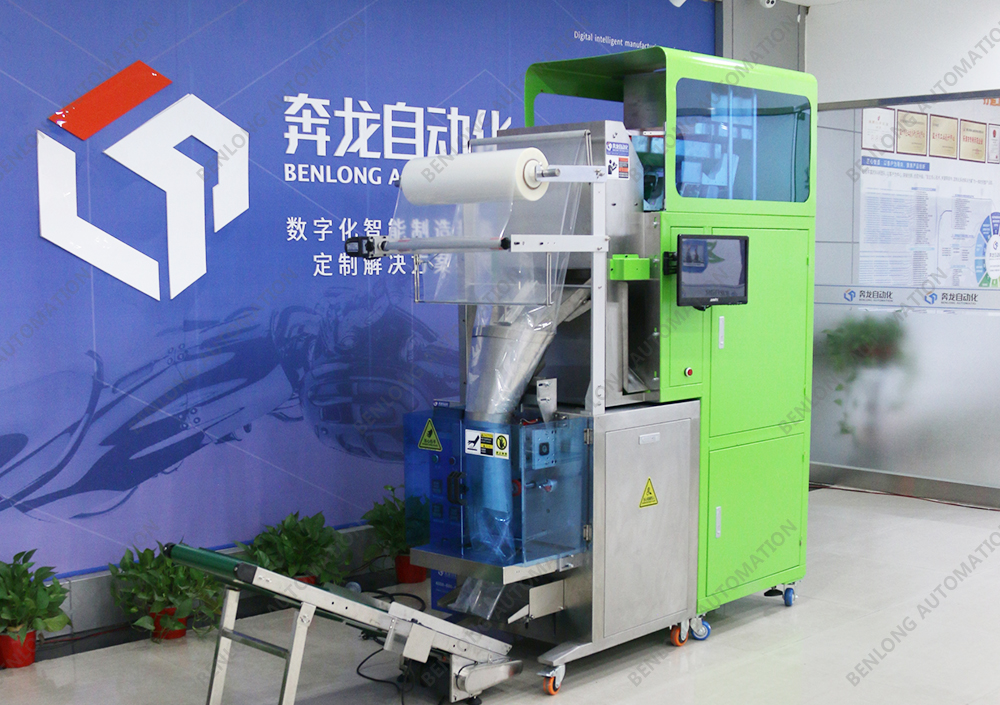

Automatic visual counting packaging machine

Short Description:

Applicable product back sealed packaging:
Screws, nuts, terminals, wiring terminals, plastic parts, toys, accessories, rubber parts, hardware, pneumatic parts, automotive parts, etc

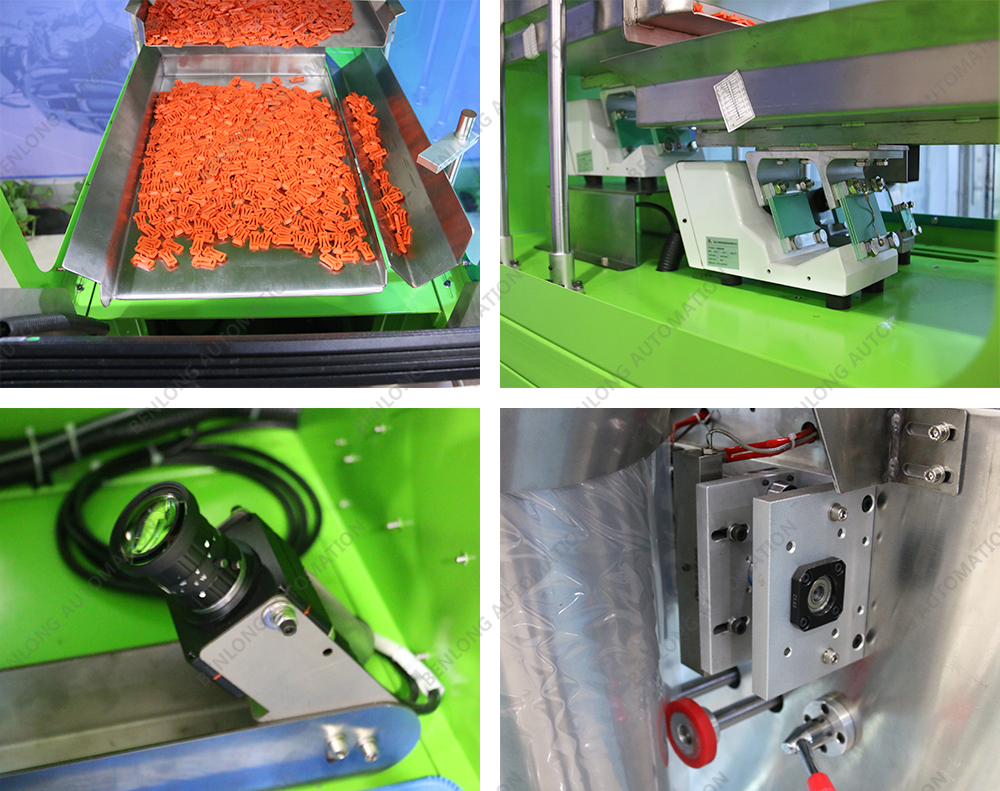

As shown in the attached figure:
Assignment method:
Machine vision for counting particles, automatic feeding, automatic sensing of material falling, automatic sealing and cutting, and automatic packaging; Single product or multi variety mixed feeding packaging is possible.
Applicable packaging materials:
PE PET composite film, aluminum coating film, filter paper, non-woven fabric, printing film
Film width 120-500mm, other widths need to be customized
Ribbon coding machine
Color code locator

Send email to us

Photograph

Parameters

Video

Previous: Automatic vertical packaging machine

Next: Visual counting and weighing packaging machine

Equipment parameters:
1. Equipment input voltage 220V ± 10%, 50Hz;
2. Equipment power: approximately 4.5KW
3. Equipment packaging efficiency: 10-15 packages/min (packaging speed is related to manual loading speed)
4. The equipment has automatic counting and fault alarm display functions.
5. Having independent and independent intellectual property rights. two hundred and two billion two hundred and ten million one hundred and sixty thousand two hundred and seventy point three zero
There are two versions of this machine:
1. Pure electric drive version; 2. Pneumatic drive version.
Attention: When choosing an air driven version, customers need to provide their own air source or purchase an air compressor and dryer.
About after-sales service
1. Our company’s equipment is within the scope of national three guarantees, with guaranteed quality and worry free after-sales service.
2. Regarding warranty, all products are guaranteed for one year.
