Automatic circuit resistance testing equipment for disconnecting switches

Short Description:

Testing circuit resistance: Automatic circuit resistance testing equipment for isolation switches is able to measure the resistance of a circuit by applying a certain current or voltage and detecting the change in circuit voltage or current. Through this test, the on-state and resistance of the circuit can be evaluated to determine the working state and performance of the switch.

Automated operation: The automatic circuit resistance testing equipment for isolation switches can realize automated test operation, including the application of current or voltage, setting of measurement parameters, data acquisition and result analysis. This can improve the accuracy and efficiency of testing and reduce the error and time-consuming manual operation.

Data recording and analysis: The device is capable of recording data from loop resistance tests and analyzing the data. By analyzing the data, the stability of the switch circuit resistance can be assessed, potential problems can be detected, and reference can be provided for maintenance and improvement.

Status display and alarm: automatic circuit resistance testing equipment for isolation switches usually has a good user interface, which can display the test status, parameters and results in real time. During the testing process, if any abnormality or out of the set range is found, the equipment will issue an alarm or prompt to remind the operator to take appropriate measures.

Send email to us

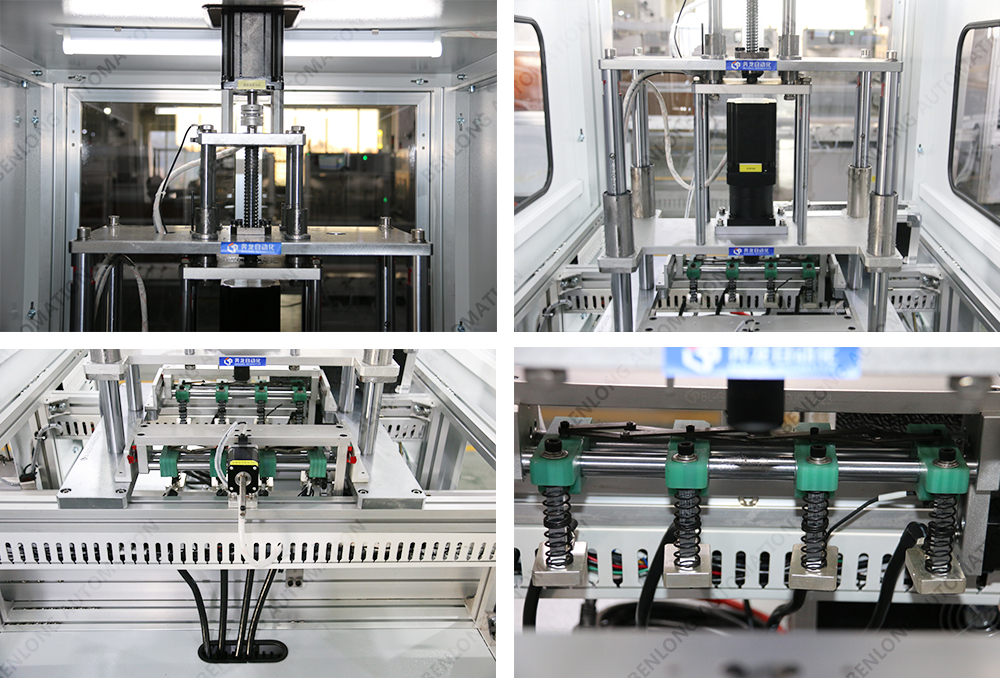

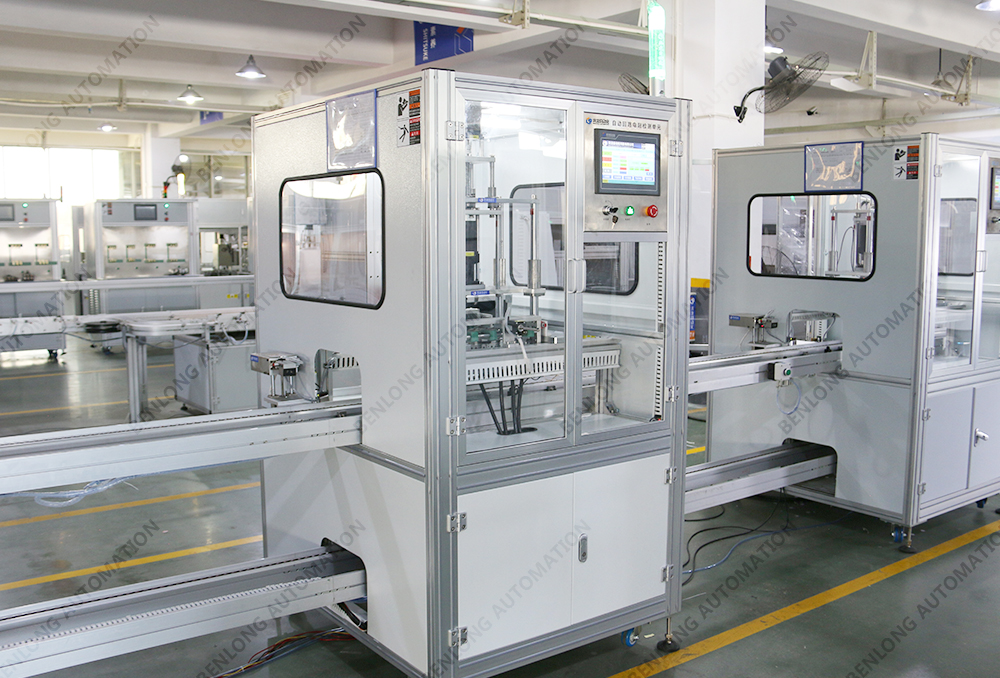

Photograph

Parameters

Video

Previous: Automatic voltage withstand and synchronization testing equipment for disconnecting switches

Next: Disconnect switch manual assembly bench

1, equipment input voltage 380V ± 10%, 50Hz; ± 1Hz;
2, equipment compatible poles: 2P, 3P, 4P, 63 series, 125 series, 250 series, 400 series, 630 series, 800 series.
3, equipment production beat: 10 seconds / unit, 20 seconds / unit, 30 seconds / unit three optional.
4, the same shell frame products, different poles can be switched by one key or sweep code switching; switching different shell frame products need to manually replace the mold or fixture.
5、Assembly mode: manual assembly, automatic assembly can be optional.
6、Equipment fixture can be customized according to the product model.
7、Equipment with fault alarm, pressure monitoring and other alarm display function.
8, Chinese and English version of the two operating systems.
All core parts are imported from Italy, Sweden, Germany, Japan, the United States, Taiwan and other countries and regions.
10、Equipment can be equipped with optional functions such as “Intelligent Energy Analysis and Energy Saving Management System” and “Intelligent Equipment Service Big Data Cloud Platform”.
11、It has independent independent intellectual property rights.
