Automated production line for photovoltaic DC circuit breakers

Short Description:

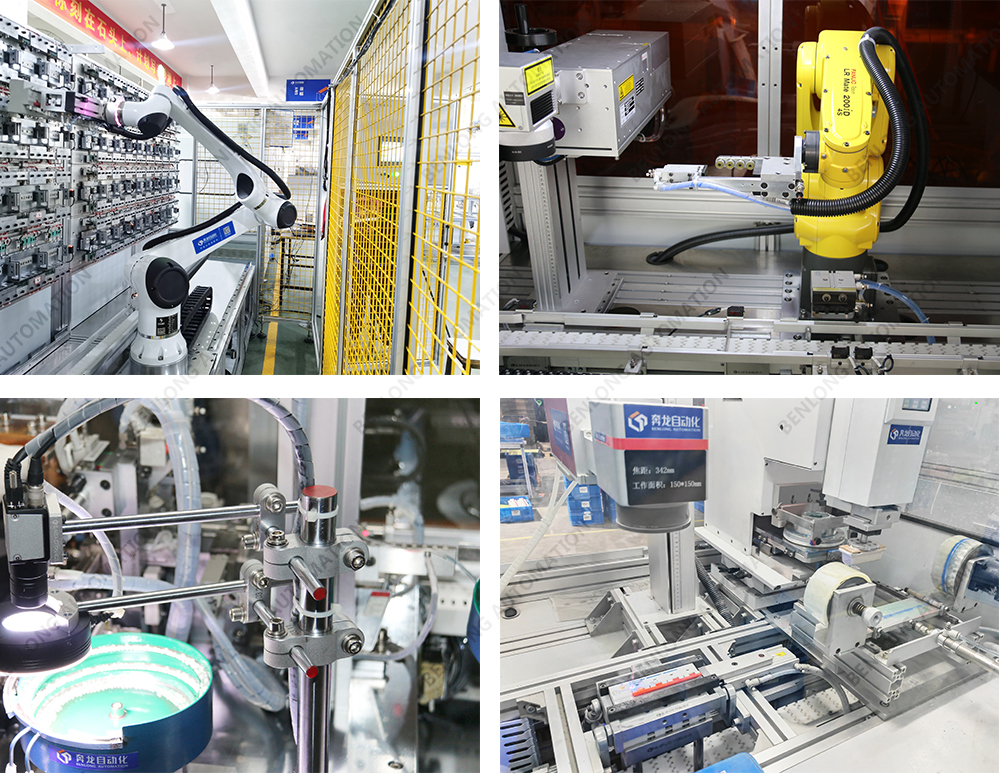

Automated assembly: The production line can automatically complete the assembly process of components for photovoltaic reclosing DC circuit breakers, including the installation of contacts, wiring terminals, protective shells, etc. By using automatic assembly equipment and robotic arms, assembly efficiency and product consistency can be improved.
Quality inspection and testing: The production line has quality inspection and testing functions, which can perform visual inspection, electrical performance testing, safety performance testing, etc. on photovoltaic reclosing DC circuit breakers to ensure product quality and compliance with relevant standard requirements.
Flexible production: The production line can flexibly adapt to the production needs of different specifications and models of photovoltaic reclosing DC circuit breakers, and achieve flexible production by quickly adjusting and replacing assembly and testing equipment.
Automated data recording and traceability: The production line is equipped with a data management system that can record and manage various data during the production process, including production parameters, quality data, equipment status, etc. Through data analysis and traceability, optimization and quality control of the production process can be achieved.
Fault diagnosis and maintenance: The production line is equipped with a fault diagnosis and prediction system, which can monitor the status and performance of equipment in real-time. When faults or abnormal situations occur, timely alarms or automatic shutdowns can be issued, and maintenance guidance can be provided.

Send email to us

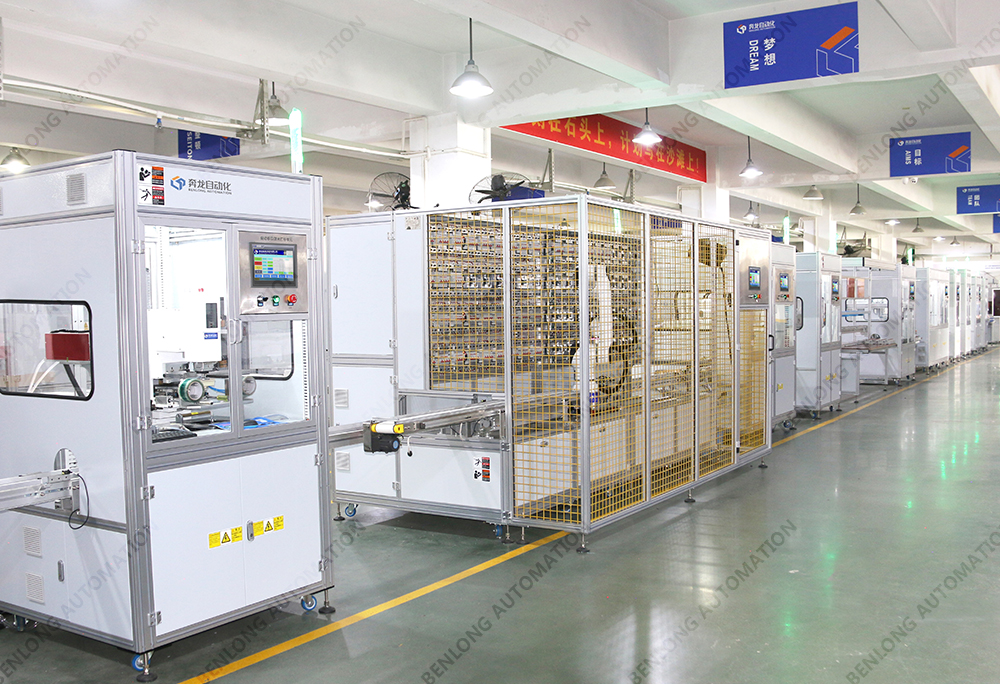

Photograph

Parameters

Video

Previous: Automated stamping and welding production line for charging piles

Next: Automatic production line for vacuum circuit breakers

1. Equipment input voltage: 380V ± 10%, 50Hz; ± 1Hz;
2. Equipment compatibility specifications: 18 modulus series or 27 modulus series circuit breakers 1P, 1P+N, 2P, 3P, 3P+N, 4P, 1P+module, 2P+module, 3P+module, 4P+module.
3. Equipment production rhythm: 10 seconds per unit.
4. The same shelf product can be switched between different poles with one click or scan code switching; Switching between different shell shelf products requires manual replacement of molds or fixtures.
5. Assembly method: manual assembly and automatic assembly can be selected at will.
6. The equipment fixtures can be customized according to the product model.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
10. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
11. Having independent and independent intellectual property rights.
