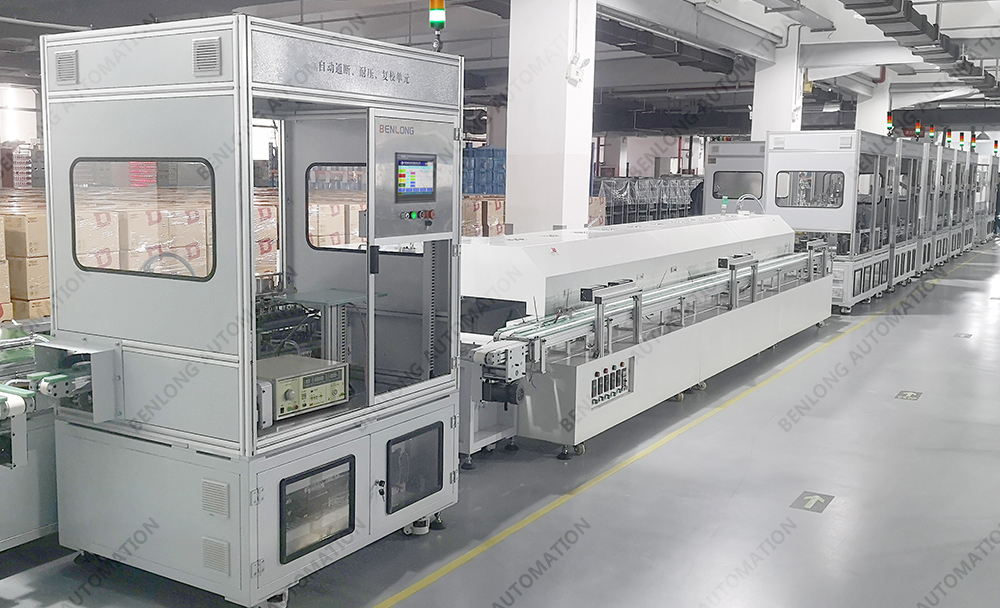

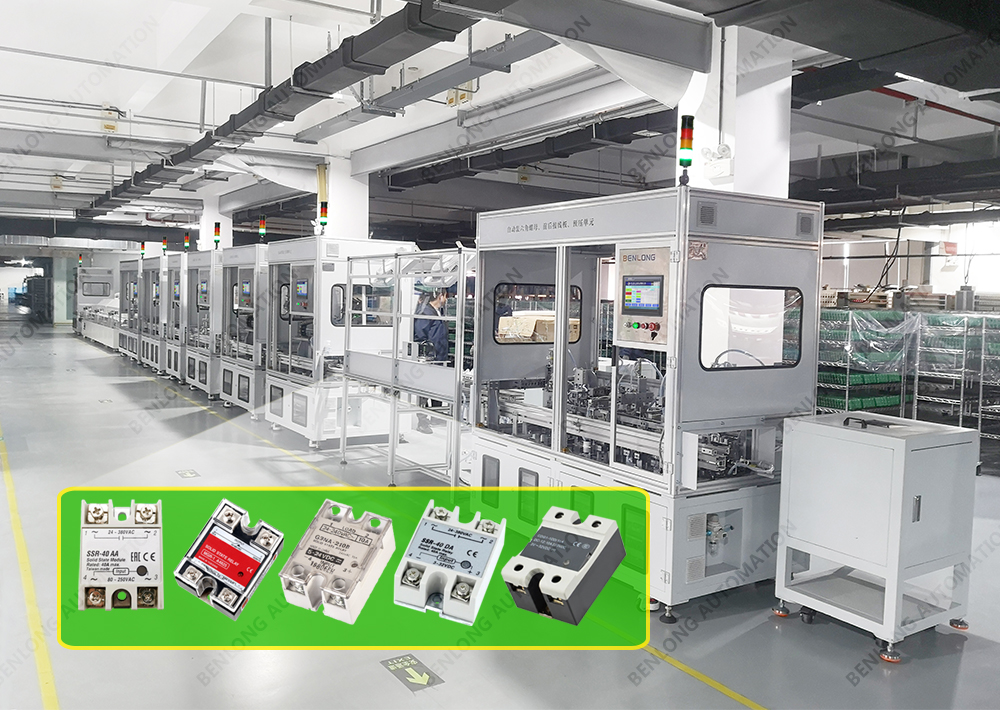

Solid State Relay Automated Production Line

Short Description:

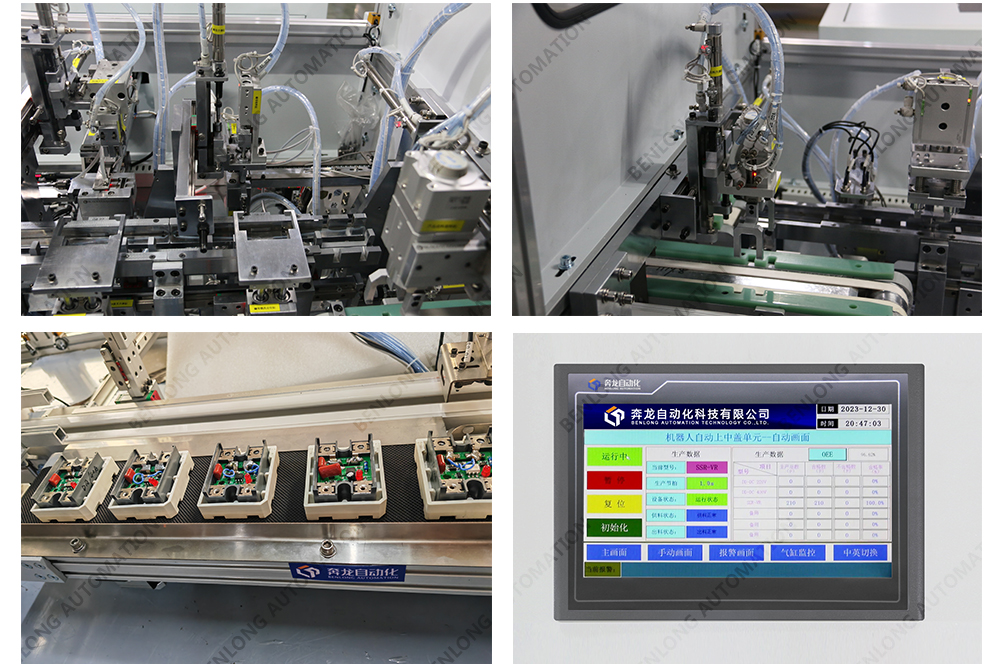

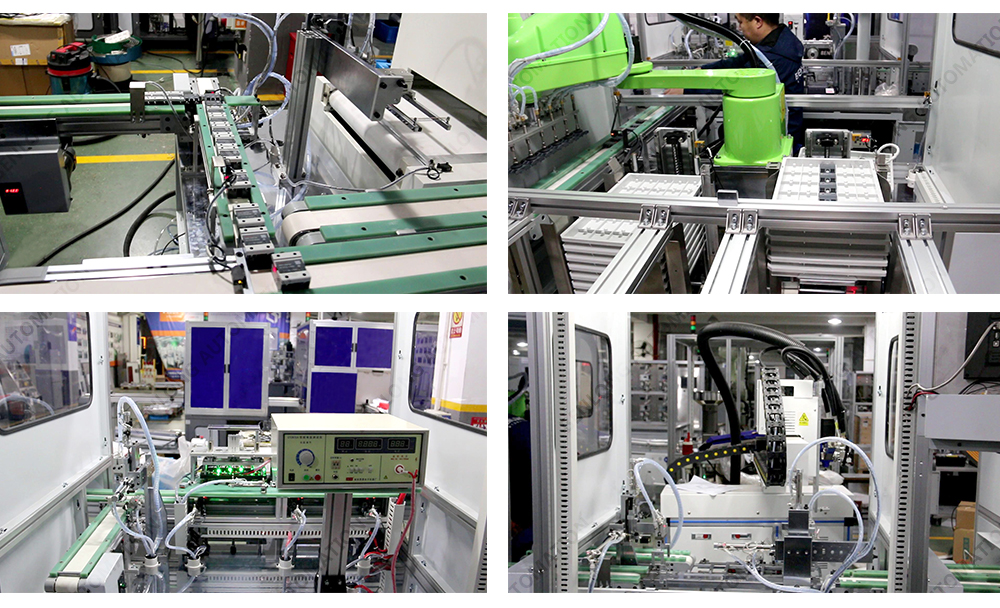

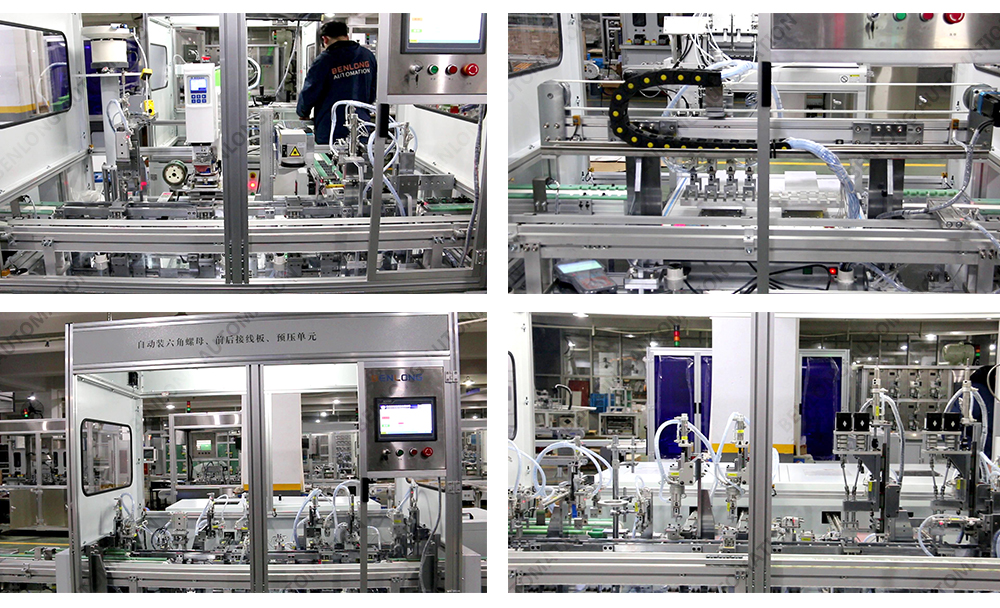

This is a “Solid State Relay Automatic Assembly and Inspection Production Line”. The processes of this production line include: automatic feeding of the base plate, automatic feeding of the shell, automatic application of solder paste, automatic heating and melting, automatic assembly of electronic components, automatic assembly of hexagonal nuts, automatic assembly Front wiring board, automatic installation. Equipped with rear wiring board, automatic pre-pressure, automatic soldering of pins, feet, automatic CCD visual detection, automatic on-off detection, automatic high-voltage resistance detection, automatic preliminary calibration detection, automatic filling of A/B resin glue, automatic upper cover robot loading, automatic upper cover assembly, automatic laser marking, automatic moving Printing trademarks, automatic assembly of light guide columns, automatic locking tile screws, automatic assembly of front and rear flip-up covers, automatic CCD visual inspection, automatic tunnel furnace heating and curing, automatic cycle cooling, automatic on-off detection, automatic high-pressure resistance detection, automatic recalibration detection, Automatic identification of defective products, caching of finished products, automatic plate placement, automatic packaging, automatic identification of defective products, automatic reflow of vehicles, automatic stacking of turnover boxes, MES system data storage, SOP electronic display, etc.It is compatible with the switching production of more than 20 different specifications of products of one appearance size. The production line has online detection, real-time monitoring, quality traceability, automatic identification and reading of barcodes or QR codes, component life monitoring, system networking with ERP systems, and parameters Any formula, smart energy analysis and energy-saving management system, smart equipment service big data cloud platform and other functions. Each machine is independently designed, developed and software programmed by Benlong Automation. You can control the machine operation through the display screen. It has unique features. It can alarm materials, report faults, track product production data, OEE data, etc., which is beneficial to lean production, troubleshooting, timely replenishment of materials, etc. The operating system supports multi-language design. The core accessories of the equipment come from world-renowned brand suppliers such as Germany, Italy, Japan, the United Kingdom, and the United States. It can help your factory save more manpower and time, realize factory automation, and seize more market share for you.

Send email to us

Photograph

Parameters

Video

Previous: RCBO Leakage Circuit Breaker Testing Equipment

Next: AC Contactor Lean Production Line

Equipment input voltage 380V ± 10%, 50Hz; ± 1Hz;
Device compatibility poles: customized
Equipment production rhythm: according to customer requirements
The same shelf product can be switched between different poles with just one click or by scanning the code; Different shell products require manual replacement of molds or fixtures.
Leakage output range: 0-5000V; The leakage current is available in different levels of 10mA, 20mA, 100mA, and 200mA.
Detection of high-voltage insulation time: The parameters can be set arbitrarily from 1 to 999S.
Detection frequency: 1-99 times. The parameter can be set arbitrarily.
High voltage detection position: When the product is in the closed state, detect the voltage resistance between phases; When the product is in the closed state, check the voltage resistance between the phase and the bottom plate; When the product is in the closed state, check the voltage resistance between the phase and the handle; When the product is in the open state, check the voltage resistance between the incoming and outgoing lines.
The product can be tested horizontally or vertically as an optional option.
The equipment has alarm display functions such as fault alarm and pressure monitoring.
There are two operating systems available: Chinese and English.
All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
The equipment can be optionally equipped with functions such as the Smart Energy Analysis and Energy Conservation Management System and the Smart Equipment Service Big Data Cloud Platform.
Having independent and independent intellectual property rights
