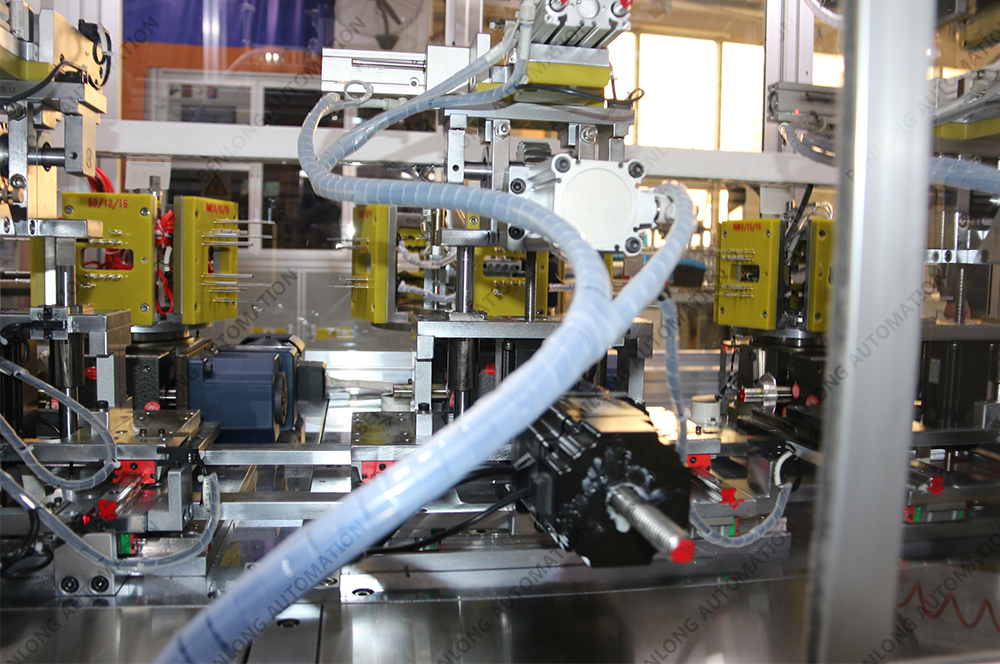

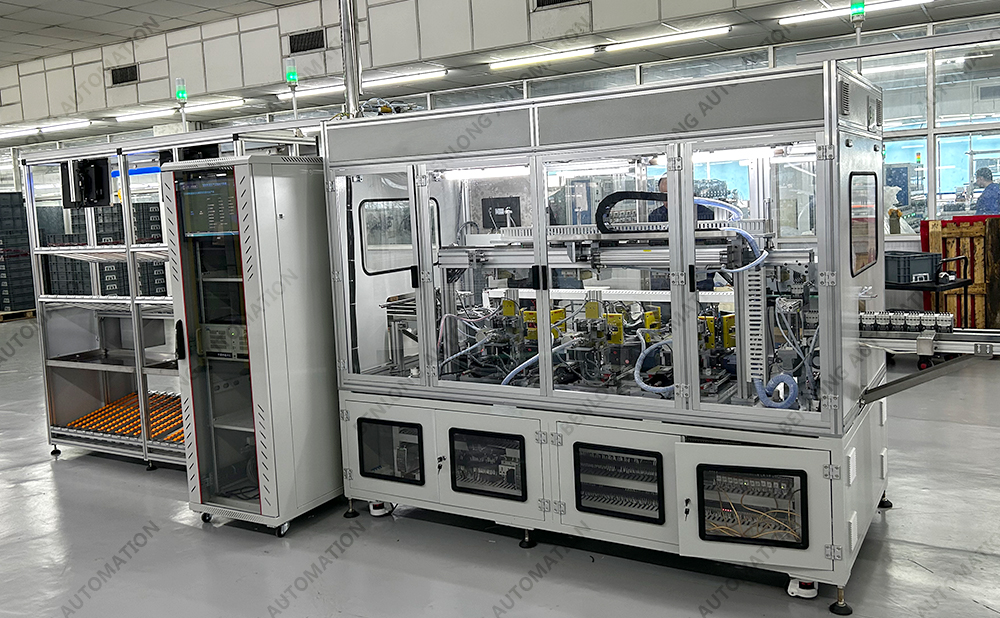

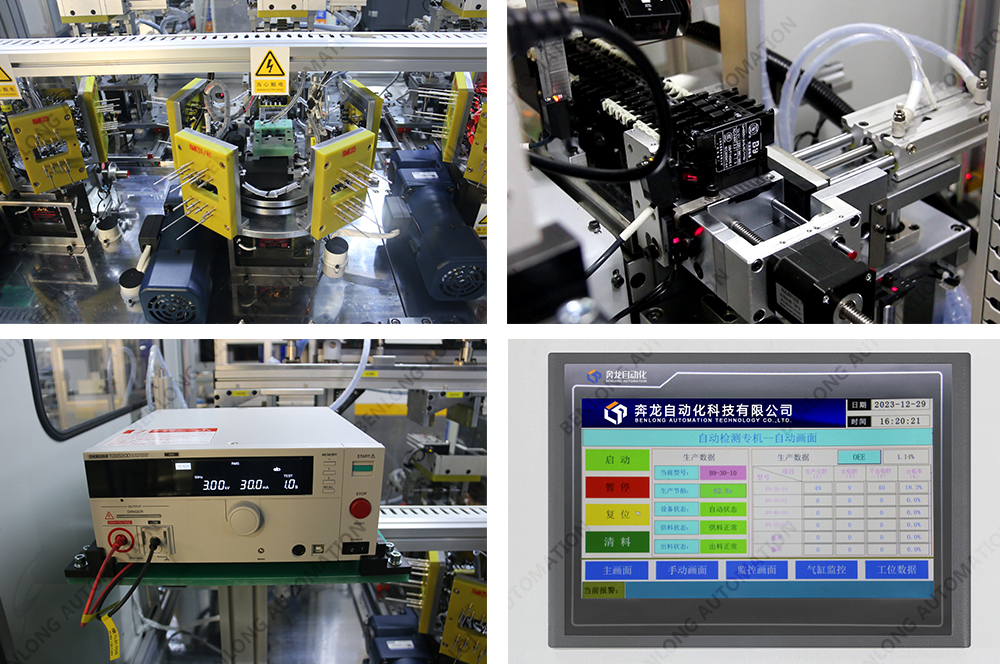

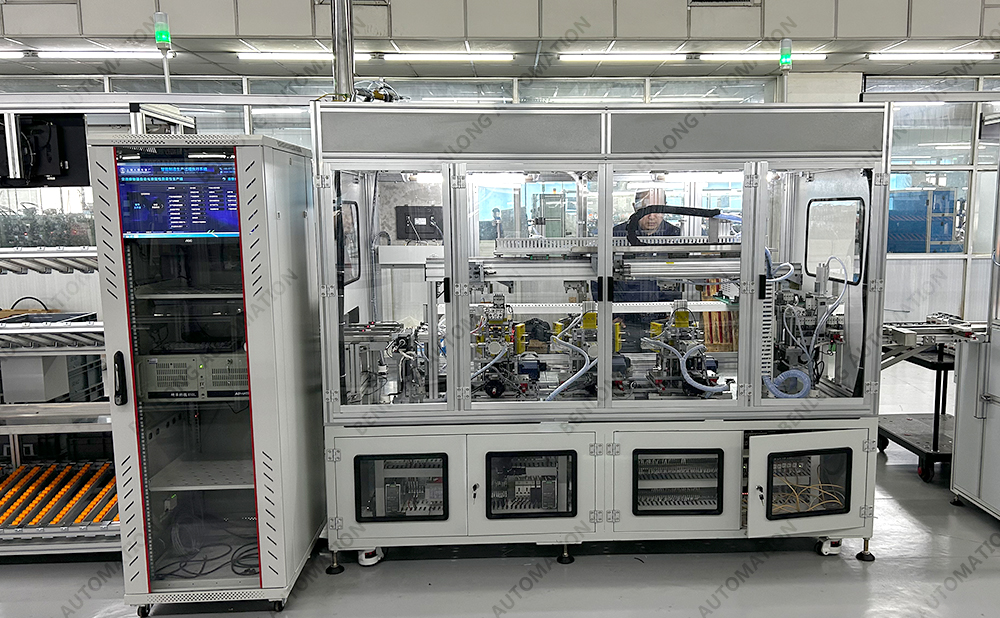

AC contactor synthesized test equipment

Short Description:

Electrical parameter test: Test the rated current, rated voltage, contact resistance, insulation resistance and other electrical parameters of the AC contactor to verify that it meets the design requirements.

Action Characteristics Test: Evaluate the characteristics of AC contactor such as suction time, release time, action life, etc. to ensure its action reliability and stability.

Load capacity test: test the performance of AC contactors under different load conditions, including overload capacity, short-time rated load capacity, etc.

Temperature Rise Test: Evaluate the temperature rise of AC contactors under long time operation or high load conditions to verify its heat dissipation performance and temperature management capability.

Environmental Adaptability Test: Test the performance of AC contactors under different environmental conditions, including the effects of temperature, humidity, vibration and other environmental factors on their performance.

Send email to us

Photograph

Parameters

Video

Previous: AC contactor MES production process execution system

Next: AC contactor assembly bench

1. Equipment input voltage 380V ± 10%, 50Hz; ± 1Hz
2. Equipment compatibility specifications: CJX2-0901, 0910, 1201, 1210, 1801, 1810.
3. Equipment production rhythm: either 5 seconds per unit or 12 seconds per unit can be optionally matched.
4. Different specifications of products can be switched with just one click or by scanning the code; Switching between different shell products requires manual replacement or adjustment of molds/fixtures, as well as manual replacement/adjustment of different product accessories.
5. Assembly methods: manual assembly and automatic assembly can be freely selected.
6. The equipment fixtures can be customized according to the product model.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
10. The equipment can be optionally equipped with functions such as the Smart Energy Analysis and Energy Conservation Management System and the Smart Equipment Service Big Data Cloud Platform.
11. Having independent and independent intellectual property rights
