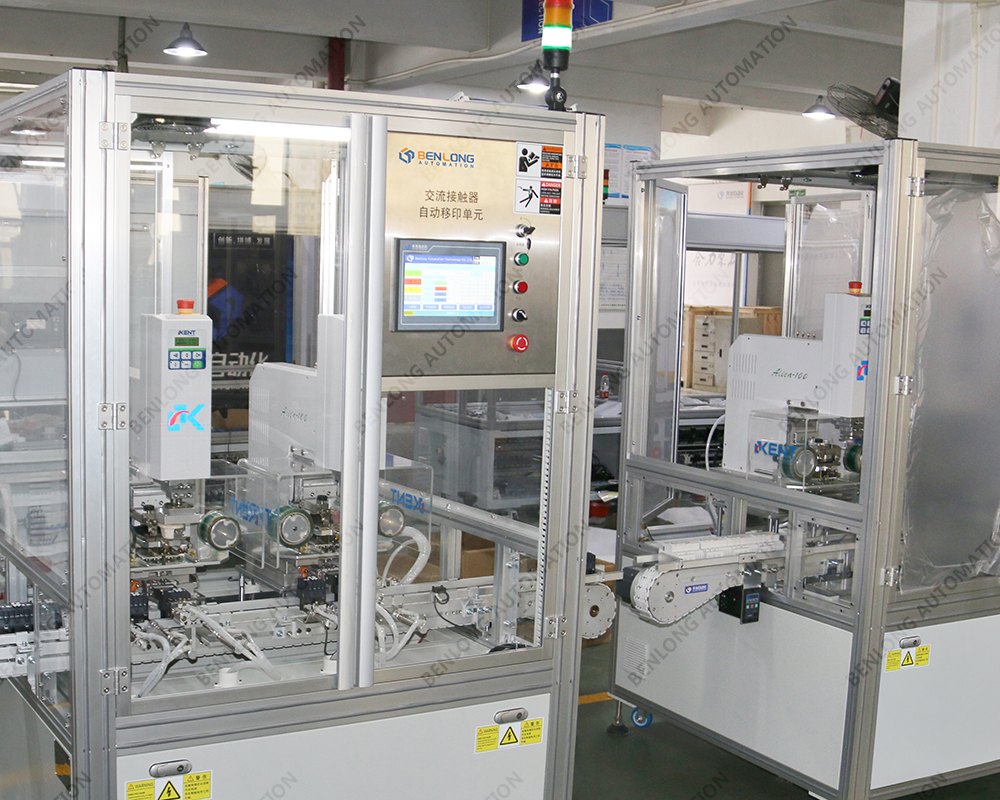

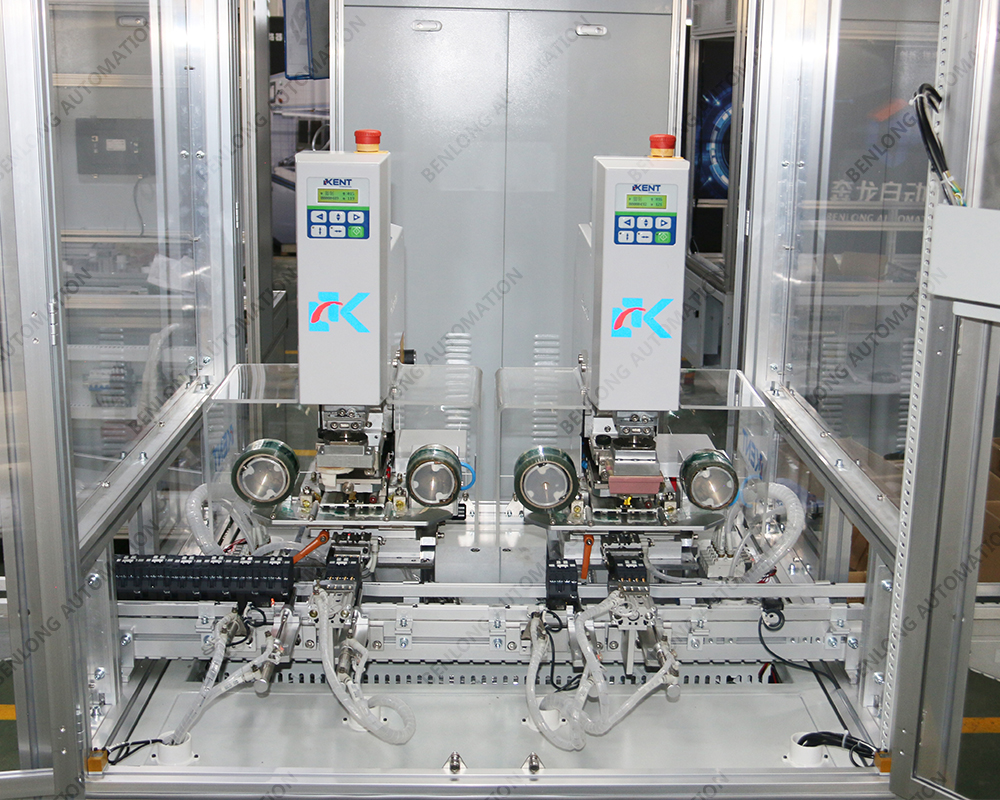

AC Automatic pad printing equipment for contactors

Short Description:

Automated Pad Printing: The equipment can automatically pad print patterns or text from one position to another, improving production efficiency.
Precise Positioning: The equipment can accurately position the pad to ensure accuracy and consistency.
Multi-functional pad printing: the equipment can realise many different types of pad printing, including flat pad printing, curved pad printing, etc.
Automatic cleaning function: the equipment may be equipped with an automatic cleaning function, which makes it easy to clean the printing head and the pad printing mould.
Intelligent control system: the equipment may be equipped with an intelligent control system, which allows for automated production management and monitoring.
High-speed pad printing: the equipment may have a high-speed pad printing function, which can quickly complete the pad printing task and improve production efficiency.
Programmable operation: The equipment may support programmable operation, which can be set and adjusted according to different pad printing needs.
These features make the AC contactor automatic pad printing equipment an important printing equipment in the production line, which can meet the pad printing needs of different industries.

Send email to us

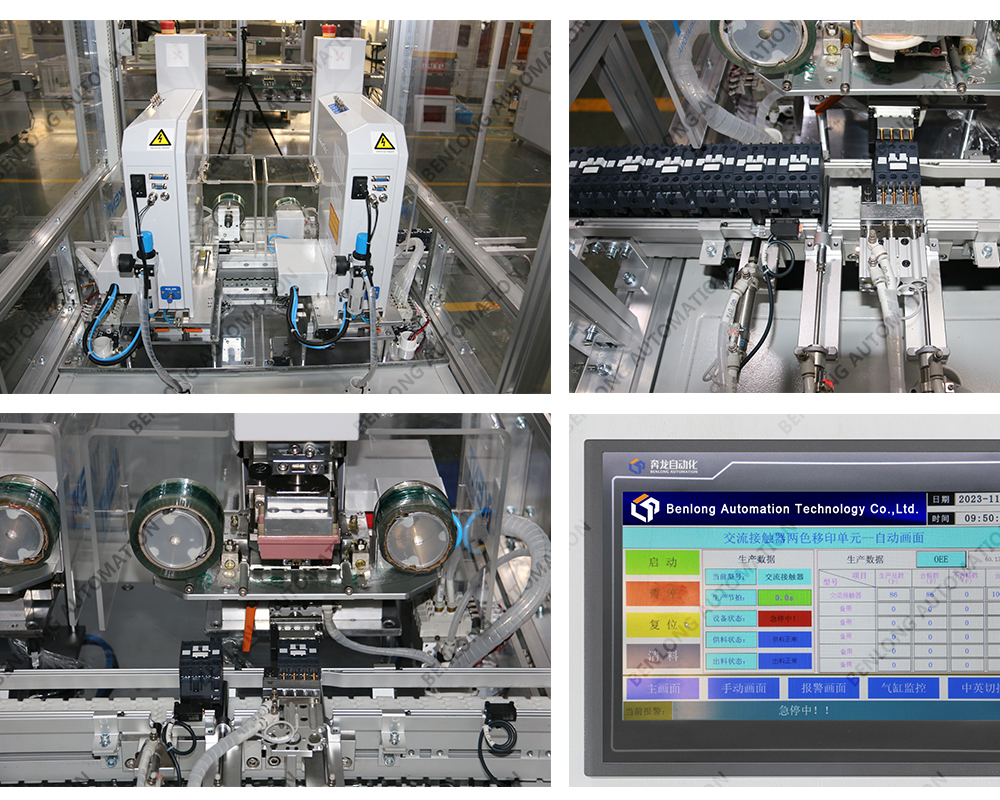

Photograph

Parameters

Video

Previous: MCB parts automatic assembly unit

Next: Thermal relay automatic assembly test equipment

1. Equipment input voltage 380V ± 10%, 50Hz; ± 1Hz
2. Equipment compatibility specifications: CJX2-0901, 0910, 1201, 1210, 1801, 1810.
3. Equipment production rhythm: either 5 seconds per unit or 12 seconds per unit can be optionally matched.
4. Different specifications of products can be switched with just one click or by scanning the code; Switching between different shell products requires manual replacement or adjustment of molds/fixtures, as well as manual replacement/adjustment of different product accessories.
5. Assembly methods: manual assembly and automatic assembly can be freely selected.
6. The equipment fixtures can be customized according to the product model.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, and Taiwan.
10. The equipment can be optionally equipped with functions such as the Smart Energy Analysis and Energy Conservation Management System and the Smart Equipment Service Big Data Cloud Platform.
11. Having independent and independent intellectual property rights
