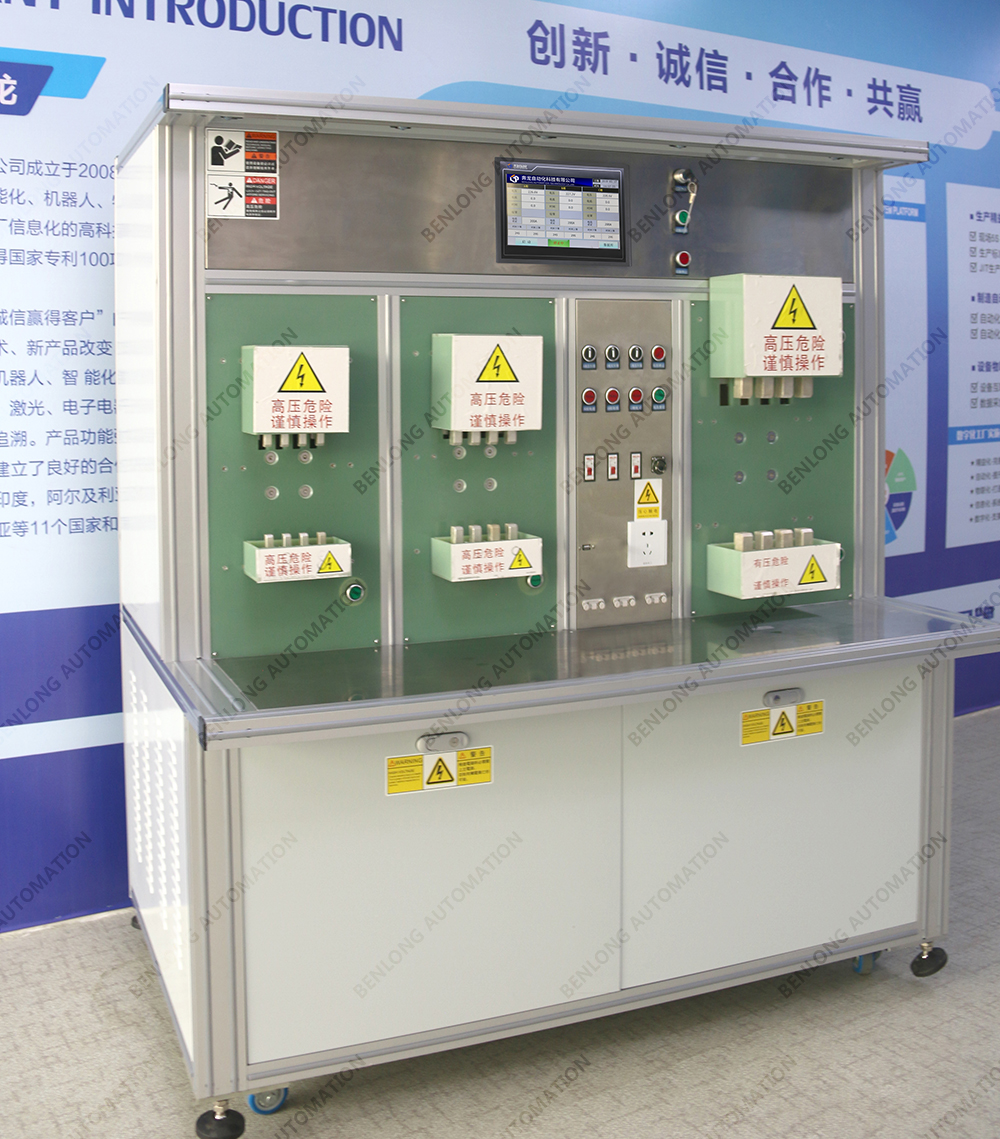

9、MCCB delay detection equipment

Short Description:

Delayed tripping test: The equipment can simulate fault conditions in the circuit and test the delayed tripping function of MCCB. By applying different current and load conditions, the tripping time of MCCB during faults can be detected to ensure that it can cut off the circuit in a timely manner.
Trip time measurement: The equipment has the function of accurately measuring the trip time of MCCB. It can accurately measure the time from the occurrence of a fault to the MCCB cutting off the circuit to evaluate its delayed tripping performance.
Trip time adjustment: The device can adjust the trip time of MCCB by controlling current and load conditions. In this way, users can adjust the delayed tripping of MCCB according to their actual needs to adapt to different application scenarios.
Data display and recording: The device can display test results in digital or graphical form. It can display the tripping time of MCCB in real-time and record the data of each test. In this way, users can analyze and compare the test results to obtain more information about the performance of MCCB.
Automated testing: The equipment has automated testing function, which can continuously conduct delayed tripping tests on multiple MCCBs. This can improve the efficiency and consistency of testing, reduce manpower investment and testing time.

Send email to us

Photograph

Parameters

Video

Previous: 10、 MCCB electrical life testing equipment

Next: 8. MCCB characteristic detection equipment

1. Equipment input voltage 380V ± 10%, 50Hz; ± 1Hz;
2. Different shell shelf products and different models of products can be manually switched, one click switching, or code scanning switching; Switching between products of different specifications requires manual replacement/adjustment of molds or fixtures.
3. Testing methods: manual clamping and automatic detection.
4. The equipment test fixture can be customized according to the product model.
5. The equipment has alarm display functions such as fault alarm and pressure monitoring.
6. There are two operating systems available: Chinese and English.
7. All core accessories are imported from Italy, Sweden, Germany, Japan, the United States, Taiwan, China and other countries and regions.
8. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
9. Having independent and independent intellectual property rights.
