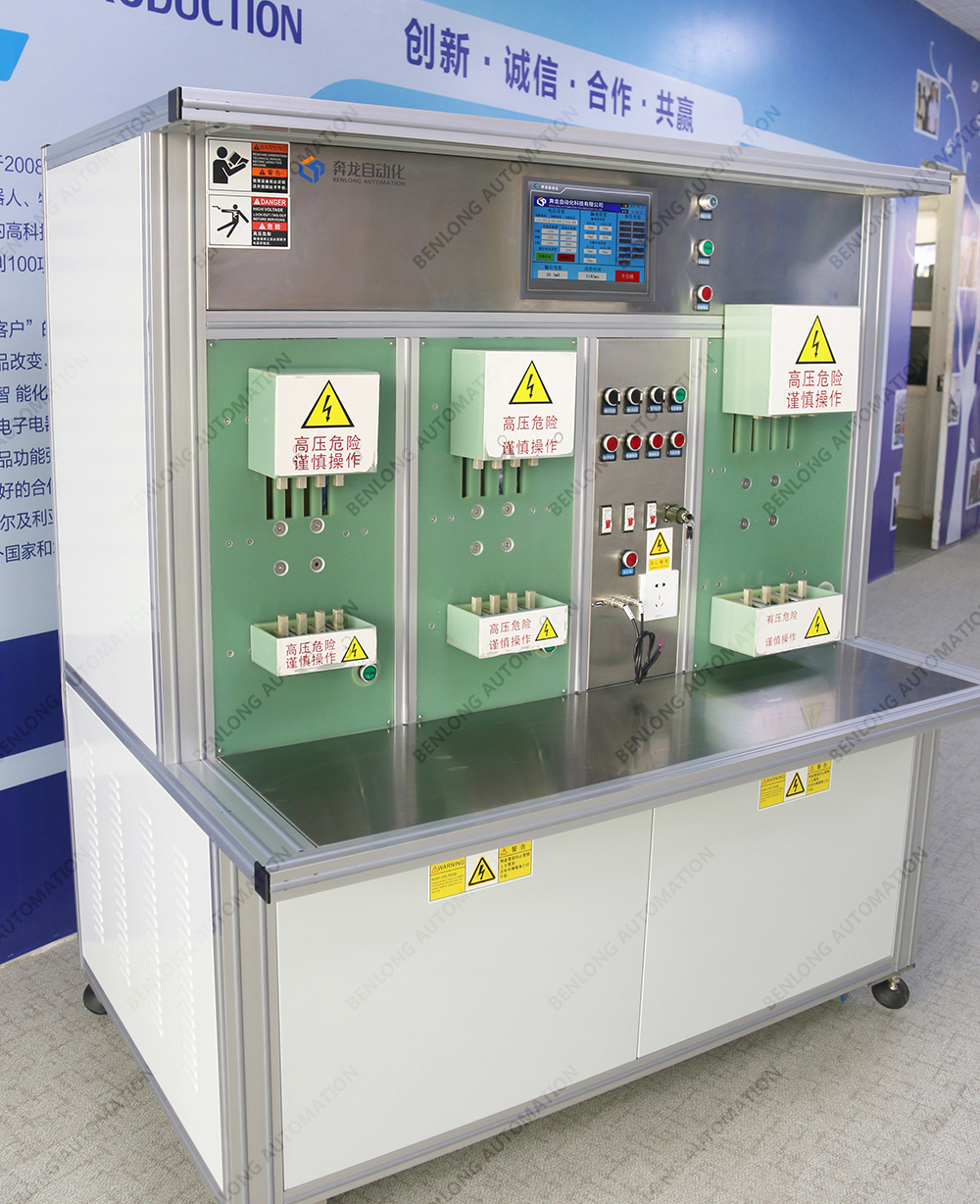

8. MCCB characteristic detection equipment

Short Description:

Action characteristic testing: The equipment can test the action characteristics of MCCB, including thermal stability, overload and short circuit protection, etc. It can simulate different loads and fault conditions to determine parameters such as MCCB’s action time, action current, and action holding capacity.
Trip current measurement: The device can accurately measure the trip current of MCCB. By applying different loads and fault conditions, the current level of MCCB when reaching the protection action state can be determined.
Fault simulation: The device can simulate different types of circuit faults, such as short circuits, overloads, and ground faults. By applying these fault conditions, the protection function and response time of MCCB can be tested.
Alarm and protection: The device can monitor the status of MCCB and provide alarm functions. For example, when the temperature of MCCB exceeds the set value or reaches an overload state, the device can emit an audible or visual signal to alert the operator.
Data recording and analysis: The device can record and analyze data such as current, voltage, and time during the testing process. This helps users understand the operation of MCCB and evaluate and maintain it.
Programmable function: Some devices also have programmable functions, allowing users to set different test parameters and fault conditions to meet specific application requirements.

Send email to us

Photograph

Parameters

Video

Previous: 9、MCCB delay detection equipment

Next: 7、 MCCB instantaneous detection equipment

1. Equipment input voltage 380V ± 10%, 50Hz; ± 1Hz;
2. Different shell shelf products and different models of products can be manually switched, one click switching, or code scanning switching; Switching between products of different specifications requires manual replacement/adjustment of molds or fixtures.
3. Testing methods: manual clamping and automatic detection.
4. The equipment test fixture can be customized according to the product model.
5. The equipment has alarm display functions such as fault alarm and pressure monitoring.
6. There are two operating systems available: Chinese and English.
7. All core accessories are imported from Italy, Sweden, Germany, Japan, the United States, Taiwan, China and other countries and regions.
8. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
9. Having independent and independent intellectual property rights.
