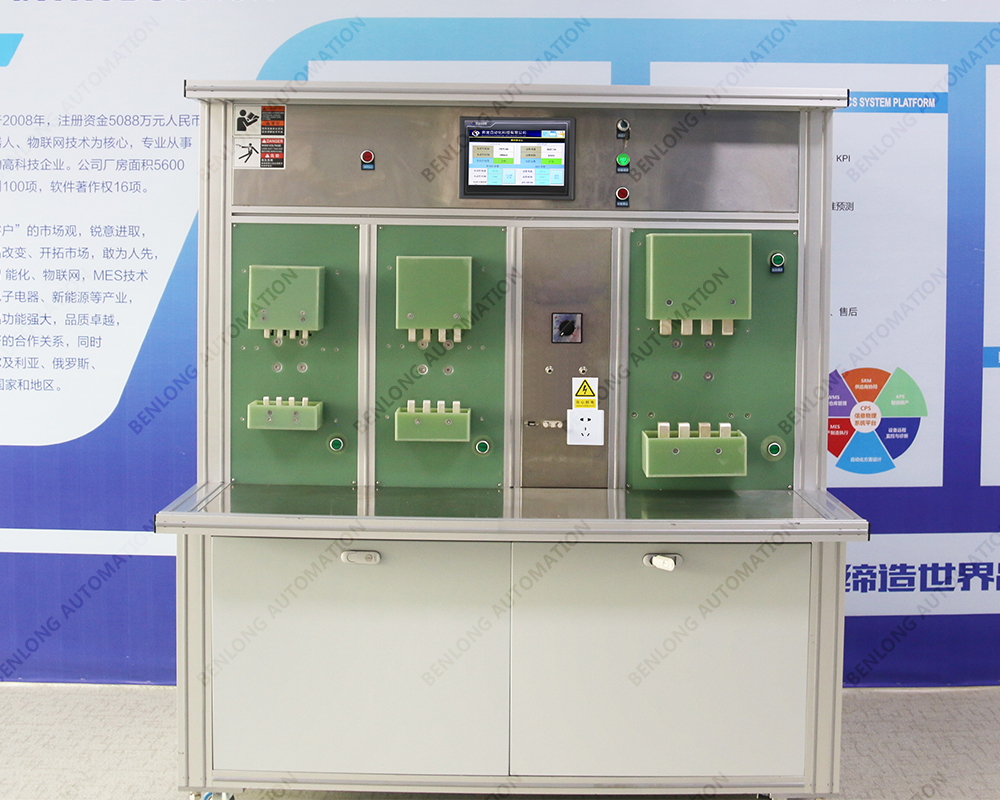

7、 MCCB instantaneous detection equipment

Short Description:

Action time test: The device can measure the action time of MCCB, that is, the time from the occurrence of a fault to the disconnection of the circuit. This helps to determine whether the response speed of MCCB to circuit faults meets the requirements.
Action current measurement: The device can accurately measure the action current of MCCB, which is the minimum current required to trigger the MCCB protection function. By testing the action current, it can be ensured that MCCB can reliably protect the circuit during operation.
Action retention ability test: The equipment can test the retention ability of MCCB after action, that is, the ability of MCCB to continuously open the circuit even after the fault disappears. This helps to evaluate the durability and reliability of MCCB.
Action characteristic analysis: The device can analyze the action characteristics of MCCB, including thermal stability, overload protection, and short circuit protection. By analyzing these characteristics, we can better understand the working state and performance of MCCB.
Alarm and protection function: The device can monitor the status of MCCB and provide alarm function. For example, when an MCCB experiences an instantaneous fault or exceeds the set protection limit, the device can issue an alarm to alert the operator.
Data recording and analysis: The device can record data during the testing process and analyze the test results. This helps users understand the working condition of MCCB and make necessary maintenance and adjustments.

Send email to us

Photograph

Parameters

Video

Previous: 8. MCCB characteristic detection equipment

Next: 6、MCCB aging detection equipment

1. Equipment input voltage 380V ± 10%, 50Hz; ± 1Hz;
2. Different shell shelf products and different models of products can be manually switched, one click switching, or code scanning switching; Switching between products of different specifications requires manual replacement/adjustment of molds or fixtures.
3. Testing methods: manual clamping and automatic detection.
4. The equipment test fixture can be customized according to the product model.
5. The equipment has alarm display functions such as fault alarm and pressure monitoring.
6. There are two operating systems available: Chinese and English.
7. All core accessories are imported from Italy, Sweden, Germany, Japan, the United States, Taiwan, China and other countries and regions.
8. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
9. Having independent and independent intellectual property rights.
