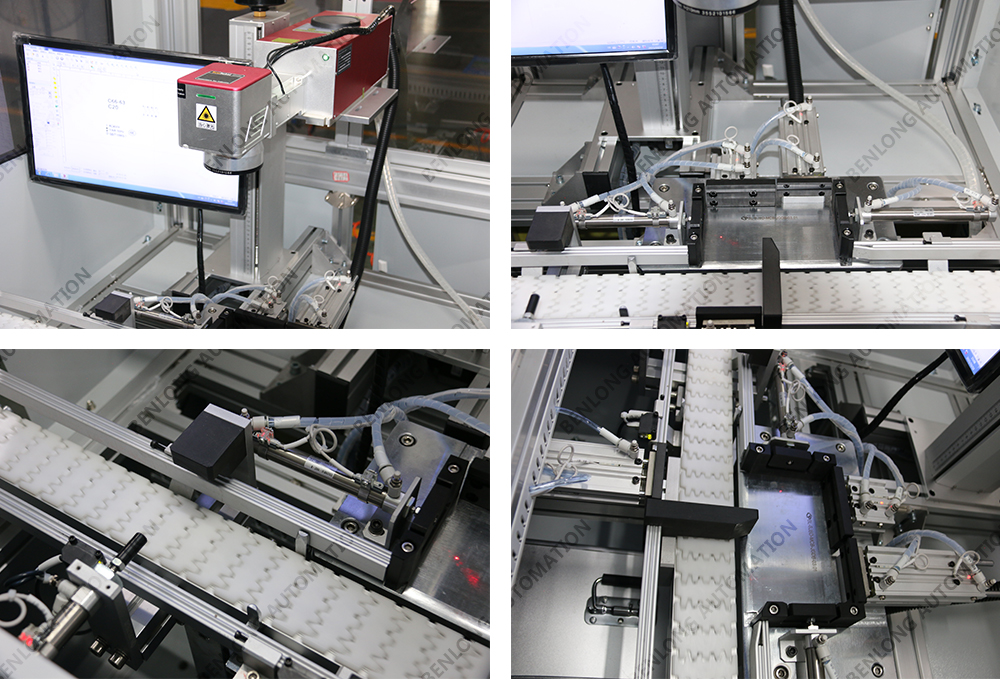

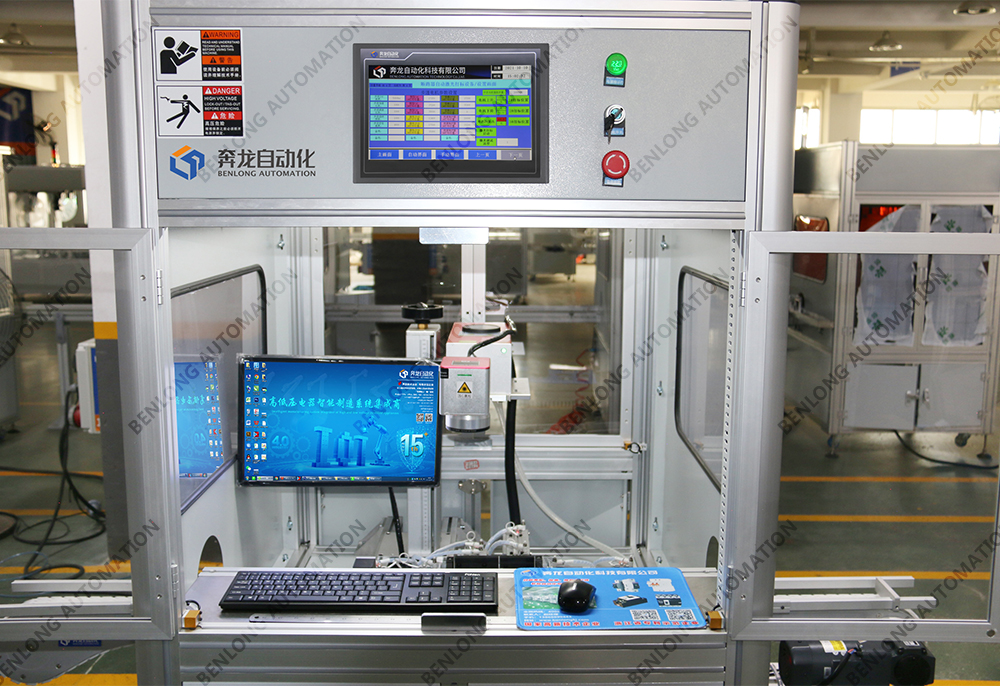

6、SPD automatic laser marking machine

1, equipment input voltage 220V/380V ± 10%, 50Hz; ± 1Hz;
2, equipment compatible with the number of poles: 1P, 2P, 3P, 4P, 5P
3, equipment production beat: 1 second / pole, 1.2 seconds / pole, 1.5 seconds / pole, 2 seconds / pole, 3 seconds / pole; five different specifications of the device.
4, the same shell frame products, different poles can be switched with one key; different shell frame products need to manually replace the mold or fixture.
5、Equipment fixture can be customized according to the product model.
6, laser parameters can be pre-stored in the control system, automatic access to marking; marking two-dimensional code parameters can be set arbitrarily, generally ≤ 24 bits.
7、Equipment with fault alarm, pressure monitoring and other alarm display functions.
8, Chinese and English version of the two operating systems.
9, all core parts are imported from Italy, Sweden, Germany, Japan, the United States, Taiwan and other countries and regions.
10, the equipment can be optional “intelligent energy analysis and energy saving management system” and “intelligent equipment service big data cloud platform” and other functions.
11、Independent independent intellectual property rights
