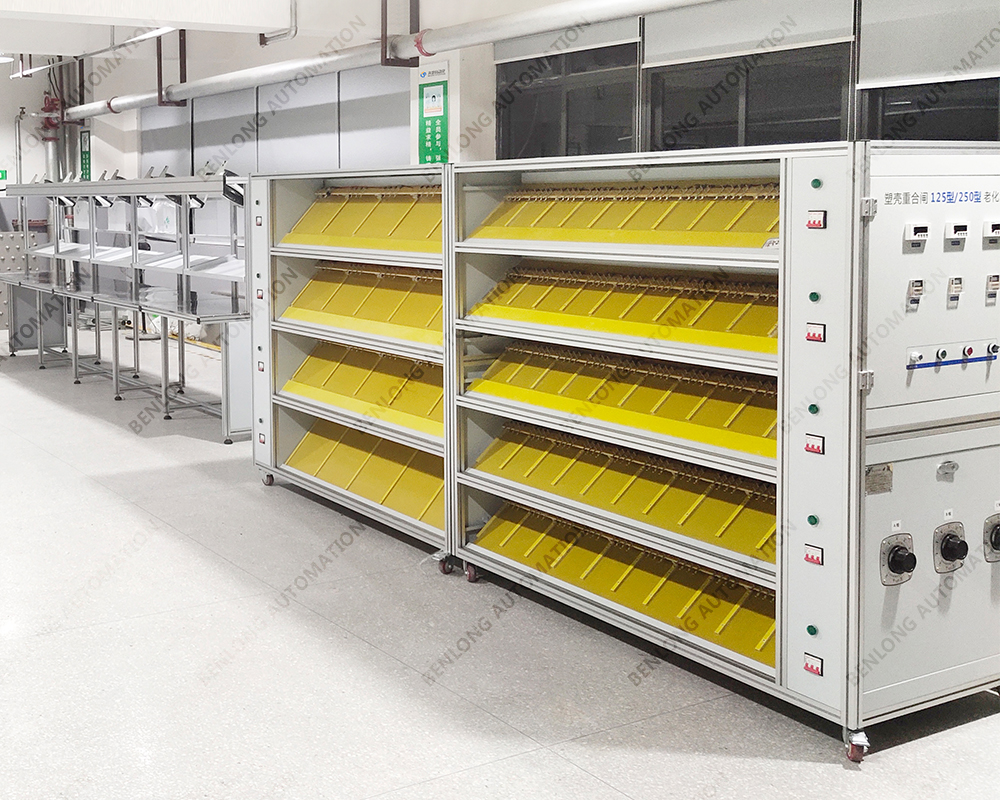

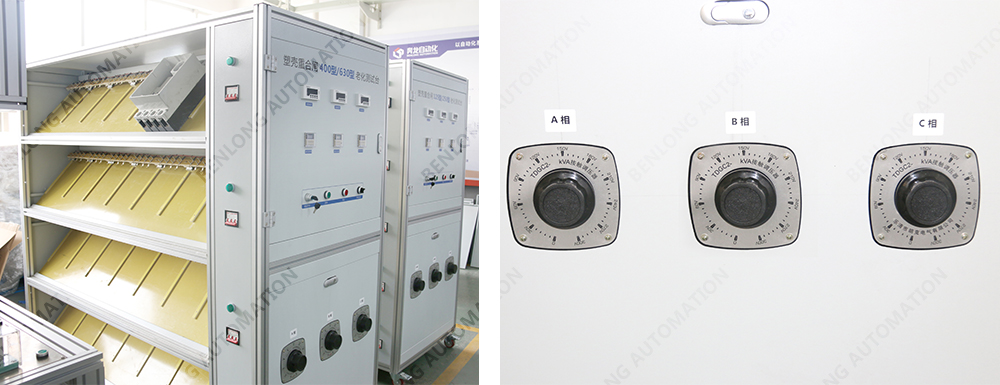

6、MCCB aging detection equipment

Short Description:

Aging test: The device can simulate the aging state of MCCB after long-term use, and conduct testing by continuously loading current and temperature changes. This helps to evaluate the stability and performance of MCCB after long-term use.
Aging characteristic analysis: The equipment can analyze the characteristics of MCCB during the aging process, including clutch operating time, disconnection time, thermal stability, and other aspects under rated current capacity. By analyzing these characteristics, we can understand the performance changes of MCCB during the aging process.
Aging fault simulation: The device can simulate possible faults that may occur during the aging process of MCCB, such as contact wear, fracture, etc. By simulating faults, it is possible to detect whether the various functions of MCCB are normal under aging conditions.
Fault detection and diagnosis: The equipment can detect possible faults that may occur during the aging process of MCCB and provide corresponding diagnostic information. This helps to promptly identify and resolve faults caused by MCCB aging.
Data recording and analysis: The equipment can record the data during the MCCB aging test process and analyze the test results. This helps to evaluate the aging status of MCCB and provide corresponding reports to assist users in maintenance and decision-making.

Send email to us

Photograph

Parameters

Video

Previous: 7、 MCCB instantaneous detection equipment

Next: 5、MCCB standard long delay detection equipment

1. Equipment input voltage 380V ± 10%, 50Hz; ± 1Hz;
2. Different shell shelf products and different models of products can be manually switched, one click switching, or code scanning switching; Switching between products of different specifications requires manual replacement/adjustment of molds or fixtures.
3. Testing methods: manual clamping and automatic detection.
4. The equipment test fixture can be customized according to the product model.
5. The equipment has alarm display functions such as fault alarm and pressure monitoring.
6. There are two operating systems available: Chinese and English.
7. All core accessories are imported from Italy, Sweden, Germany, Japan, the United States, Taiwan, China and other countries and regions.
8. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
9. Having independent and independent intellectual property rights.
