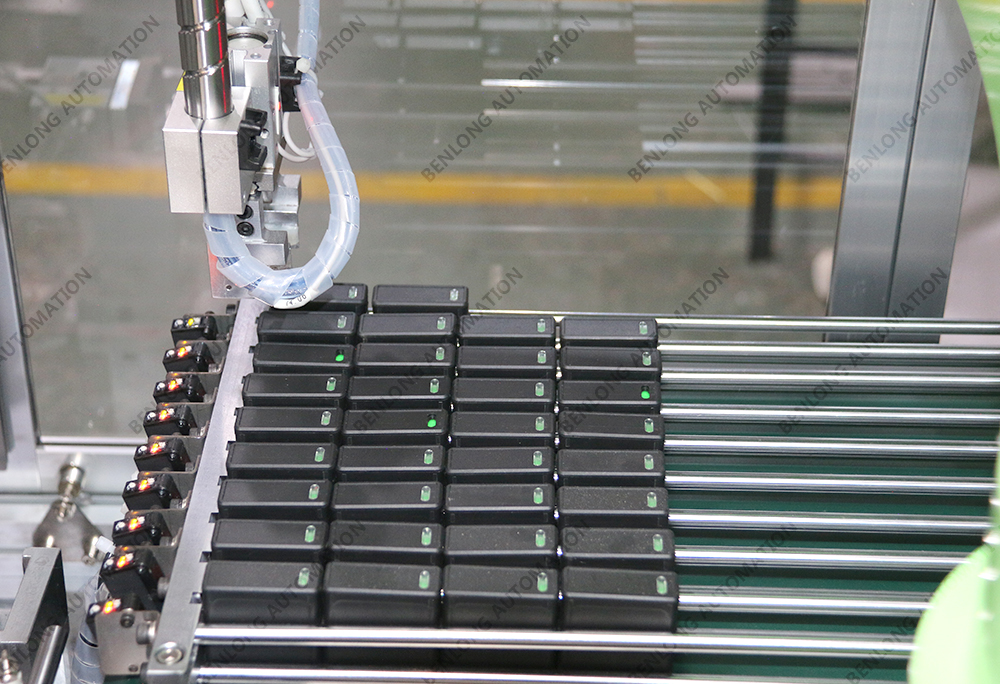

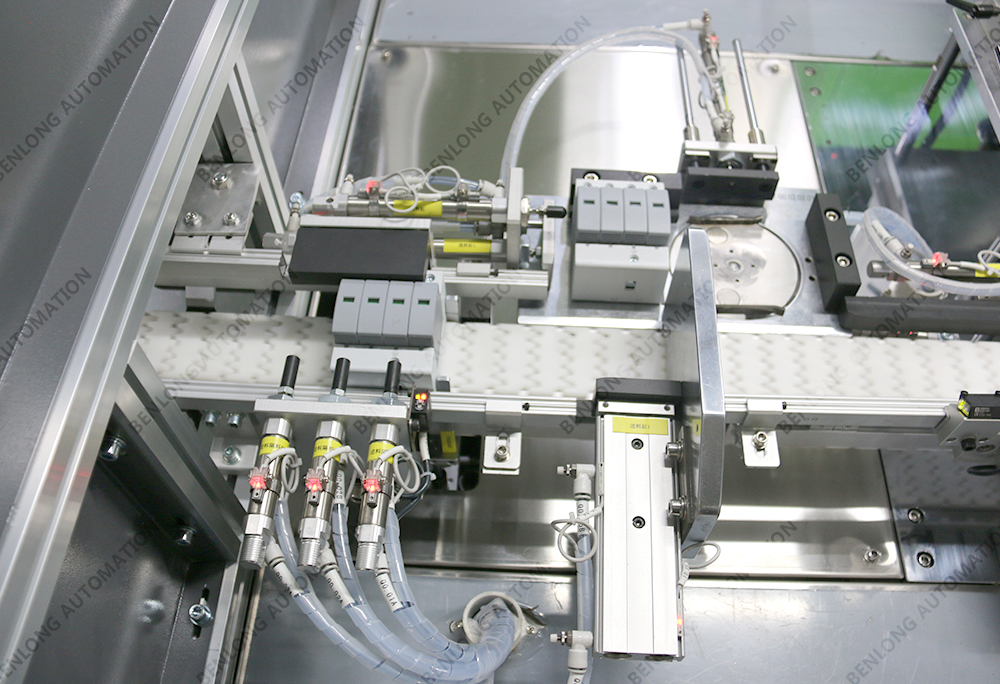

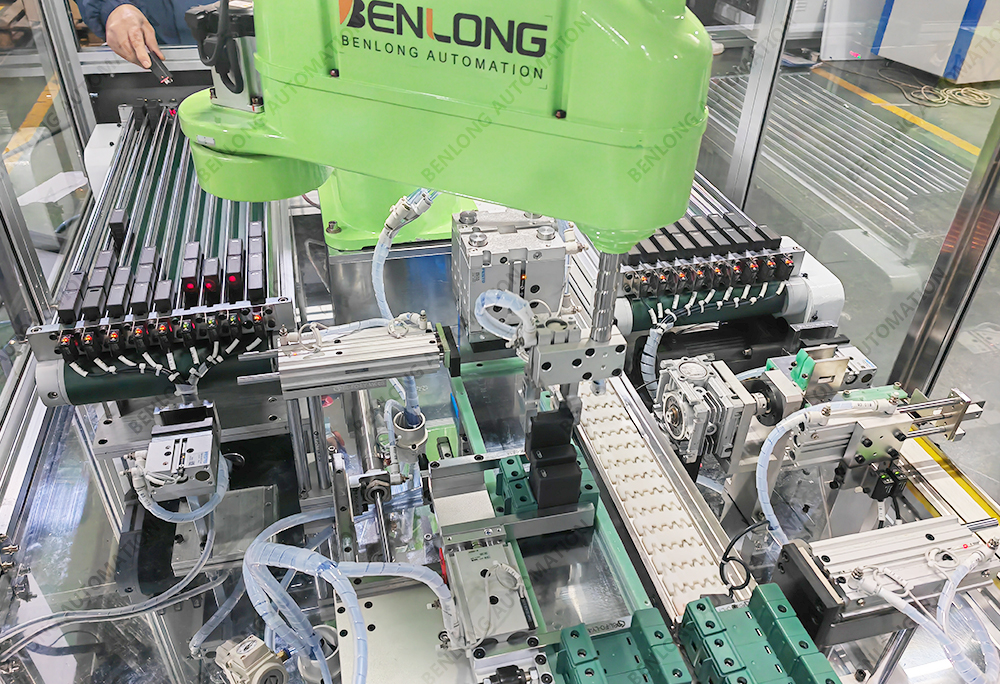

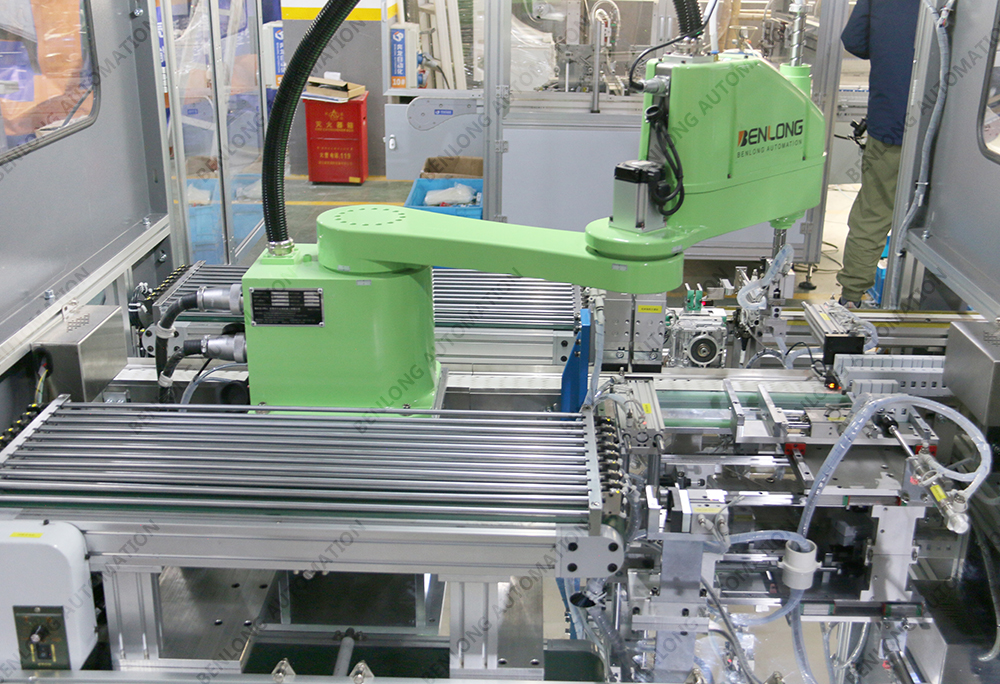

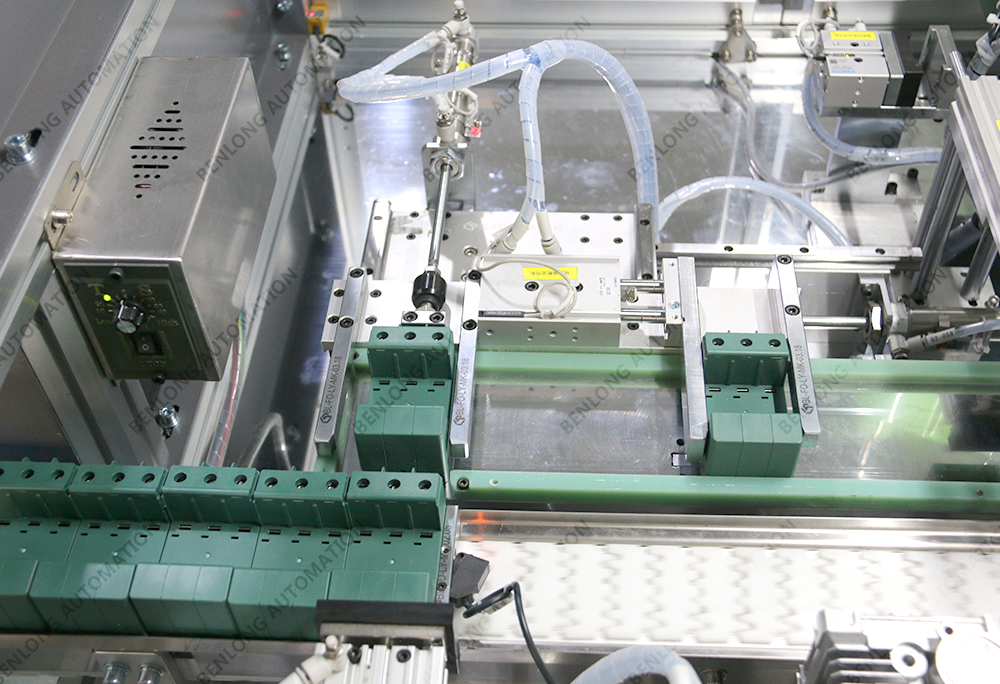

SPD Surge protector automatic assembly equipment

Short Description:

System characteristics:
. Automated assembly: adopting advanced automation technology, it can realize the fully automatic assembly of surge protector module, reduce manual intervention and improve the assembly efficiency and consistency.
. Flexibility: With modular design, it can support the assembly of surge protector modules of different specifications and models, and adapt to the diversified needs of the production line.
. High-precision assembly: the equipment is equipped with precise positioning system and sensors, which can accurately identify and locate each part of the surge protector module to ensure the precision and quality of assembly.
. Rapid assembly: the equipment adopts high-speed assembly technology, which can complete the assembly of surge protector modules in a short time and improve the production efficiency and capacity.
. Automatic monitoring: real-time monitoring of the assembly process ensures assembly quality and product consistency through fault detection and automatic correction functions.

Product Features:
. Automatic assembly: the equipment can automatically complete the identification, positioning and tightening of each component of the surge protector module, reducing manual operation and improving manufacturing efficiency and accuracy.
. Quality Inspection: The equipment has assembly quality inspection function, which can monitor the key parameters and indexes in the assembly process, detect problems in time and deal with them accordingly to ensure product quality.
. Data Traceability: The equipment is equipped with data recording and management system, which can record the key data in the assembly process and trace and analyze them to provide the basis for the solution of quality problems.
. Abnormal Alarm: If there is any assembly error or failure during the assembly process, the equipment can automatically issue an alarm and stop running to ensure the safety and stability of the production process.
. Automatic adjustment: with automatic adjustment function, it can automatically adjust the assembly process and parameters according to the size and requirements of different products to improve the assembly quality and efficiency.

Send email to us

Photograph

Parameters

Video

Previous: SPD Surge protector automatic side pad printing equipment

Next: MES Execution System A

1, equipment input voltage 220V ± 10%, 50Hz; ± 1Hz;
2, equipment compatible poles: 1P, 2P, 3P, 4P, 1P + module, 2P + module, 3P + module, 4P + module.
3, equipment production beat: 1 second / pole, 1.2 seconds / pole, 1.5 seconds / pole, 2 seconds / pole, 3 seconds / pole; five different specifications of equipment.
4, the same shell frame products, different poles can be switched by one key or sweep code switching; switching products need to manually replace the mold or fixture.
5、Assembly mode: manual assembly, automatic assembly can be optional.
6、Equipment fixture can be customized according to the product model.
7、Equipment with fault alarm, pressure monitoring and other alarm display function.
8, Chinese and English version of the two operating systems.
All core parts are imported from Italy, Sweden, Germany, Japan, the United States, Taiwan and other countries and regions.
10、Equipment can be equipped with optional functions such as “Intelligent Energy Analysis and Energy Saving Management System” and “Intelligent Equipment Service Big Data Cloud Platform”.
11、It has independent independent intellectual property rights.
