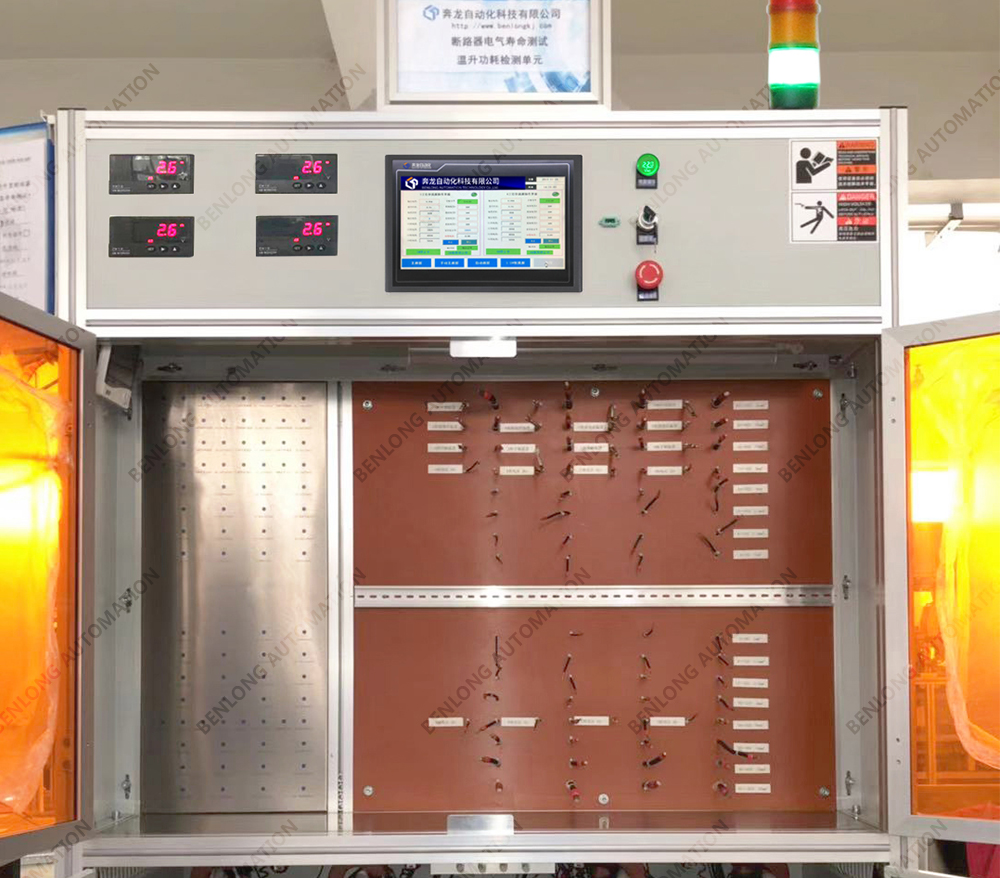

17、MCB temperature rise and power consumption detection equipment

Short Description:

Temperature rise measurement: The equipment can measure the temperature rise of MCB under normal operating conditions. By installing a temperature sensor on the MCB, it is possible to monitor the heating situation of the MCB in real time under normal load conditions, thereby evaluating whether its temperature rise is within the specified range.
Power consumption measurement: The device is capable of measuring the power consumption of MCBs in their working state. By using current and voltage sensors, the current and voltage values of the MCB can be monitored in real-time, and then the power consumption value can be calculated to evaluate its energy efficiency and consumption situation.
Temperature control and monitoring: The equipment is equipped with a temperature control system that can control the temperature of the testing environment and monitor temperature changes in real-time through temperature sensors, ensuring the stability and accuracy of the testing environment.
Data collection and analysis: The device can collect and record temperature rise and power consumption data, providing reliable data support. Data can be analyzed and compared to evaluate the performance and quality of MCBs.
Result display and report generation: The device can display the test results of temperature rise and power consumption, and generate detailed test reports. The report includes performance data, temperature rise and power consumption of MCB, as well as analysis and evaluation of the results.

Send email to us

Photograph

Parameters

Video

Previous: 18、MCB high and low temperature detection equipment

Next: 16、MCB Electrical Life Testing Equipment

1. Equipment input voltage 380V ± 10%, 50Hz; ± 1Hz;
2. Different shell shelf products and different models of products can be manually switched, one click switching, or code scanning switching; Switching between products of different specifications requires manual replacement/adjustment of molds or fixtures.
3. Testing methods: manual clamping and automatic detection.
4. The equipment test fixture can be customized according to the product model.
5. The equipment has alarm display functions such as fault alarm and pressure monitoring.
6. There are two operating systems available: Chinese and English.
7. All core accessories are imported from Italy, Sweden, Germany, Japan, the United States, Taiwan, China and other countries and regions.
8. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
9. Having independent and independent intellectual property rights.
